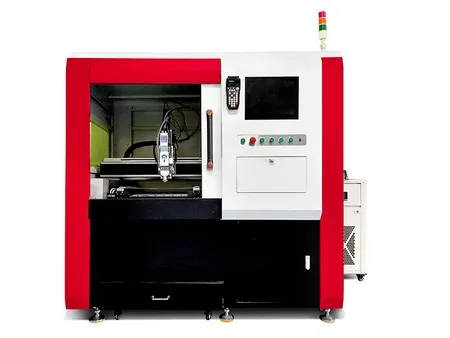

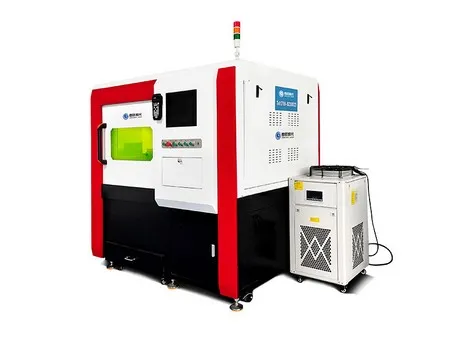

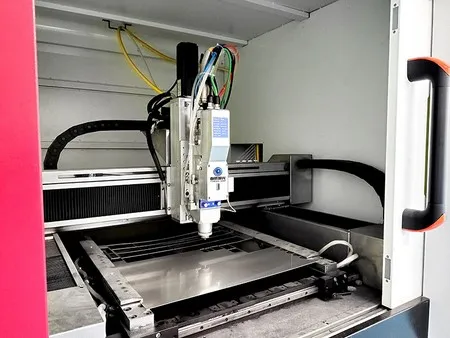

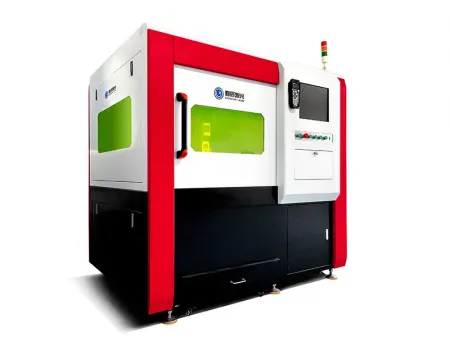

Laser cutting technology is widely used in industries like automotive, aerospace, and manufacturing for its ability to produce precise and clean cuts on various materials, including stainless steel, carbon steel, and aluminum sheets. Our precision fiber laser cutter is designed specifically for metal sheet cutting. It features imported fiber lasers, high-quality cutting heads, and precise rotary servo motors. Combined with professional laser cutting control software and an automatic focusing system, it ensures accurate and reliable cuts. The non-contact processing method prevents mechanical stress and deformation.

Cutting accuracy: ±0.03mm
Cutting area: 300*300mm/400*600mm/600*600mm (optional)
Cutting thickness: 0-18mm
Applications

Our fiber laser cutter is highly versatile and can be used in various industries. It is ideal for sheet metal cutting, aerospace, electronics, electrical appliances, subway parts, automotive, machinery, precision components, shipbuilding, metallurgical equipment, elevators, household appliances, craft gifts, tool manufacturing, decoration, advertising, and external metal processing.

Features
  • Fast cutting speeds with precise and clean results
  • Narrow kerfs and smooth cutting surfaces that do not damage the workpiece
  • Capable of handling different shapes and material hardness
  • Suitable for both metal and non-metal materials
  • Reduces mold investment and material usage, leading to cost savings
  • Easy and safe to operate with stable performance, enhancing the speed of new product development and offering wide adaptability
Specifications
Model CC-LCM-500W CC-LCM-1000W CC-LCM-2000W CC-LCM-3000W
Laser power 500W 1000W 2000W 3000W
Laser wavelength 1064nm
Repeat accuracy ±0.01mm
Cutting accuracy ±0.03mm
Cutting area 300*300mm/400*600mm/600*600mm (optional)
Cutting thickness of carbon steel ≤3 ≤8 ≤16 ≤18
Cutting thickness of stainless steel ≤3 ≤5 ≤7 ≤8
Cutting thickness of aluminum ≤2 ≤3 ≤6 ≤6
Power supply AC200-240V, 50/60Hz, single-phase three-wire
Machine power 4kW 4kW 10kW 12kW
Cooling method Water cooling

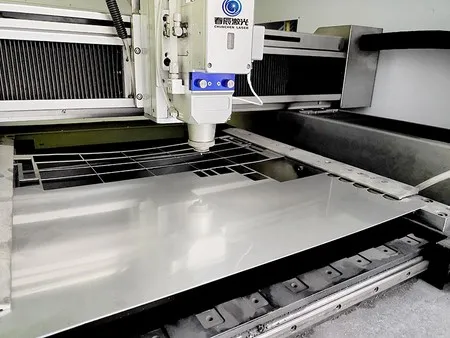

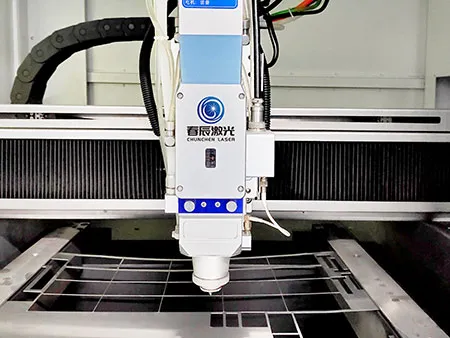

Details
FAQs

For engraving tasks, laser power between 25 and 80 watts is generally effective. For cutting or high-speed applications, it's best to use a laser with more than 80 watts of power to achieve optimal results.

The accuracy of a laser cutting machine depends on several factors. Equipment-related factors include the precision of the mechanical system, stability of the worktable, and quality of the laser beam. Material-related factors include the physical and chemical properties of the material being processed, as well as its reflectivity and consistency.
