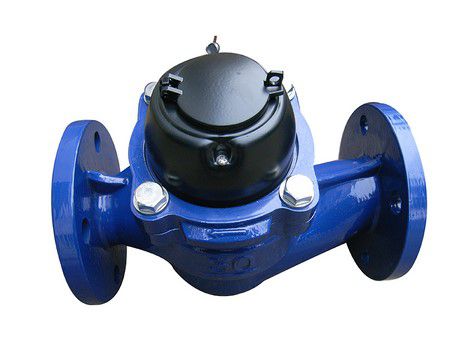

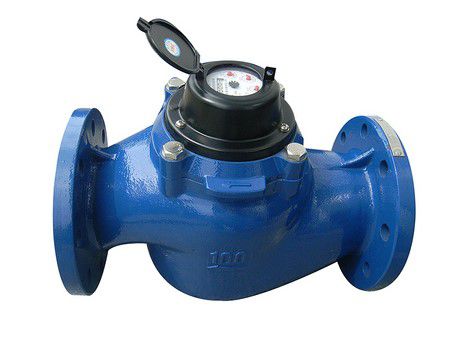

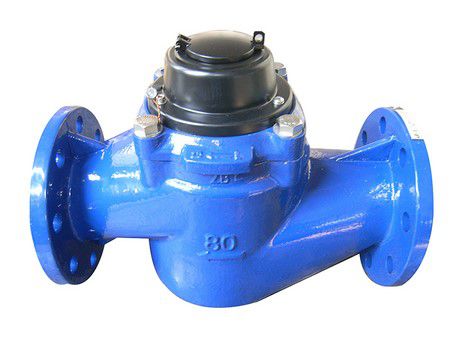

Vertical Woltman Helix Water Meter
Request a Quote
Bulk water meter with dry dial
Stepping away from the conventional, our Woltman helix water meter with vertical installation brings a fresh perspective to large-diameter pipeline metering. This meter is known for its dynamic flow handling and minimal pressure impact. When water courses through this meter, it drives the uniquely shaped helical impeller in an axial flow, converting the water's velocity into a quantifiable volume displayed on the meter.
Applications
- From the kitchen to the bathroom, Woltman helix water meters are ideal for metering household water usage.
- Tracks water flow in commercial establishments and light industrial facilities.
- These water meters are a reliable choice for water measurement in schools, hospitals, and other public institutions.
Specifications
Nominal diameter | Overload flowrate Q4 | Permanent flowrate Q3 | Q3/Q1 | Q2/Q1 | Transitional flowrate Q2 | Minimal flowrate Q1 | Maximum reading | Resolution of reading | ||
P type | M type | |||||||||
mm | m³/h | m³ | ||||||||
40 50 65 | 50 | 40 | 160 | 1.6 | 0.4 | 0.25 | 999,999 | 0.0005 | 0.0002 | |
6.3 | 1.6 | |||||||||
200 | 1.6 | 0.32 | 0.2 | |||||||
6.3 | 1.26 | |||||||||
80 | 78.8 | 63 | 160 | 1.6 | 0.64 | 0.4 | ||||
6.3 | 2.5 | |||||||||
200 | 1.6 | 0.5 | 0.32 | |||||||
6.3 | 2 | |||||||||
100 125 | 125 | 100 | 160 | 1.6 | 1 | 0.63 | ||||
6.3 | 3.97 | |||||||||
200 | 1.6 | 0.8 | 0.5 | |||||||
6.3 | 3.2 | |||||||||
150 | 313 | 250 | 160 | 1.6 | 2.56 | 1.6 | ||||
6.3 | 10 | |||||||||
200 | 1.6 | 2 | 1.25 | |||||||
6.3 | 7.9 | |||||||||
200 | 500 | 400 | 160 | 1.6 | 4 | 2.5 | ||||
6.3 | 16 | |||||||||
200 | 1.6 | 3.2 | 2 | |||||||
6.3 | 12.6 |

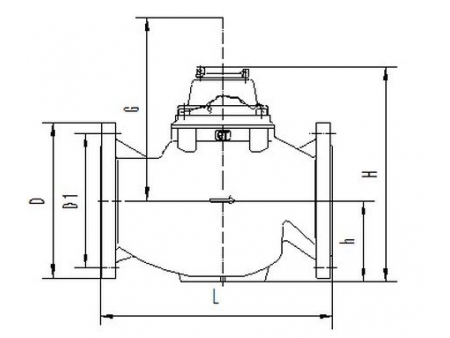

Dimensions
Model | Length | Height | Connecting flange GB/T17241.6-1998 | ||||
L | H | h | G | External diameter of flange D | Bolt circle diameter D1 | Connection bolt n-M | |
mm | |||||||
40 | 280 | 228 | 85 | 268 | 150 | 110 | 4-M16 |
245 | 218 | 75 | 260 | Threaded connection G2B | |||
50 | 280 | 228 | 85 | 268 | 165 | 125 | 4-M16 |
65 | 200 | 235 | 85 | 280 | 185 | 145 | 4-M16 |
80S | 225 | 282 | 103 | 344 | 200 | 160 | 8-M16 |
80 | 370 | ||||||
100S | 250 | 303 | 116 | 350 | 220 | 180 | 8-M16 |
100 | 370 | ||||||
125 | 250 | 302 | 118 | 365 | 250 | 210 | 8-M16 |
150 | 500 | 430 | 155 | 565 | 285 | 240 | 8-M20 |
200 | 500 | 505 | 190 | 384 | 340 | 295 | 8-M20 |
12-M20 (MAP16) |
Working Conditions
- Suitable for cold water ≤50℃
- Water pressure ≤1MPa, 1.6MPa
- Upstream & downstream flow field sensitivity class: UO DO.
Features
- Vertical Woltman helix water meter reduces friction and enhances lifespan.
- A stainless steel strainer is built into the meter, saving the cost and hassle of external filters.
- Capable of handling a variety of flow rates, making it versatile for multiple applications.
- Equipped to adapt to modern metering needs with options for remote data transmission.
