CNC Milling Machine, Series EMC-1280
Request a Quote
This CNC milling machine has only one spindle and two optional spindle speeds of 18000rpm and 24000rpm for customers to choose from, and is used to carry out drilling and milling processes. The workbench is capable of loading up to 900kg at one time.
Parameters of CNC milling machine| Model | EMC-650 | |
| Stroke | X-axis travel (mm) Y-axis travel (mm) Z-axis travel (mm) | 500/600/230 |
| Distance from spindle nose to table center (mm) | 120-370 | |
| Worktable | Worktable area (mm) | 650x520 |
| Maximum weight on table (kg) | 500 | |
| T-slot (width – number of slot x spacing) （mm） | 5-14 | |
| Spindle | Standard spindle speed （r.p.m） | 18000/24000/30000 |
| Spindle taper | ER25/ER32/BT30 | |
| Spindle motor power (KW) | 4.5/5.5 | |
| Feed | Triaxial rapid feed (mm/min) | 18000 |
| Triaxial cutting feed (mm/min) | 1-6000 | |
| Others | Positioning accuracy (mm) | ±0.005/300 |
| Repeatability (mm) | ±0.003/300 | |
| Machine weight (kg) | 2800 | |
| Machine dimension (mm) | 1850x2050x2400 | |

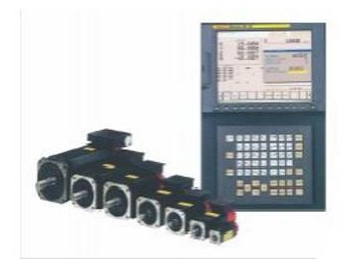

- Control system and motor

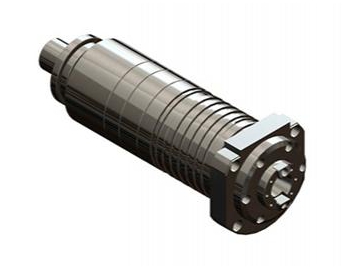

- Direct drive motor spindle

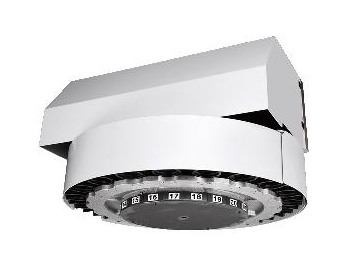

- Turntable type tool magazine, capable of holding 12 tools

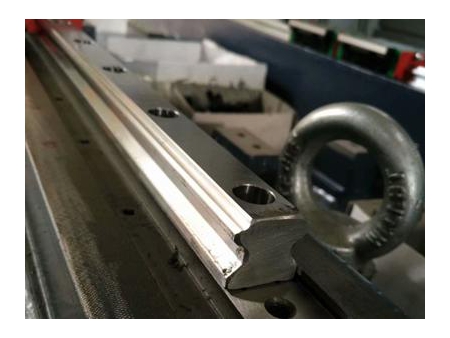

- Linear guideway runs in a stable manner with a high machining precision
