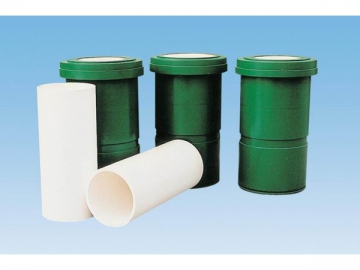

Ceramic Liner
Ceramic Liner

Ceramic Liner

Ceramic Liner



Applications

The ceramic liner is used as a kind of mud pump fluid end parts in the oil drilling industry.



Features

Compared with the metal liner, the ceramic liner is wear and corrosion resistant and has extended working life. The ceramic liner helps reduce drilling cost and labor intensity. Made of internationally advanced, new material toughened zirconium oxide, the liner provides fracture toughness of K10-15Mpa (10 times that of the traditional one), and bending strength of σ600-800Mpa. The ceramic liner has excellent wear and corrosion resisting properties, with the Weber number being m18 and the elastic modulus of E200Gpa.



Advantages

The ceramic liner is the best choice for high pressure mud pumps. It is manufactured strictly in accordance with specific technical standards by use of advanced processing techniques. The ceramic liner comes in various specifications, which come in Φ150180×310440mm.

Thanks for visiting Rundong website. We are a China-based ceramic liner manufacturer, with over 40 years of production experience. We manufacture and market high cementing tool, fishing tool, and many other products. Rundong products are very popular with customers both in the domestic and overseas markets, due to superior quality and affordable prices. OEM service is also available, upon request. If you are interested in our products, please see our webpage for more information. The staff at Rundong looks forward to working with you in the near future.
