Cuplock Horizontal

Request a Quote

View All: http://scaffold-equipment.com/2-2-cuplock-horizontal.html

With a diverse range of scaffolding accessories available, we offer cuplock scaffolding solutions adapted to your construction and maintenance projects

Scaffold Cuplock System

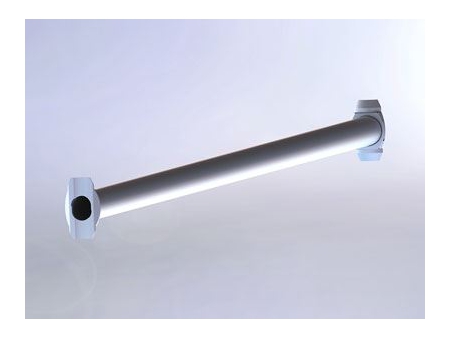

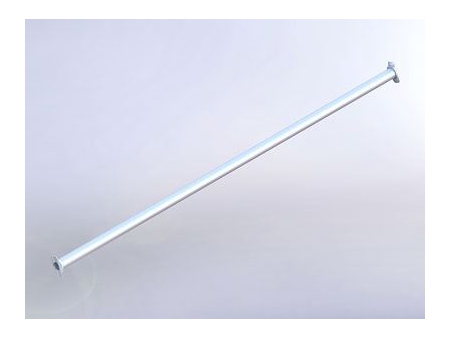

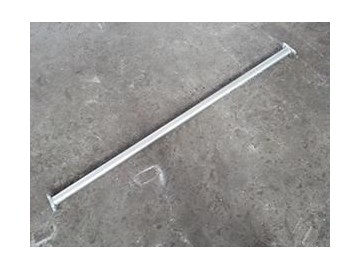

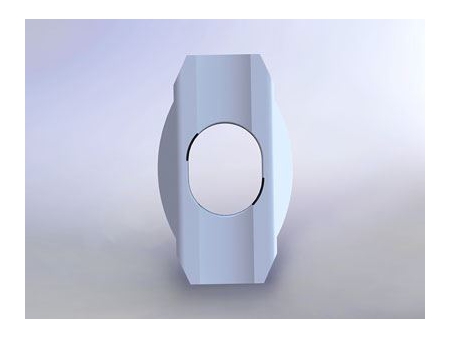

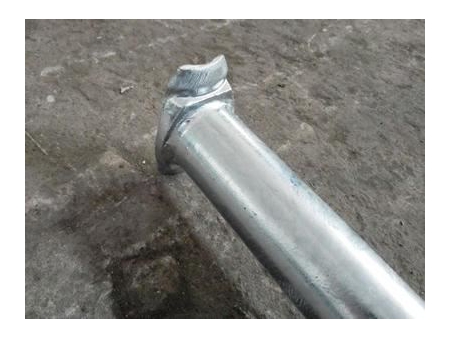

The cuplock horizontal plays the role of support in the complete scaffolding cuplock system. The shorter horizontal can be used as the horizontal support for planks or as the guardrail. Insert the both ledger blade ends of cuplock horizontal into the bottom cups of cuplock standards, then press and rotate the top cups, fixing them with a stop lock. The cuplock horizontal can be conveniently connected to the cuplock standard, and forming the whole scaffolding cuplock system with a cuplock horizontal and diagonal. The horizontal is hot-dip galvanized.

Parameters

Item No.	Description	Weight (KGS)	Weight (LBS)	Package Unit (Pcs)
CH100	Horizontal 10'/3.05m	11.2	24.67	1000
CH90	Horizontal 9'/2.74m	10.09	22.22	1000
CH80	Horizontal 8'/2.44m	9.02	19.87	1000
CH70	Horizontal 7'/2.13m	7.92	17.44	1000
CH60	Horizontal 6'/1.83m	7.13	15.7	1000
CH52	Horizontal 5'2"/1.57m	7.02	15.46	1000
CH50	Horizontal 5'/1.52m	5.96	13.13	1000
CH40	Horizontal 4'/1.22m	4.82	10.62	1000
CH36	Horizontal 3'6"/1.07m	4.24	9.34	1000
CH30	Horizontal 3'/0.91m	3.72	8.19	1000
CH211	Horizontal 2'7"/0.79m	3.18	7	1000
CH27	Horizontal 1'10"/0.56m	2.32	5.11	1000
