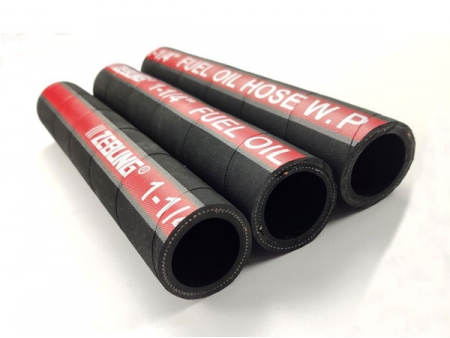

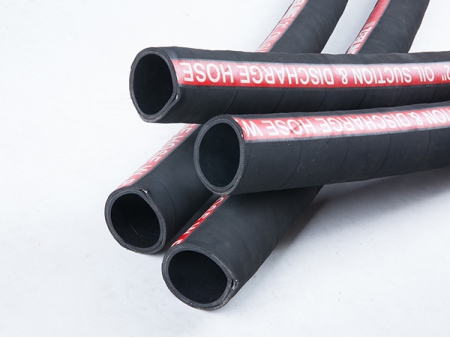

Hydraulic Oil Suction and Discharge Hose

Name: Hydraulic Oil Suction and Discharge Hose
Brand: ETW International
SKU: 2-3-2-rubber-oil-suction-and-delivery-hose-c5565j13134
Availability: InStock

Request a Quote

Website: https://zebungmarinehose.com/2-3-2-rubber-oil-suction-and-delivery-hose.html

Features

Good oil mist resistance: The hose is resistant to oil mist, ensuring effective performance in suction and delivery applications involving petroleum products.
High flexibility: Designed with flexibility in mind, the hose offers ease of handling and maneuverability in various industrial settings.
Long service life: Engineered for durability, the hose boasts a prolonged service life, reducing the need for frequent replacements.
Specifically designed for aromatic content: Specially crafted for petroleum products with aromatic content up to 20%, ensuring reliable performance in such applications.

Technical Parameters

Item Code	Inner Diameter		Outer Diameter	Working Pressure		Burst Pressure		Weight	Max. Length
Item Code	mm	inch	mm	bar	psi	bar	psi	kg/m	m
HOSD019-150	19	3/4"	30.8	10	150	30	450	0.72	61
HOSD025-150	25	1"	36.8	10	150	30	450	0.89	61
HOSD032-150	32	1-1/4"	44.8	10	150	30	450	1.19	61
HOSD038-150	38	1-1/2"	51.4	10	150	30	450	1.48	61
HOSD045-150	45	1-3/4"	58.4	10	150	30	450	1.71	61
HOSD051-150	51	2"	64.4	10	150	30	450	1.91	61
HOSD064-150	64	2-1/2"	78.4	10	150	30	450	2.48	61
HOSD076-150	76	3"	90.8	10	150	30	450	3.00	61
HOSD089-150	89	3-1/2"	106.2	10	150	30	450	4.33	61
HOSD102-150	102	4"	119.2	10	150	30	450	4.90	61
HOSD127-150	127	5"	146.2	10	150	30	450	6.57	61
HOSD152-150	152	6"	171.6	10	150	30	450	7.94	61
HOSD203-150	203	8"	224.8	10	150	30	450	12.07	40
HOSD254-150	254	10"	280.8	10	150	30	450	19.75	12
HOSD304-150	304	12"	334.2	10	150	30	450	27.68	12
HOSD019-300	19	3/4"	30.8	20	300	60	900	0.72	61
HOSD025-300	25	1"	36.8	20	300	60	900	0.89	61
HOSD032-300	32	1-1/4"	47.2	20	300	60	900	1.45	61
HOSD038-300	38	1-1/2"	53.8	20	300	60	900	1.79	61
HOSD045-300	45	1-3/4"	60.8	20	300	60	900	2.05	61
HOSD051-300	51	2"	66.8	20	300	60	900	2.29	61
HOSD064-300	64	2-1/2"	81.2	20	300	60	900	2.95	61
HOSD076-300	76	3"	94	20	300	60	900	3.63	61
HOSD089-300	89	3-1/2"	107.8	20	300	60	900	4.58	61
HOSD102-300	102	4"	120.8	20	300	60	900	5.18	61
HOSD127-300	127	5"	149.8	20	300	60	900	7.73	61
HOSD152-300	152	6"	175.2	20	300	60	900	9.34	61
HOSD203-300	203	8"	229.6	20	300	60	900	15.02	40
HOSD254-300	254	10"	288.8	20	300	60	900	25.46	12
HOSD304-300	304	12"	339.8	20	300	60	900	32.20	12

Note: specifications, pressures, colors and other parameters can be customized according to customers' requirements.
