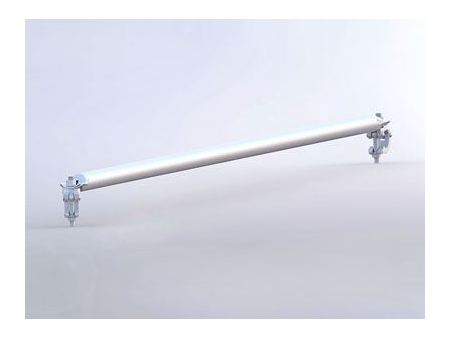

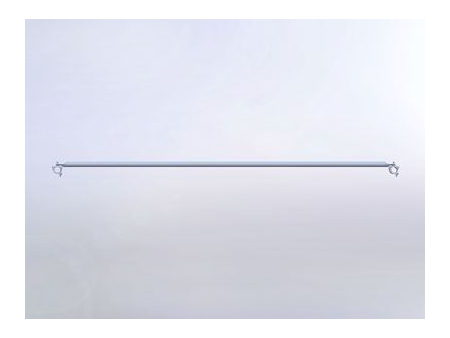

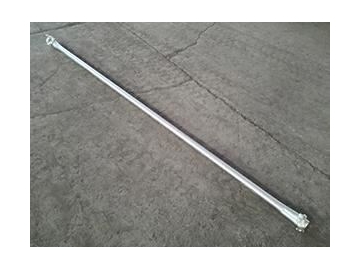

Cuplock Diagonal in Scaffolding Cuplock System
Cuplock Diagonal in Scaffolding Cuplock System
Cuplock Diagonal in Scaffolding Cuplock System

Cuplock Diagonal in Scaffolding Cuplock System

Description

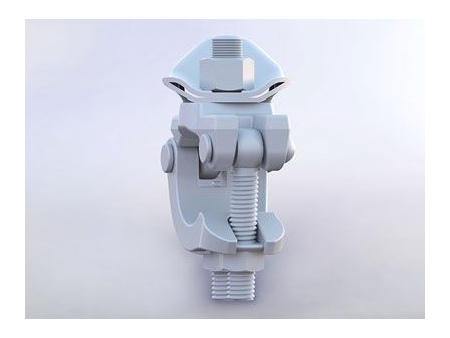

Insert the swivel ledger blades at both ends of the cuplock diagonal into the bottom cup of cuplock standard. Press and rotate the top cups, and use the stop pin to fix the top cups. Connecting the cuplock diagonal with the vertical cuplock pole is convenient, forming a complete cuplock system with the cuplock standard and horizontal components. The diagonal brace provides reinforcement and it can be used as a handrail. The cuplock diagonal is hot-dip galvanized.

Material

Q235 steel

Parameters
Item No. Description Weight (KGS) Weight (LBS)

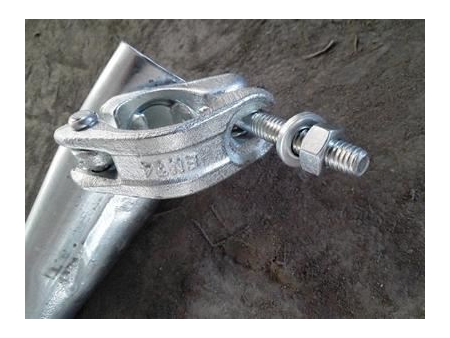

CCB40 Cuplock Swivel Clamp Brace 4'/1.22m 7.40 16.30
CCB50 Cuplock Swivel Clamp Brace 5'/1.52m 8.50 18.72
CCB70 Cuplock Swivel Clamp Brace 7'/2.13m 10.06 22.16
CCB80 Cuplock Swivel Clamp Brace 8'/2.44m 10.40 22.91
CCB82 Cuplock Swivel Clamp Brace 8'2"/2.50m 10.60 23.35
CCB90 Cuplock Swivel Clamp Brace 9'/2.74m 11.20 24.67
CCB100 Cuplock Swivel Clamp Brace 10'/3.05m 11.80 25.99
