Curved Glass
Curved Glass is an essential element of modern, free-form architecture. To meet the current market requirements NorthGlass Curved Glass is produced by using three different production processes. This enables NorthGlass to produce curved glass of the highest quality and best safety characteristics for each individual project.
Depending on the glass build up, coatings and bending geometry, dimensions of 3.6 m x 18.0 m are achievable.
FT or HS: cylindrical curved, heat strengthened glass.
AN: annealed, gravity bent glass.
CB: cold bend glass which is bent during the lamination process.
NorthGlass Laminated Glass can be laminated using float glass, heat strengthened or fully toughened glass. With a maximum dimension of 3.6 m x 18.0 m or 4.0 m x 8.0 m, NorthGlass provides the largest laminated glass units in the world.

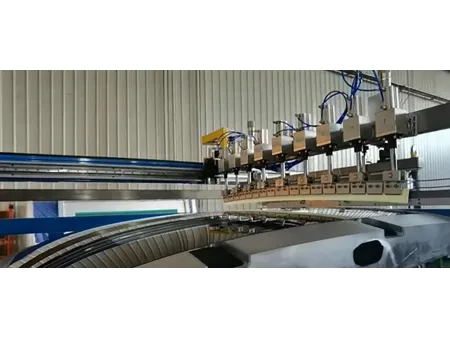

- Bending & Tempering with Flexible Rollers: 3600 ⌒ mm×18000mm, 2440 ⌒ mm×5000mm (concave)
- Bending & Tempering with Rigid Rollers: 8000 ⌒ mm×4000mm, 2500 ⌒ mmx4000mm (concave) Minimum Size: 600 ⌒ mm×400mm
- Minimum radius of curvature: 450mm
- Thickness: 4mm-19mm
- EXPO Shiliupu Pier, Guangzhou Opera House
- National Aquatics Center-Water Cube
- Shanghai Culture Center, Beijing Junhao Center Square
- OPPO Flagship Store in Beijing
