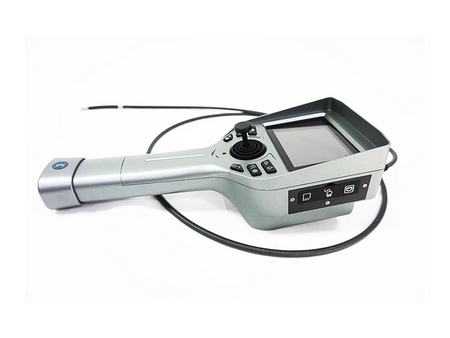

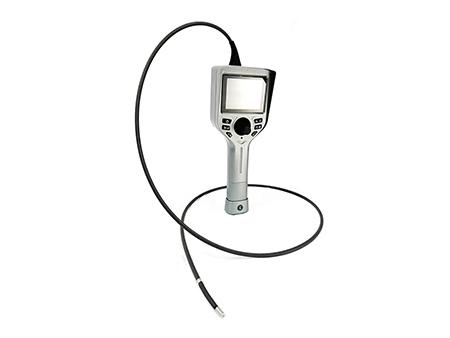

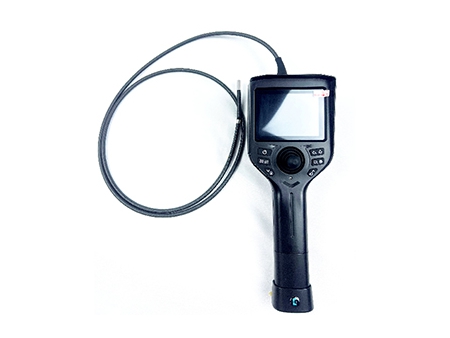

ES60-IR Infrared Night Vision Borescope/Endoscope
Request a Quote
- Portable Design: Integrated handheld design
- Display: 3.5-inch HD LCD touchscreen

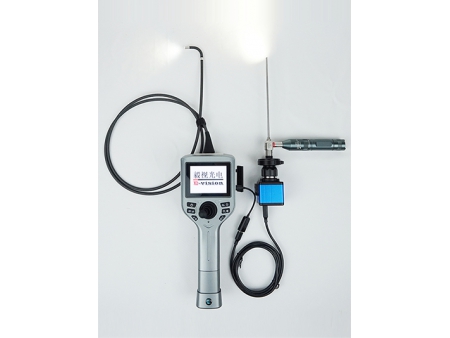

- Lighting Source: Supports 6.0mm probe with 940nm IR & white dual light; 3.9mm IR night vision probe with a range up to 10 meters.
- Resolution: Up to HD 1 mega-pixel
- Battery Life: 8-hour
- Articulation: 360°joystick articulation
- View Direction: Supports forward/side/multi-view camera
- External Input: Supports external USB camera input
- Application: Public security; military, police and firefighting industries.
Probe Specifications
| Probe diameter | View angle | Pixel | Field of view (FOV) | Depth of field (DOF) | Effective working length | Articulation | Light source |
| 1.2mm/1.5mm | Forward view | 160000 pixel | 120° | 5-100mm | 600mm-1m | No | Optical fiber |
| 2.0mm/2.4mm | Forward view | 160000 pixel / 1 megapixel | 120° | 5-100mm | 1m | 180° | Optical fiber |
| 2.8mm | Forward view | 160000 pixel / 1 megapixel | 120° | 5-100mm | 1-1.5m | 360° | Optical fiber |
| 3.9mm | Forward view /side view/dual view | 2 megapixel | 120° | 7-50mm/10-100mm/20mm-∞ | 1-3m | 360° | LED/optical fiber (optional) |
| 6.0mm | Forward view /side view/dual view | 2 megapixel | 90°/120° | 7-50mm/10-100mm/20mm-∞ | 1-3m | 360° | LED/optical fiber (optional) |
