HS160 - Large Size Compression Fitting ⌀75-90-110
Request a Quote
Honson HS160 brass compression flange fittings for PE pipes are designed according to DIN8076-1 for use on water distribution.

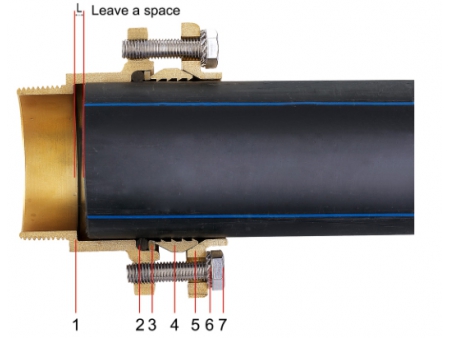

| Item | Description | Materials |
| 1 | Body | CW617N-4MS by hot forging |
| 2 | O-ring | EPDM |
| 3 | Washer Ring | A3 |
| 4 | Compression (C-Ring) | HPb57-3 |
| 5 | Nut | CW617N-4MS |
| 6 | Gasket | SS304 |
| 7 | Bolt | SS304 |
- Ideal for use in plumbing system
- Available from 75mm to 110mm.
- Adaptable for polyethylene pipes (PE) joint of low, medium and high density
- Body and nut made in hot forging brass according to UNE-EN12165.
- Min and max Temp: -10°C to 80°C
- Max Pressure PN: 16 bar (PN-16)
- Marked for full traceability
- Compliant with standard DIN8076-1
- Adaptable pipe: LDPE, MDPE, HDPE
- Surface treatment options: raw
- Max Pressure PN: 16 bar (PN-16)
- Fastening threads: ISO228/1
Structure
Assemble instruction
- Cut the pipe with the pipe cutter or the saw.
- Deburr the pipe with the file or the deflashing tool.
- Place the compression ring, the washer ring and the O-ring on the pipe with extremely smooth
- Insert the pipe fully into all accessories.
- Place the pipe with all the components inside the body until the pipe keeps fixed inside, ensuring that all of them have moved into its final position before tightening.
- Tighten the nut on the body with screw tightening.
Security rules
- Personnel who perform the work must be properly trained in the safe use of hand tools and be able to identify the hazards and risks associated with different assembly steps.
- Choose the right tool for each step.
- Ensure that the tools are of good quality and well maintained.
- Avoid environments that will make the assembly more difficult.
- Follow the assembly instructions in this document.
- Straight Coupling
- Elbow
- Tee
Large Size Brass Compression Straight Coupling
Equal Straight Coupling C×C, HS160-001
| SIZE | D | L |
| 75×75 | 76 | 81 |
| 90×90 | 91 | 90 |
| 110×110 | 111 | 110 |
Female Straight Coupling C×FI, HS160-002
| SIZE | D | G | L | L1 |
| 75×2 1/2''F | 76 | 2 1/2'' | 66 | 24 |
| 90×3''F | 91 | 3'' | 72 | 25 |
| 110×4''F | 111 | 4'' | 85.5 | 28 |
Male Straight Coupling C×MI, HS160-003
| SIZE | D | R | L | L1 |
| 75×2 1/2''M | 76 | 2 1/2'' | 67 | 24 |
| 90×3''M | 91 | 3'' | 72.5 | 25 |
| 110×4''M | 111 | 4'' | 85.5 | 28 |
Large Size Brass Compression Elbow
Equal Elbow C×C, HS160-004
| SIZE | D | L | H |
| 75×75 | 76 | 84 | 84 |
| 90×90 | 91 | 98.5 | 98.5 |
| 110×110 | 111 | 120 | 120 |
Female Elbow C×FI, HS160-005
| SIZE | D | G | L | H | H1 |
| 75×2 1/2''F | 76 | 2 1/2'' | 74 | 69 | 24 |
| 90×3''F | 91 | 3'' | 85.5 | 78 | 25 |
| 110×4''F | 111 | 4'' | 102 | 94 | 28 |
Male Elbow C×MI, HS160-006
| SIZE | D | R | L | H | H1 |
| 75×2 1/2''M | 76 | 2 1/2'' | 74 | 88 | 24 |
| 90×3''M | 91 | 3'' | 85.5 | 98 | 25 |
| 110×4''M | 111 | 4'' | 102 | 112 | 29 |
Large Size Brass Compression Tee
Equal Tee C×C×C, HS160-007
| SIZE | D | L | H |
| 75×75×75 | 76 | 168 | 84 |
| 90×90×90 | 91 | 197 | 98.5 |
| 110×110×110 | 111 | 240 | 120 |
Female Tee C×C×FI, HS160-008
| SIZE | D | G | L | H | H1 |
| 75×2 1/2''F | 76 | 2 1/2'' | 148 | 69 | 24 |
| 90×3''F | 91 | 3'' | 171 | 78 | 25 |
| 110×4''F | 111 | 4'' | 204 | 94 | 28 |
