Marine Loading Arm (Hydraulic Operation)
Operating method: hydraulically operated
Supporting structure: independent support, single or double arm
The marine loading arm allows for safe transportation of fluids between the terminal pipeline and the vessel’s pipeline. During the process of fluid transfer, the design of the loading arm allows it to accommodate the drift and movement of the tanker or ship within its predetermined range without damaging the equipment. In order to prevent drifting past the design range, a position monitoring system triggers audible and visual warnings; for added protection, an emergency release system can be installed. The emergency release system is triggered when the tanker exceeds the design range, effectively protecting the loading arm and the pipeline from an accidental damage. Once the emergency disengagement system is activated, the valves at both ends separate and close rapidly, ensuring minimal material leakage.

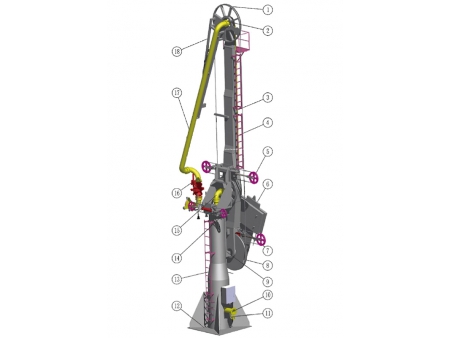

- Apex Sheave
- Apex Swivel Joint
- Inboard Arm
- Inboard Arm Support
- Inboard Arm Drive
- Counterweight
- Outboard Arm Drive
- Cable Sheave
- Locking Device
- Connection Flange
- Drain Nozzle
- Base Plate
- Riser
- Slewing Drive
- Removable Elbow
- Triple Swivel Assembly
- Emergency Release Coupler
- Outboard Arm
- Outboard Arm Support
- Nominal diameter: DN80-DN600 (3”-24”)
- Design pressure: -0.6~10MPa
- Design temperature: -196℃~ 250℃
- Pipeline material: carbon steel/stainless steel/PTFE lined low-temperature carbon steel
- Explosion-proof grade: ExdII BT4, Protection grade: IP65
- Hydraulic quick connect-disconnect coupler (QCDC)
- Emergency release coupling (ERC)
- Heat tracing and insulation
- Position monitoring system
- OCIMF: Design and Construction Specification for MLA
- BS EN 1474: 2008 Design & Testing of Marine Transfer Systems
- Shell DEP Standard: Amendments / Supplements of Design and Construction Specification for Marine Loading Arms.
