Scaffolding Double Ledger
Scaffolding Double Ledger
Scaffolding Double Ledger

Scaffolding Double Ledger

Description

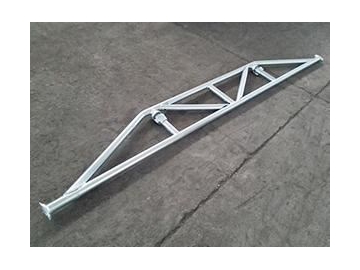

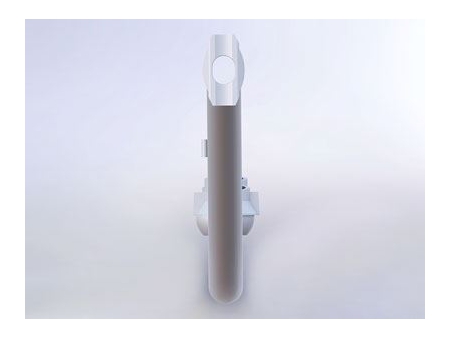

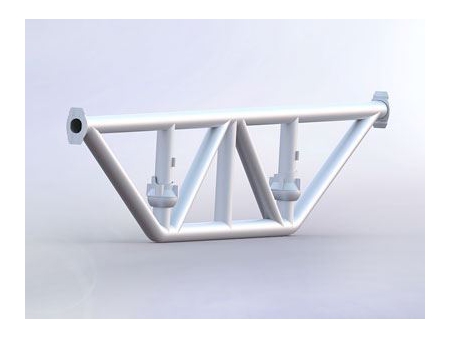

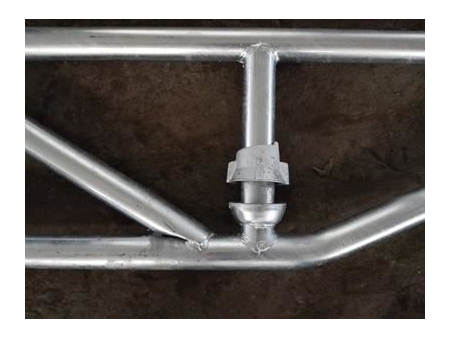

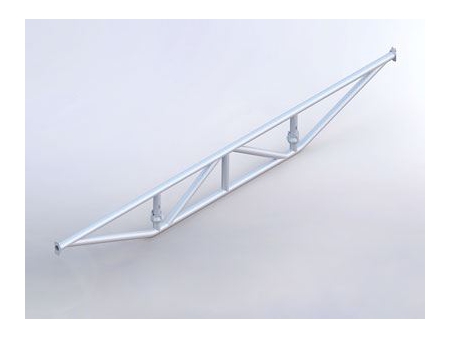

The scaffolding double ledger can be easily connected to the cuplock standard and perfectly matches with the standard, horizontal, diagonal brace and other parts to form the complete cuplock system. The double ledger offers greater load bearing capacity for the whole cuplock system to enable safer construction. Our double ledgers are hot-dip galvanized.

Material

Q235 steel or Q345 steel.

Parameters
Item No. Description Weight (KGS) Weight (LBS)
CT70 Cuplock Truss 7'/2.13m 16.00 35.24
CT80 Cuplock Truss 8'/2.44m 24.40 53.74
CT90 Cuplock Truss 9'/2.74m 27.50 60.57
CT100 Cuplock Truss 10'/3.05m 30.40 66.96
CT120 Cuplock Truss 12'/3.66m 36.00 79.30
CT140 Cuplock Truss 14'/4.27m 41.70 91.85
CT160 Cuplock Truss 16'/4.88m 49.50 109.03
CT180 Cuplock Truss 18'/5.49m 54.80 120.70
CT200 Cuplock Truss 20'/6.10m 70.00 154.19
