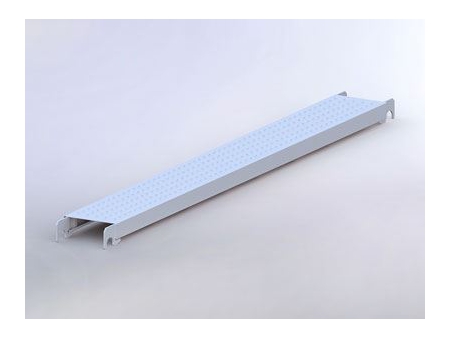

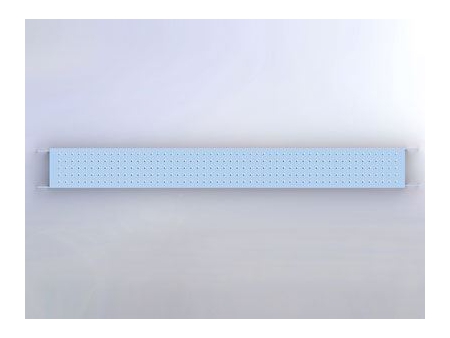

Scaffolding Cuplock Steel Plank
Scaffolding Cuplock Steel Plank
Scaffolding Cuplock Steel Plank

Scaffolding Cuplock Steel Plank

Materials

Q235 steel

Features

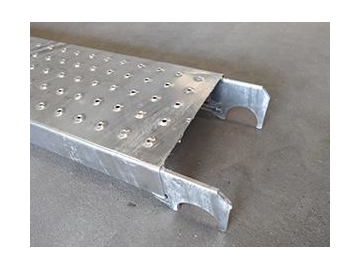

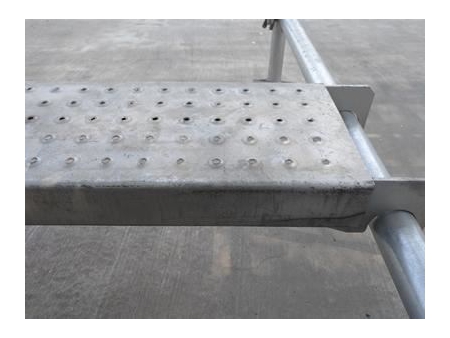

The cuplock steel plank can be directly hung on the horizontal in cuplock systems to form a work surface, enabling convenient construction. The steel plank is hot-dip galvanized.

Parameters

Width:228.6mm, Height:63.5mm, Thickness:1.8mm

Item No. Description Weight (KGS) Weight (LBS)
SSP100 Steel Plank with Hook 10'/3.05m 19.18 42.25
SSP90 Steel Plank with Hook 9'/2.74m 17.40 38.33
SSP80 Steel Plank with Hook 8'/2.44m 15.61 34.38
SSP70 Steel Plank with Hook 7'/2.13m 14.20 31.28
SSP60 Steel Plank with Hook 6'/1.83m 12.05 26.54
SSP50 Steel Plank with Hook 5'/1.52m 10.26 22.60
SSP40 Steel Plank with Hook 4'/1.22m 8.48 18.68
SSP30 Steel Plank with Hook 3'/0.91m 6.70 14.76
