Outdoor Lighting LED In-Ground Light Code AP784ET-XCET LED Lighting

Outdoor Lighting LED In-Ground Light  Code AP784ET-XCET LED Lighting
Outdoor Lighting LED In-Ground Light  Code AP784ET-XCET LED Lighting
Outdoor Lighting LED In-Ground Light  Code AP784ET-XCET LED Lighting
Outdoor Lighting LED In-Ground Light  Code AP784ET-XCET LED Lighting
Outdoor Lighting LED In-Ground Light  Code AP784ET-XCET LED Lighting
Outdoor Lighting LED In-Ground Light  Code AP784ET-XCET LED Lighting
Outdoor Lighting LED In-Ground Light  Code AP784ET-XCET LED Lighting
Request a Quote
Characteristics
  • Super static load 3000KGS, up to IP67, IK10 grade, suitable for various outdoor weather conditions.
  • Small in size and can be used as underground LED light or embedded LED light.
  • Integrated design, built-in power and drive, easy to install.
Product Parameters
Model AP784XCET AP784ET
Input Voltage AC100~240V AC100~240V
Max. Power 12W 12W
Power Factor >0.9 >0.9
Lumen 550lm 400lm
Peak Beam Intensity 2500cd(16°) 2025cd(16°)
LED Quantity 3pcs RGBW 3pcs tri-color
Optical Angle 16° 16°
DMX Dimming 0-100% 0-100%
RTCP DMX512 DMX512
Controllable Sections 1 1
Power Connection 3m cable(operation) 3m cable(operation)
Data Connection 3m cable(startup) 3m cable(startup)
IP Rating IP67,IK10 IP67,IK10
Operation Temperature -40°C~45°C (operation) -40°C~45°C (operation)
-20°C~45°C (startup) -20°C~45°C (startup)
Housing Material Die-casting aluminum Die-casting aluminum
Housing Color Black Black
Dimensions Ø153*175.2mm(round) Ø153*175.2mm(round)
133*175.2mm(square) 133*175.2mm(square)
Weight 2kg 2kg
Dimensions
Illumination Contours

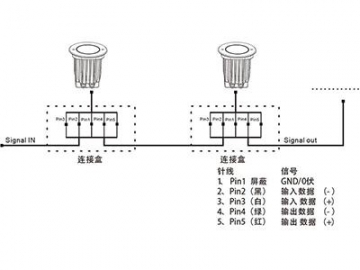

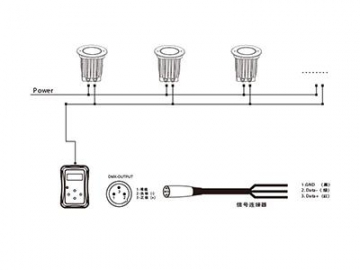

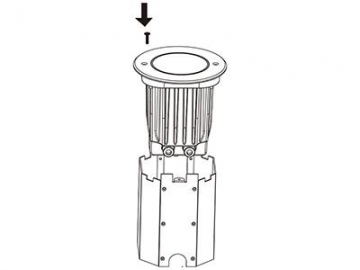

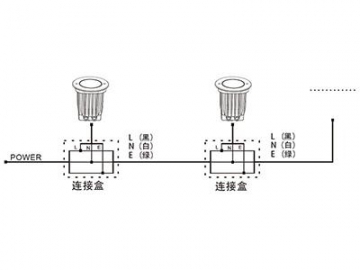

Installations
