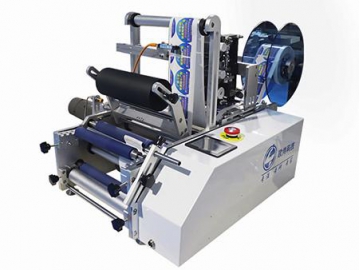

The semi-automatic labeler is equipped with a rotating motor and roller for labeling different products and shapes, including flat surfaces, and round or square bottles. As an example, it applies labels to three sides of a honey bottle, or all 4 sides of a tea caddy. By changing the smoothing device, it applies labels to uneven surfaces such as a concave or curved surface. With the use of different jigs, the semi-automatic labeler will also apply labels to irregularly shaped products.

The ribbon printer and industrial inkjet printer are optional. They are used for printing the production date and bath number on labels, combining printing and labeling processes.

Applications
  • Applicable labels: self-adhesive label, self-adhesive film, electronic supervision codes, bar codes
  • Applicable products: products requiring a label on a flat, cambered, round, concave or convex surface
  • Applicable industries: cosmetics, food, toys, daily chemicals, electronics, pharmaceutical, and more.

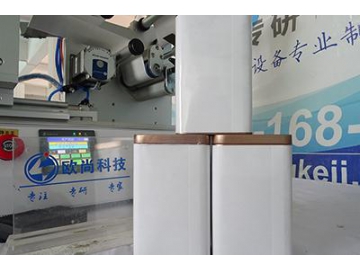

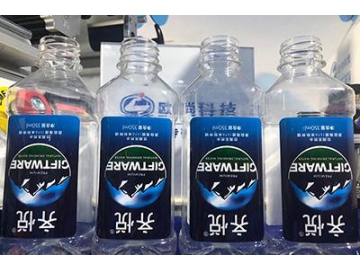

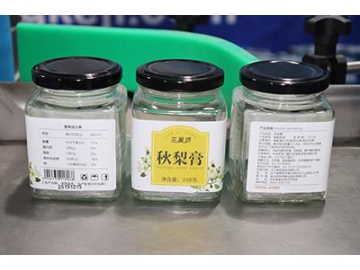

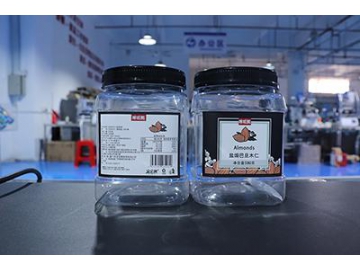

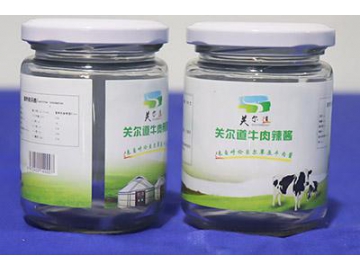

Samples
Specification
Model AS-P15
Label stop accuracy ±1 mm
Production speed 40-200 pcs/min
Product length 15mm~100mm
Product width 30mm~120mm
Product height 0.2mm~120mm
Label length 5mm~130mm
Label roll inside diameter Φ76mm
Label roll outside diameter Φ280mm
Dimensions (length x width x height) 800mm x 950mm x600mm
Weight 50Kg
Air pressure 0.4-0.6Mpa
Details of Top Labeler

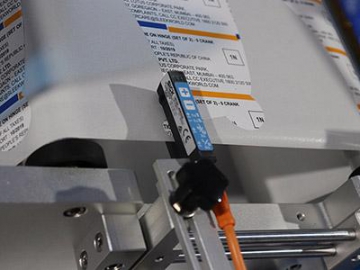

  • Photoelectric sensor
    The labeling machine is equipped with a photoelectric sensor provided by Sick and features an exceptionally high precision and reliability.

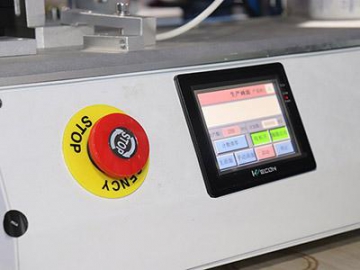

  • Touch screen:
    The touch screen is PLC controlled, with an easy to use human to machine interface. With just a tap of the touch screen, users can carry out an array of functions and determine a variety of product parameters to meet specific requirements.

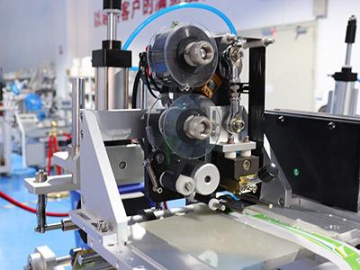

  • Coding machine:
    The coding machine will print vital information on the label during the labeling process, such as batch numbers.

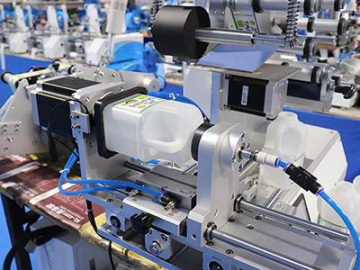

  • Rotating motor:
    It is used to rotate different products, including round bottles, square bottles, flat bottles and faceted bottles for label applications.
