Electromagnetically Actuated Vacuum Circuit Breaker (VCB)

Request a Quote

Website: https://hvpower-equip.com/2-7-outdoor-vacuum-circuit-breaker/index.html

Standards: IEC 62271-100:2008

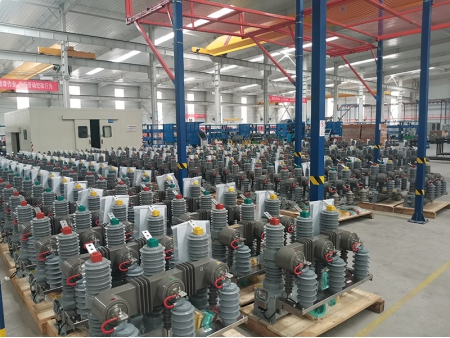

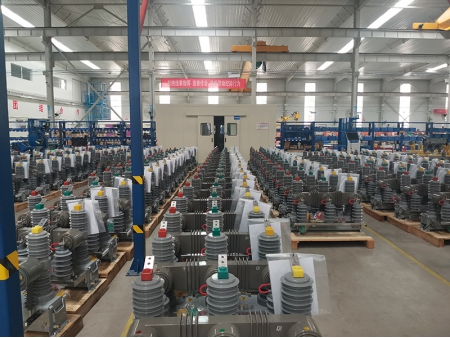

The HZW32 series outdoor pole-mounted vacuum circuit breaker is a 12kV, three-phase AC 50Hz high-voltage distribution device. It is primarily designed for breaking and closing load current, overload current, and short-circuit current in power systems. This VCB is suitable for protection and control in substations and power distribution systems within industrial and mining enterprises. It is particularly well-suited for the construction and upgrading of urban and rural power grids and in locations with frequent switching operations.

Technical Specifications

Rated voltage (kV)	12
Rated current (A)	630/1250
Rated frequency (Hz)	50/60
Operation mode	Manual/automatic
Short-time withstand current (kA)	20/25
Duration of short-time withstand current (s)	4
Rated peak withstand current (kA)	50/63
Power-frequency withstand voltage (kV)	34 (Wet) 42 (Dry)
Lightning impulse withstand voltage (kV)	75
Switch weight (kg)	150
Control and operation function	Remote control is available
Insulation	Vacuum interrupter and compound insulation

Features

Robust Sealed Structure: The three-phase pole-type fully enclosed structure offers excellent sealing performance, significantly improving resistance to humidity and condensation, making it ideal for cold or wet environments.

Reliable Mechanism: The operating mechanism is housed within a sealed mechanism box, effectively preventing corrosion and enhancing the overall reliability of the mechanism.

Smart Grid Compatibility: Can be integrated with intelligent controllers to achieve distribution automation. The circuit breaker can be equipped with two-phase or three-phase current transformers for overcurrent and short-circuit protection, and to provide current acquisition signals for the intelligent controller. Metering current transformers can be added based on customer requirements.

Operating Conditions

Temperature: ±40℃

Pollution Level: IV

Relative Humidity: daily average ≤95%, monthly average ≤90%

Seismic Grade: 8

Altitude: ≤5000m

Installation Environment: Places free from flammable, explosive hazards, or chemical corrosion.

Note: Contact HCRT if a different condition is required. We offer customized solutions as well.
