The 65-ton high-speed mechanical straight side press includes both six-guide post and three-guide post straight side models, with stroke lengths of 20-50 mm and operating speeds of 200-700 strokes per minute. Featuring worktable dimensions ranging from 890×540 mm to 1000×650 mm and slide sizes from 600×400 mm to 950×500 mm, the metal stamping press offers wide scrap outlets and exceptional stability. It is ideal for continuous high-speed stamping of rotors, stators, lead frames, and various hardware components.

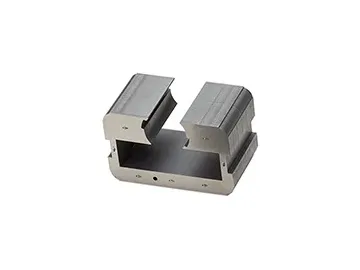

Samples of Stamped Parts
- Rotor and stator lamination stamping
- Metal lead frame stamping
- IC chip stamping
- Rotor and stator lamination stamping
- Metal hardware stamping
- Can Lid Stamping
Mechanical Straight Side Press (6 Guide Posts), MDH-65T
Technical Specifications
| Press capacity (kN) | 650 | |||
| Stroke (mm) | 20 | 30 | 40 | 50 |
| Stroke speed (spm) | 200-700 | 200-600 | 200-500 | 200-400 |
| Shut height (mm) | 210-260 | 205-255 | 200-250 | 195-245 |
| Worktable size (bolster) (mm) | 1000×650 | |||
| Slide area (mm) | 950×500 | |||
| Bed opening (mm) | 800×200 | |||
| Scrap hole size (mm) | 800×140 | |||
| Motor (kW) | 18.5×4P | |||
| Air pressure (MPa) | 0.7 | |||
| Feed line height (mm) | As per customer requirement | |||
| Total weight (ton) | 14 | |||

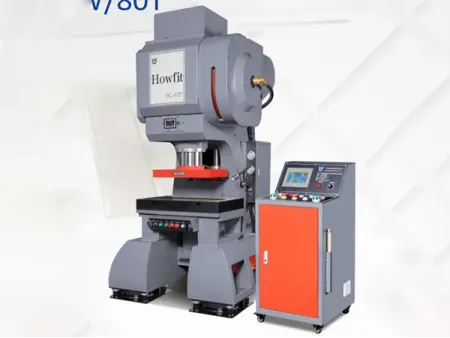

Mechanical C-Frame Press (3 Guide Posts), HC-65T
Technical Specifications
| Press capacity (kN) | 650 | ||
| Stroke (mm) | 30 | 40 | 50 |
| Stroke speed (spm) | 200-700 | 200-600 | 200-500 |
| Shut height (mm) | 215-265 | 210-260 | 205-255 |
| Slide adjustment (mm) | 50 | ||
| Worktable size (bolster) (mm) | 890×540×105 | ||
| Slide area (mm) | 600×400 | ||
| Scrap hole size (mm) | 120×740 | ||
| Main motor (kW) | 11×4P | ||
| Machine weight (ton) | 7.5 | ||
