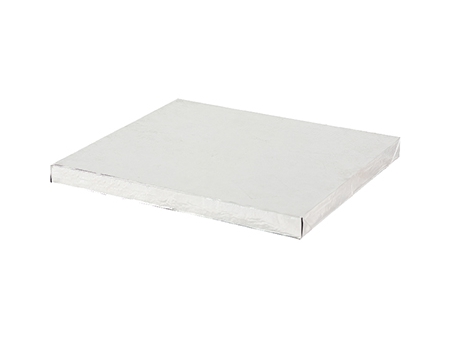

Vacuum Insulation Panel (VIP)
Vacuum insulation panel based on fumed silica core material consists of two major parts: fumed silica core material and high barrier laminates. As a special composite made of core materials and protective layers, it is integrated with the superiority of vacuum insulation and micro-pore heat insulation, effectively stopping convective heat transfer to perfect thermal insulation. With a thermal conductivity of lower than 0.0045w/m.k and minimum thickness of 4mm thicknesses, vacuum insulation panel based on fumed silica core material uses fumed silica core materials with a higher expected lifetime and the environmental protection materials that can be recycled and reused.
What the Features of Vacuum Insulation Panel (VIP)
- Stability and long life time;
- Smoother surfaces and edges compared with those of vacuum insulation panel based on fiberglass core material;
- Customized size: 4-50mm thickness, Max Width 700mm, Max Length 1200mm
- Nano-scale microporous insulation. Utilizes vacuum insulation technology with inorganic, lightweight, microporous materials for superior performance.
- High strength, low thermal conductivity. Offers Class A combustion resistance and excellent thermal efficiency.
- Exceptional durability. Outstanding heat resistance, air aging resistance, ozone resistance, and long-term insulation performance.
- Strong sealing capability. Effectively prevents small particles and rainwater intrusion, ensuring reliable insulation integrity.
Comparison of Specifications
| Core material | Fumed silica | Maximum size (mm) | 700×1200 |
| Film | High performance barrier film | Thickness range (mm) | 4 to 50 |
| Color | Silver | Density (kg/m³) | 180 to 200 |
| Temperature range (℃) | -80 to 85 | Length and width tolerance (mm) | ±3 |
| Structure | Rectangular | Thickness tolerance (mm) | ±2 |
| Standard size | Customized size | Thermal conductivity (W/m·K) | < 0.005 |
| Approval | ROHS, REACH |
Have Questions?
We're just a message away! for any questions or additional information. We look forward to hearing from you.
Application Examples

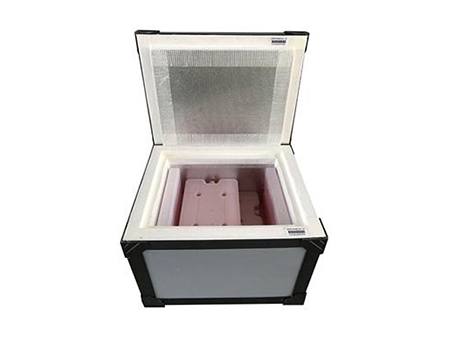

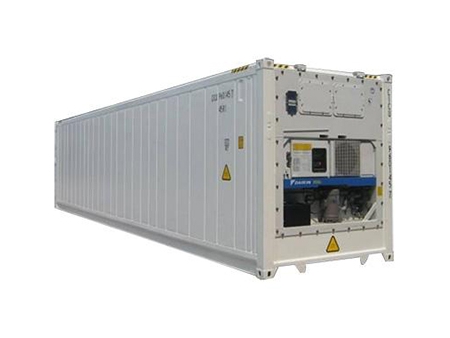

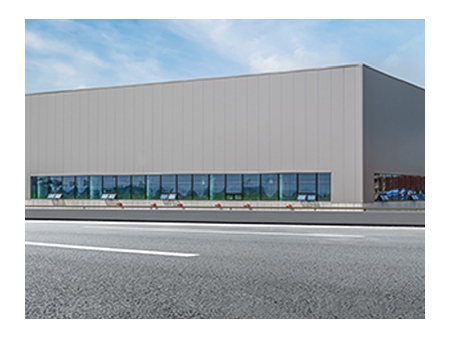

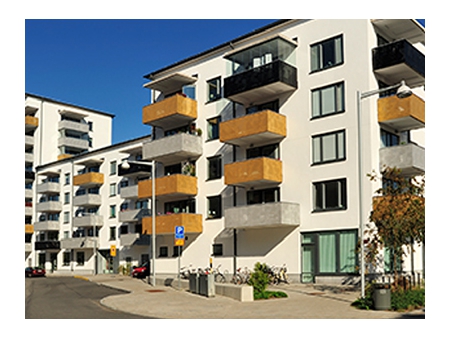

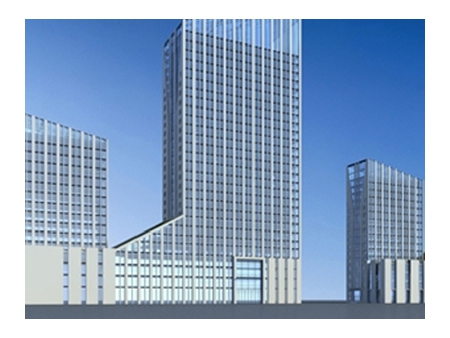

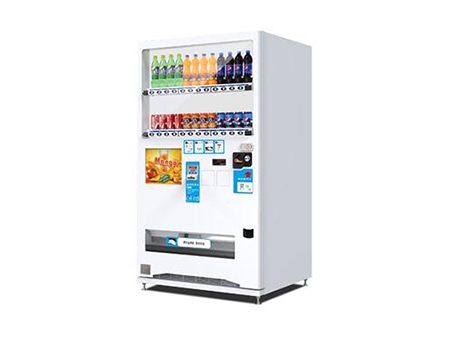

Vacuum Insulation Panel for Temperature Controlled PackagingVacuum Insulation Panel for Refrigeration AppliancesVacuum Insulation Panel for Insulated Shipping ContainerVacuum Insulation Panel for Civil building insulationVacuum Insulation Panel for Public building insulationVacuum Insulation Panel for Factory insulation
