300W/500W/750W Brush DC Planetary Gear Motor Manufacturer

300W/500W/750W Brush DC Planetary Gear Motor

Request a Quote

View All: http://zd-drivers.com/3-1-7-brush-planetary-gear-motor.html

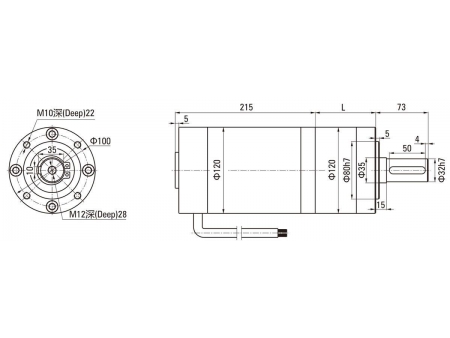

Motor Specifications

Motor Model	Gearbox Model	Gear Ratio	Dimension (mm)
Z82DPN	82PN()	3.65～8.63	63.70
		13.53～58.22	80.50
		67.08～392.98	103.2

Brush DC Motor Technical Data

Motor Model	Voltage V	Power W	No-load Current A	No-load SpeedRPM	Rated Current A	Rated Speed RPM	Rated TorqueN.m	Motor Life H
Z120DPN12300-30S	12	300	4.0	3500	35.5	3000	0.955	2000
Z120DPN24600-30S	24	600	3.0	3500	35.5	3000	1.910	2000
Z120DPN48750-30S	48	750	2.5	3700	21.0	3000	2.388	2000

Brush DC Planetary Gear Motor Technical Data

Gear Ratio	3.65	5.36	6.55	8.63	13.53	18.92	24.65	28.05	33.92	44.69	58.22	67.08	81.11
Output Shaft Speed r/min	822	560	458	348	222	159	122	107	88	67	52	45	37
Allowance Torque N.m	6.27	9.21	11.26	14.83	20.93	29.27	38.14	43.40	52.48	69.14	90.07	93.53	113.09
Reduction Stage	1	1	1	1	2	2	2	2	2	2	2	3	3

Gear Ratio	91.36	102.88	118.98	127.74	145.36	165.64	191.56	231.61	301.68	392.98
Output Shaft Speed r/min	33	29	25	23	21	18	16	13	10	8
Allowance Torque N.m	127.38	143.45	165.89	178.11	202.68	230.95	267.09	300.00	300.00	300.00
Reduction Stage	3	3	3	3	3	3	3	3	3	3
