Introduction

The SR-2000 NDIR infrared gas analyzer can be used to detect the designated gas content in mixed gas backgrounds such as CO, CO2, CH4, SO2, NH3, H2O, NOx and other hydrocarbons.

Inquiry
Comparison
The traditional infrared gas analyzer SR-2000 NDIR infrared gas analyzer
Nickel-chromium wire has a poor thermal stability, short service life and large measurement error as the infrared light source.Non-dispersive infrared rapid gas analysis technology
The frequency of infrared light is modulated mechanically, which often results in analyzers having a high power consumption, poor stability, high failure rate and difficult maintenance.High accuracy infrared detector with integrated interference filters
Using film capacitive microphone as the detector, the analyzer is very sensitive to vibration. New electrical modulated infrared light source, filming gas chamber which is easy to disassemble, embedded data acquisition system.
The inner wall of the aluminum alloy chamber is polished and the cleanliness and corrosion resistance of the chamber are poor.
Gases to be detected

Diatomic molecular gas: CO, CO2, CH4, NH3, SO2, NOx and hydrocarbons, etc.

Main specification
Range 0-100%
Standard range 0-0.03; 0-0.05; 0-0.1; 0-0.3; 0-0.5; 0-1; 0-3; 0-5; 0-10; 0-15; 0-20; 0-30; 0-40; 0-50; 0-100
Repeatability Cv£1% FS
Zero drift £±1% FS/7D
Span drift £±1% FS/7D
Response time T90< 20S
Sample gas flow rate 500mL/min
Preheating time 20min (Optional); 120min(Maximum accuracy)
Signal output 4-20mA/750Ω, RS232/485 (Optional)
Alarm High-limit alarm, low-limit alarm
Temperature and humidity 0-45°C, 20-80%RH
Power supply 220VAC, 50Hz
Analyzers that we manufactured before:
  • Carbon monoxide analyzer
  • Carbon dioxide analyzer
  • Ammonia analyzer
  • Sulfur dioxide analyzer
  • Methane analyzer
Application areas

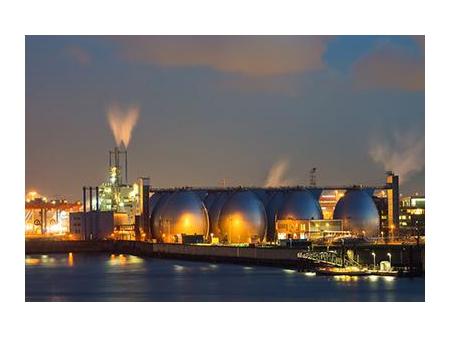

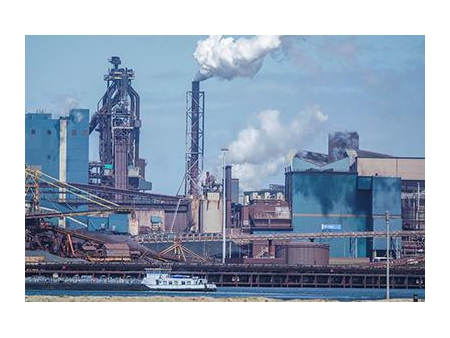

Chemical fertilizer, chemical industry, petroleum, metallurgy, building materials, power plants, cement, environmental protection, agriculture, medical and other industries.

  • Trash Burning Gas Analyzer
  • Biogas Plant Gas Analysis
