CNC Gantry Machining Center, Series LM-1311
Request a Quote
Double Column Machining Center
The LM-1311 vertical bridge gantry milling machine is used to machine large and complicated components, such as airplane beams and frames, and large machinery components. This milling machine features a gantry width of 1100mm, and a workbench of 1300 x 1000mm, and can load up to 2500kg of materials at one time.
Parameters| Model | LM-1311 |
| Travels | |
| X-axis travel (mm) | 1300 |
| Y-axis travel (mm) | 1100 |
| Z-axis travel (mm) | 520 |
| Distance from spindle nose to table center (mm) | 130-650 |
| Table (gantry) width (mm) | 1100 |
| Worktable | |
| Worktable area (mm) | 1300×1000 |
| Maximum weight on table (kg) | 2500 |
| T-slot (width – number of slot x spacing) (mm) | 7-22×150 |
| Spindle | |
| Standard spindle speed (rpm) | 6000 |
| Spindle taper | BT50φ190 |
| Spindle drive mode | Belt drive |
| Spindle power (KW) | 18.5 |
| Feed | |
| Cutting feed (mm/min) | 8000 |
| Rapid feed (m/min) | 12/10/10 |
| Linear guide rail width / number of tracks (mm) | 2-45X2-45Y:Z box guideway |
| Others | |
| Three-axis motor power (KW) | 4.5/4.5/7.0 |
| Positioning accuracy (mm) | 0.035/1000 |
| Repeatability (mm) | 0.025 |
| Control system | MISUBISHI: M80A/M80B, FANUC:Oi-MF, SINUMERIK 828D |
| Coolant tank (Pump) (HP) | 0.48 |
| Power requirement (KVA) | 35 |
| Air pressure (bar) | 6.5 |
| Machine weight (t) | 12 |
| Machine dimension (mm) | 3300×2550×2600 |

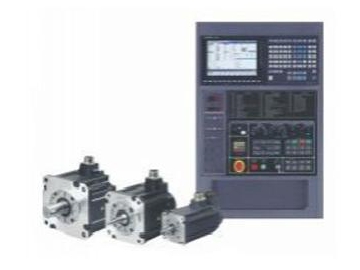

- Control system and motor

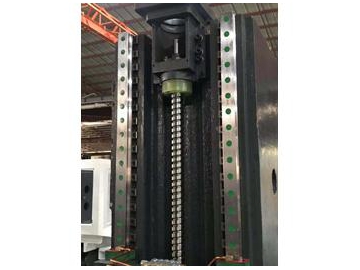

- Box guideway
- Mechanical spindle, gear drive

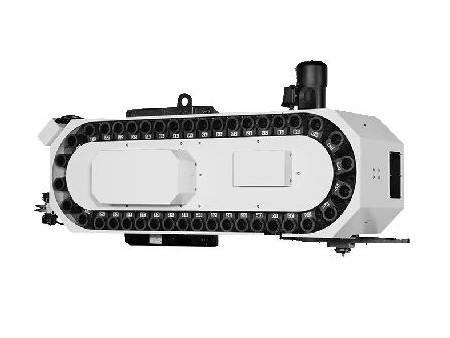

- Chain-type tool magazine
