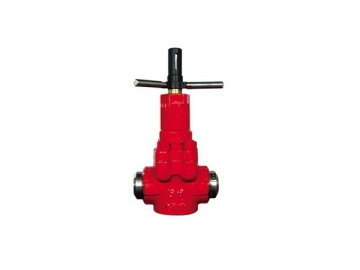

Z23X-35 Series Mud Gate Valve

Z23X-35 series mud gate valve is typically applied to mud circulating equipment in oil wells or mines, for the purpose of controlling mud flow. With trapezoidal threaded connection, the mud gate valve provides easy installation, high rigidity and safe, reliable performance. The valve seat and flashboard makes use of parallel type, elastic seal for great sealing effect and easy opening. The pipe swing, combined with O type rubber seal ring enables the valve to offer excellent seal even the two ends of the pipes do not seem in a straight line.

Parameters

Operating pressure(PMa)

2000-10000

Drift diameter

2”-5”

Working medium

Mud

Material class

DD-EE

Temperature class

L.U

Performance level

PR1-PR2

Specification level

PSL1-PSL3





Model

Z23X-35-DN50

Z23X-35-DN65

Z23X-35-DN80

Z23X-35-DN100

Operating pressure (Mpa)

35

Drift diameter (mm)

Φ50(2-1/16”)

Φ65(2-9/16”)

Φ80(8-1/8”)

Φ101.6(4-1/16”)

Working medium

Mud

Connection type

Union

Tie-in connection dimension (D)

Tr120×6(Tr100×12)

Tr130×6(Tr120×6)

Tr150×6

Tr180×8

Length (L)

230

235

270

330


DezhouRundong is a China-based mud gate valve manufacturer, providing mud pump parts, oscillating screen, and more. These products feature great durability and stable performance, and are CE certified. Located in Dezhou city in Shandong province, we have easy access to low labor, material, and land costs. This is why we can provide high-quality but low cost products. If you have any questions or concerns, please contact us. The staff at Rundong is ready to help you.
