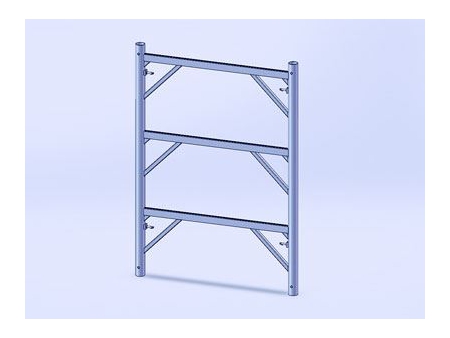

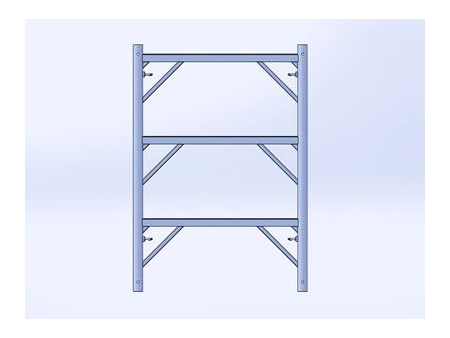

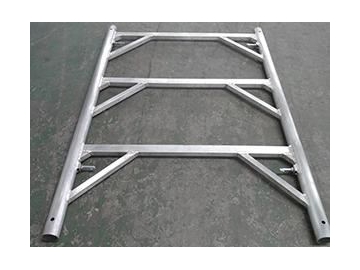

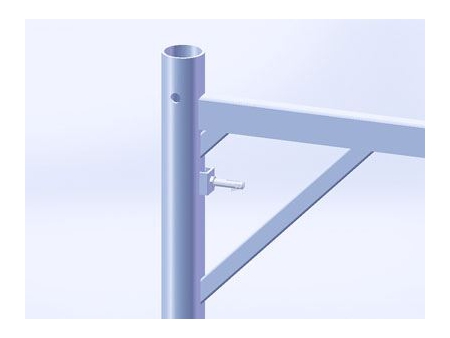

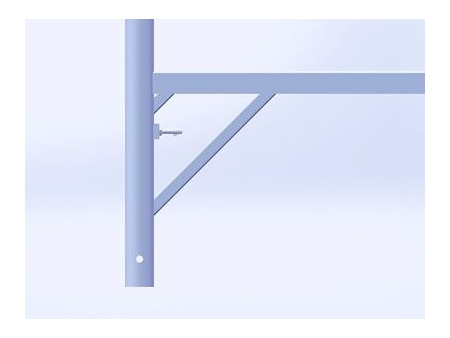

20K Scaffolding Aluminum Shoring Frame
20K Scaffolding Aluminum Shoring Frame
20K Scaffolding Aluminum Shoring Frame

20K Scaffolding Aluminum Shoring Frame

Description

The 20K scaffolding aluminum shoring frame weighs one third that of the general iron frames, making it easy to lift and install. Its strength is also 3 times that of common iron frames and it has a safety load of 20K (9072kg). The loading capacity of a single frame leg is twice as much as that of common steel shoring (7500 lbs./3400kg at 9'6'').

Materials

AL 6061-T6

Parameters
Item No Description Weight (Kgs) Weight (LBS)
FS0144 4'x 4' Aluminum Shoring Frame 13.01 28.65
FS0145 4'x 5' Aluminum Shoring Frame 16.3 35.9
FS0146 4'x 6' Aluminum Shoring Frame 18.5 40.75
FS0147 4'x 8' Aluminum Shoring Frame 26 57.26
FS0148 30″ Screw Jack Base Plate 6.5 14.32
FS0149 U-head Screw Jack 7.7 16.96
FS0150 Aluminum Frame Coupling Pins 0.8 1.76
FS0151 R Clips 0.1 0.22
