Oil Free Silenced Air Compressor, Standard Type
Request a Quote
- Air Displacement (L/min): 102～1120
- Maximum Pressure (Bar/PSI): 8Bar/115PSI
- Power (W): 550~1500*4 (Customization is available)
We offer a wide range of air compressors, post-processing equipment, comprehensive compressed air solutions, and technical support.
-

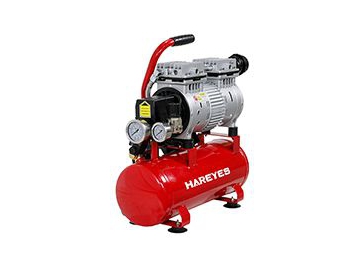

HRS550-8L Oil Free Silenced Air Compressor, Standard Type 550W/0.75HPPower (W/HP) Maximum Pressure (Bar/PSI) Air Displacement Speed (R.P.M) Overall Dimensions (cm) Package Size (cm) 550/0.75 8Bar/115PSI L / Min CFM 1380 46*17*48 51*21*51 102 3.60 -

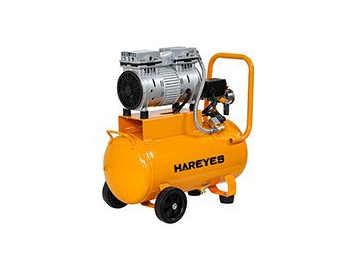

HRS550-24L Oil Free Silenced Air Compressor, Standard Type 550W/0.75HPPower (W/HP) Maximum Pressure (Bar/PSI) Air Displacement Speed (R.P.M) Overall Dimensions (cm) Package Size (cm) 550/0.75 8Bar/115PSI L / Min CFM 1380 55*30*55 59*27.5*54 102 3.60 -

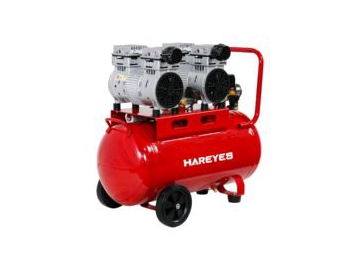

HRS550-2-50L Oil Free Silenced Air Compressor, Standard Type 2*550W/1.5HPPower (W/HP) Maximum Pressure (Bar/PSI) Air Displacement Speed (R.P.M) Overall Dimensions (cm) Package Size (cm) 2*550 /1.5 8Bar/115PSI L / Min CFM 1380 70*37*60 72*33*58.5 204 7.20 -
HRS550-3-90L Oil Free Silenced Air Compressor, Standard Type 3*550kW//2.2HPPower (W/HP) Maximum Pressure (Bar/PSI) Air Displacement Speed (R.P.M) Overall Dimensions (cm) Package Size (cm) 3*550/2.2 8Bar/115PSI L / Min CFM 1380 104*41*68 106*40*64 306 10.81 -

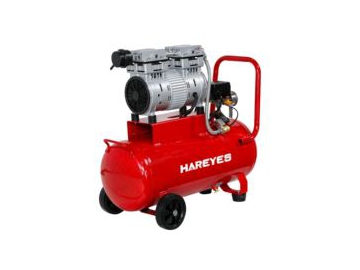

HRS750-30L Oil Free Silenced Air Compressor, Standard Type 750W/1HPPower (W/HP) Maximum Pressure (Bar/PSI) Air Displacement Speed (R.P.M) Overall Dimensions (cm) Package Size (cm) 750/1 8Bar/115PSI L / Min CFM 1380 64*31*58 67*28*59 124 4.38 -

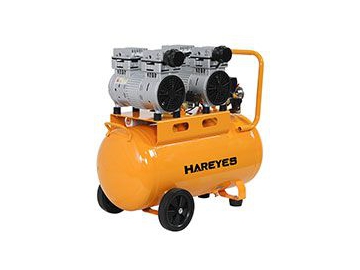

HRS750-2-50L Oil Free Silenced Air Compressor, Standard Type 2*750W/2HPPower (W/HP) Maximum Pressure (Bar/PSI) Air Displacement Speed (R.P.M) Overall Dimensions (cm) Package Size (cm) 2*750/2 8Bar/115PSI L / Min CFM 1380 68*37*58 72*33*60 248 8.76 -

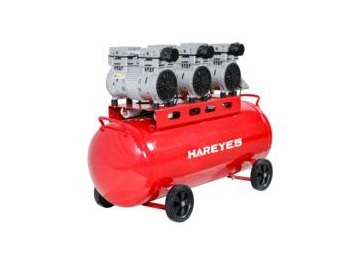

HRS750-3-90L Oil Free Silenced Air Compressor, Standard Type 3*750W/3HPPower (W/HP) Maximum Pressure (Bar/PSI) Air Displacement Speed (R.P.M) Overall Dimensions (cm) Package Size (cm) 3*750/3 8Bar/115PSI L / Min CFM 1380 104*41*68 106.5*39.5*67 372 13.14 -

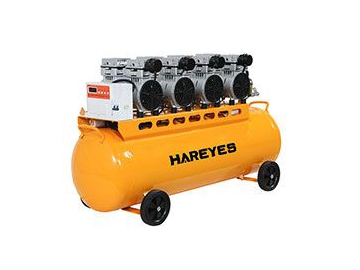

HRS750-4-120L Oil Free Silenced Air Compressor, Standard Type 4*750W/4HPPower (W/HP) Maximum Pressure (Bar/PSI) Air Displacement Speed (R.P.M) Overall Dimensions (cm) Package Size (cm) 4*750/4 8Bar/115PSI L / Min CFM 1380 121*43*67 126*39.5*66 496 17.51 -

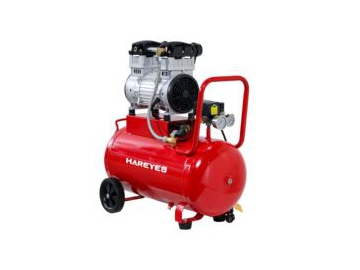

HRS1100-50L Oil Free Silenced Air Compressor, Standard Type 1100W/1.5HPPower (W/HP) Maximum Pressure (Bar/PSI) Air Displacement Speed (R.P.M) Overall Dimensions (cm) Package Size (cm) 1100/1.5 8Bar/115PSI L / Min CFM 1380 67*38*70 72*33*69 200 7.06
| Model | Power | Air Tank Capacity (Litre / Gal) | Maximum Pressure | Voltage /Frequency | Air Displacement | speed | N.W. KGS | Overall dimensions (cm) | Package Size (cm) | |
| Litre / Min | CFM | (R.P.M) | ||||||||
| 550W / 0.75HP | 8/2.11 | 8Bar/115PSI | 220V/50 HZ | 102 | 3.60 | 1380 | 15.6 | 46*17*48 | 51*21*51 | |
| 550W / 0.75HP | 24/6.34 | 8Bar/115PSI | 220V/50 HZ | 102 | 3.60 | 1380 | 21 | 55*30*55 | 59*27.5*54 | |
| 2*550w / 1.5HP | 50/13.20 | 8Bar/115PSI | 220V/50 HZ | 204 | 7.20 | 1380 | 37.5 | 70*37*60 | 72*33*58.5 | |
| 3*550W /2.2HP | 90/23.76 | 8Bar/115PSI | 220V/50 HZ | 306 | 10.81 | 1380 | 52 | 104*41*68 | 106*40*64 | |
| 750W / 1 HP | 30/7.92 | 8Bar/115PSI | 220V/50 HZ | 124 | 4.38 | 1380 | 23.2 | 64*31*58 | 67*28*59 | |
| HRS750-2-50L | 2*750W / 2HP | 50/13.20 | 8Bar/115PSI | 220V/50 HZ | 248 | 8.76 | 1380 | 40 | 68*37*58 | 72*33*60 |
| 3*750W / 3HP | 90/23.76 | 8Bar/115PSI | 220V/50 HZ | 372 | 13.14 | 1380 | 67.2 | 104*41*68 | 106.5*39.5*67 | |
| 4*750W / 4 HP | 120/31.68 | 8Bar/115PSI | 220V/50 HZ | 496 | 17.51 | 1380 | 84.5 | 121*43*67 | 126*39.5*66 | |
| 1100W / 1.5HP | 50/13.20 | 8Bar/115PSI | 220V/50 HZ | 200 | 7.06 | 1380 | 33 | 67*38*70 | 72*33*69 | |
| 1100W*2 / 3HP | 100/26.40 | 8Bar/115PSI | 220V/50 HZ | 400 | 14.12 | 1380 | 70 | 100*36*80 | 109*39.5*77 | |
| 1100W*3 / 4.48HP | 120/31.68 | 8Bar/115PSI | 220V/50 HZ | 600 | 21.19 | 1380 | 94 | 122*42*74 | 124*37.5*73.5 | |
| 1100W*4 / 6HP | 180/47.52 | 8Bar/115PSI | 220V/50 HZ | 800 | 28.25 | 1380 | 132 | 142*39*87 | 148*42.5*83 | |
| 1500W /2HP | 50/13.20 | 8Bar/115PSI | 220V/50 HZ | 280 | 9.89 | 1380 | 34.2 | 68*37*71 | 72*33*69 | |
| 1500W*2 /4HP | 100/26.40 | 8Bar/115PSI | 220V/50 HZ | 560 | 19.77 | 1380 | 72 | 106*35*80 | 109*39*75 | |
| 1500W*3 /6HP | 120/31.68 | 8Bar/115PSI | 220V/50 HZ | 840 | 29.66 | 1380 | 96 | 123*42*74 | 124*37.5*74.5 | |
| 1500W*4 /8HP | 180/47.52 | 8Bar/115PSI | 220V/50 HZ | 1120 | 39.55 | 1380 | 135 | 142*39*87 | 148*42.5*84 | |
Note: We reserve the right to make design improvements without prior notice. Product specifications are subject to change, and the final specifications may vary depending on the actual machine.
Features
We offer customizable air compressors in various voltage and frequency configurations to suit your specific requirements, such as 110V/single-phase/60Hz, 110V/three-phase/60Hz, 220V/three-phase/60Hz, 380V/three-phase/50Hz, 380V/three-phase/60Hz, 415V/three-phase/60Hz, 440V/three-phase/60Hz, 600V/three-phase/60Hz, and more.
