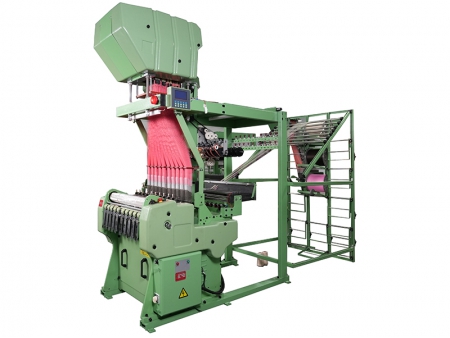

COF5J Electronic Jacquard Loom

Request a Quote

Website: http://solution-textile.com/3-2-electronic-jacquard-needle-loom.html

The COF5J electronic jacquard loom can weave fabrics with complicated patterns, including elastic loops and inelastic loops. According to your different jacquard pattern requirements, we can offer you various electronic jaquard looms with different numbers of threads.

We offer rubber or metal take-off rollers for you to choose from.

Parameters

Model	Number of lines	Reed width (mm)	Heald frame	Pick repeat (mm)	Motor power (kW)	Speed (rpm)
2/110/768T	2	110	6	8-48	2HP	750-850
4/65/192T(M)	4	65	6	8-48	2HP	850-1000
4/65/256T(M)	4	65	6	8-48	2HP	850-1000
4/65/320T	4	65	6	8-48	2HP	850-1000
4/65/384T	4	65	6	8-48	2HP	750-850
4/65/480T	4	65	6	8-48	2HP	750-850
4/80/480T	4	80	6	8-48	2HP	750-850
4/80/640T	4	80	6	8-48	2HP	750-850
6/45/128T(M)	6	45	6	8-48	2HP	850-1000
6/45/192T(M)	6	45	6	8-48	2HP	850-1000
6/45/320T	6	45	6	8-48	2HP	750-850
6/45/384T	6	45	6	8-48	2HP	750-850
6/55/128T(M)	6	55	6	8-48	2HP	850-1000
6/55/192T(M)	6	55	6	8-48	2HP	850-1000
6/55/256T(M)	6	55	6	8-48	2HP	850-1000
6/55/320T	6	55	6	8-48	2HP	750-850
6/55/384T	6	55	6	8-48	2HP	750-850
6/55/480T	6	55	6	8-48	2HP	750-850
8/30/128T(M)	8	30	6	8-48	2HP	850-1000
8/35/192T(M)	8	35	6	8-48	2HP	750-850
10/30-256T	10	30	6	8-48	2HP	750-850
