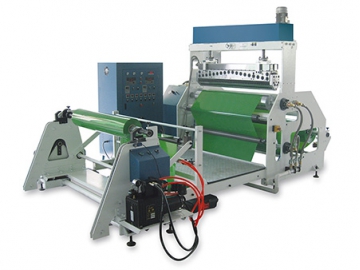

Extrusion Coating and Laminating Machine, 80M/min (RTT Series)
Request a Quote
RTT series extrusion coating and laminating machine is used for coating and laminating of a wide range of substrates such as woven fabric, paper, plastic film and nonwoven fabric using EVA, TPU hot melt adhesive.
Features
- T-die (coater die) with streamlined channels features outstanding mechanical stability.
- Precise temperature control with a PID controller achieves tolerance less than 1℃.
- The whole extrusion die can move forward and backward, upward and downward.
- The extruder and extrusion die features a split design, enabling space saving in the factory.
Technical Parameters
| Model | RT |
| Coating Width | 400-1500mm |
| Coating Weight | 10-100g/m2 |
| Coating Speed | 80m/min |
| Unwinding Unit | 1 set |
| Unwind Roll Diameter | 1000mm |
| Rewinding Unit | 1 set |
| Rewind Roll Diameter | 700mm |
| Max. Working Temperature | 230℃ |
| Length | 4100mm |
| Height | 2500mm |
