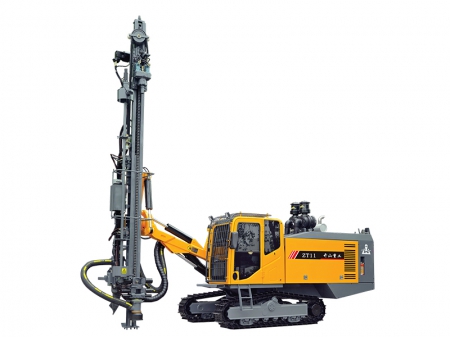

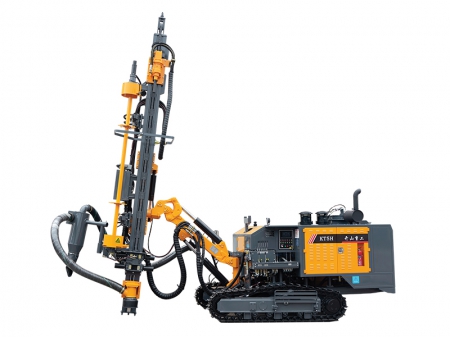

The integrated surface DTH drilling rig is capable of drilling vertical and inclined holes, and is mainly used for drilling large-diameter blast holes and pre-splitting holes in large open-pit mines and rock excavation projects. The rig is powered by a Cummins diesel engine as its sole power source, simultaneously driving the screw compressor system and the hydraulic transmission system through dual-end output.

• Equipped with an aluminum guide rail to ensure excellent drilling straightness, while the two-stage screw compressor provides stable air system performance

• Adopted long drill rods to reduce the frequency of rod changes

• Equipped with a drill rod lubrication system, a dry-type dust collection system, drill rod thread protection, and a real-time display of drilling angle and depth

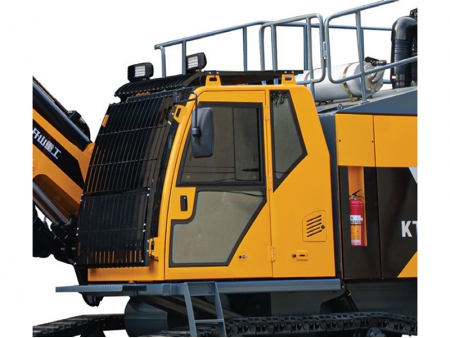

• An automatic rod handling system reduces labor intensity, while the air-conditioned cab provides a comfortable working environment.

• Features an automatic anti-jamming control valve to reduce the risk of drill pipe sticking

• The entire rig is controlled by an electric control system, offering high sensitivity and easy operation. It delivers strong structural integration, high automation, efficient drilling performance, environmental protection, energy efficiency, flexible mobility, and safe operation.
