Diesel/Gasoline Suction and Discharge Hose

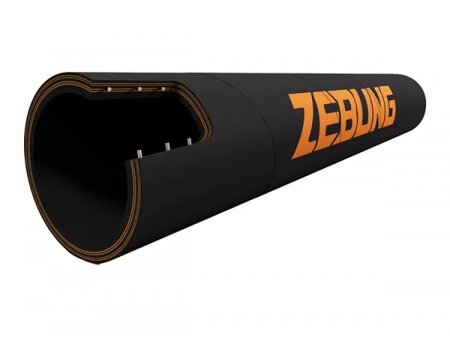

Large diameter suction and discharge hose with flange

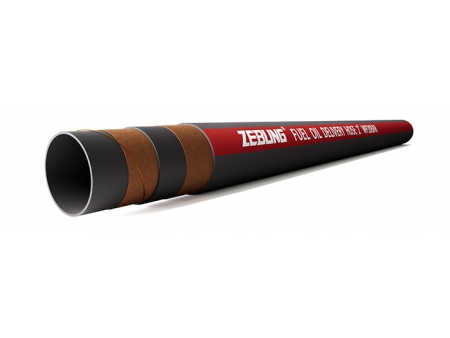

Suction and discharge hydraulic oil hose without flange
Diesel and gasoline rubber hoses are widely utilized in petroleum product delivery systems in industries such as gas stations, oil tankers, petrochemicals, and ports. They are designed to transport various types of petroleum products, including diesel and gasoline. Additionally, these hoses are commonly employed in fuel delivery pipelines for agricultural machinery, engineering equipment, and marine vessels.
The inner and outer layers of these diesel and gasoline rubber hoses are constructed with oil-resistant rubber, ensuring excellent oil resistance. With high adhesive strength between layers, they are durable and reliable for long-term transportation of diesel and gasoline.
Basic Information- Inner tube: Nitrile rubber (tensile strength ≥12MPa)
- Reinforcement: Fabric cord wrapping helical steel wire copper wire
- Outer cover: Nitrile rubber (tensile strength ≥10MPa)
- Appearance: Smooth or corrugated surface
- Working temperature: -30°C to 120°C
- Safety factor: 3:1
- Color: Available in various colors such as black, red, etc.
Technical Parameters
1. Suction and discharge hose without flange
| Item Code | Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | Weight | Max. Length | |||
| mm | inch | mm | bar | psi | bar | psi | kg/m | m | |
| DGSD019-150 | 19 | 3/4" | 30.8 | 10 | 150 | 30 | 450 | 0.72 | 61 |
| DGSD025-150 | 25 | 1" | 36.8 | 10 | 150 | 30 | 450 | 0.89 | 61 |
| DGSD032-150 | 32 | 1-1/4" | 44.8 | 10 | 150 | 30 | 450 | 1.19 | 61 |
| DGSD038-150 | 38 | 1-1/2" | 51.4 | 10 | 150 | 30 | 450 | 1.48 | 61 |
| DGSD045-150 | 45 | 1-3/4" | 58.4 | 10 | 150 | 30 | 450 | 1.71 | 61 |
| DGSD051-150 | 51 | 2" | 64.4 | 10 | 150 | 30 | 450 | 1.91 | 61 |
| DGSD064-150 | 64 | 2-1/2" | 78.4 | 10 | 150 | 30 | 450 | 2.48 | 61 |
| DGSD076-150 | 76 | 3" | 90.8 | 10 | 150 | 30 | 450 | 3.00 | 61 |
| DGSD089-150 | 89 | 3-1/2" | 106.2 | 10 | 150 | 30 | 450 | 4.33 | 61 |
| DGSD102-150 | 102 | 4" | 119.2 | 10 | 150 | 30 | 450 | 4.90 | 61 |
| DGSD127-150 | 127 | 5" | 146.2 | 10 | 150 | 30 | 450 | 6.57 | 61 |
| DGSD152-150 | 152 | 6" | 171.6 | 10 | 150 | 30 | 450 | 7.94 | 61 |
| DGSD203-150 | 203 | 8" | 224.8 | 10 | 150 | 30 | 450 | 12.07 | 40 |
| DGSD254-150 | 254 | 10" | 280.8 | 10 | 150 | 30 | 450 | 19.75 | 12 |
| DGSD304-150 | 304 | 12" | 334.2 | 10 | 150 | 30 | 450 | 27.68 | 12 |
| DGSD019-300 | 19 | 3/4" | 30.8 | 20 | 300 | 60 | 900 | 0.72 | 61 |
| DGSD025-300 | 25 | 1" | 36.8 | 20 | 300 | 60 | 900 | 0.89 | 61 |
| DGSD032-300 | 32 | 1-1/4" | 47.2 | 20 | 300 | 60 | 900 | 1.45 | 61 |
| DGSD038-300 | 38 | 1-1/2" | 53.8 | 20 | 300 | 60 | 900 | 1.79 | 61 |
| DGSD045-300 | 45 | 1-3/4" | 60.8 | 20 | 300 | 60 | 900 | 2.05 | 61 |
| DGSD051-300 | 51 | 2" | 66.8 | 20 | 300 | 60 | 900 | 2.29 | 61 |
| DGSD064-300 | 64 | 2-1/2" | 81.2 | 20 | 300 | 60 | 900 | 2.95 | 61 |
| DGSD076-300 | 76 | 3" | 94 | 20 | 300 | 60 | 900 | 3.63 | 61 |
| DGSD089-300 | 89 | 3-1/2" | 107.8 | 20 | 300 | 60 | 900 | 4.58 | 61 |
| DGSD102-300 | 102 | 4" | 120.8 | 20 | 300 | 60 | 900 | 5.18 | 61 |
| DGSD127-300 | 127 | 5" | 149.8 | 20 | 300 | 60 | 900 | 7.73 | 61 |
| DGSD152-300 | 152 | 6" | 175.2 | 20 | 300 | 60 | 900 | 9.34 | 61 |
| DGSD203-300 | 203 | 8" | 229.6 | 20 | 300 | 60 | 900 | 15.02 | 40 |
| DGSD254-300 | 254 | 10" | 288.8 | 20 | 300 | 60 | 900 | 25.46 | 12 |
| DGSD304-300 | 304 | 12" | 339.8 | 20 | 300 | 60 | 900 | 32.20 | 12 |
Note: specifications, pressures, colors and other parameters can be customized according to customers' requirements.
2. Large diameter suction and discharge hose with flange
| Item Code | Inner Diameter | Working Pressure | Burst Pressure | Max. Length | |||
| mm | inch | bar | psi | bar | psi | m | |
| FDGSD102-150 | 102 | 4" | 10 | 150 | 30 | 450 | 12 |
| FDGSD127-150 | 127 | 5" | 10 | 150 | 30 | 450 | 12 |
| FDGSD152-150 | 152 | 6" | 10 | 150 | 30 | 450 | 12 |
| FDGSD203-150 | 203 | 8" | 10 | 150 | 30 | 450 | 12 |
| FDGSD254-150 | 254 | 10" | 10 | 150 | 30 | 450 | 12 |
| FDGSD304-150 | 304 | 12" | 10 | 150 | 30 | 450 | 12 |
| FDGSD350-150 | 350 | 14" | 10 | 150 | 30 | 450 | 12 |
| FDGSD400-150 | 400 | 16" | 10 | 150 | 30 | 450 | 12 |
| FDGSD450-150 | 450 | 18" | 10 | 150 | 30 | 450 | 12 |
| FDGSD500-150 | 500 | 20" | 10 | 150 | 30 | 450 | 12 |
| FDGSD600-150 | 600 | 24" | 10 | 150 | 30 | 450 | 12 |
| FDGSD102-300 | 102 | 4" | 20 | 300 | 60 | 900 | 12 |
| FDGSD127-300 | 127 | 5" | 20 | 300 | 60 | 900 | 12 |
| FDGSD152-300 | 152 | 6" | 20 | 300 | 60 | 900 | 12 |
| FDGSD203-300 | 203 | 8" | 20 | 300 | 60 | 900 | 12 |
| FDGSD254-300 | 254 | 10" | 20 | 300 | 60 | 900 | 12 |
| FDGSD304-300 | 304 | 12" | 20 | 300 | 60 | 900 | 12 |
| FDGSD350-300 | 350 | 14" | 20 | 300 | 60 | 900 | 12 |
| FDGSD400-300 | 400 | 16" | 20 | 300 | 60 | 900 | 12 |
| FDGSD450-300 | 450 | 18" | 20 | 300 | 60 | 900 | 12 |
| FDGSD500-300 | 500 | 20" | 20 | 300 | 60 | 900 | 12 |
| FDGSD600-300 | 600 | 24" | 20 | 300 | 60 | 900 | 12 |
Note: specifications, pressures, colors and other parameters can be customized according to customers' requirements.
