Choosing a quasi-CW (Quasi-Continuous Wave) laser welding machine with a galvanometer scanner ensures fast, precise, and high-quality welds. This technology is ideal for precision spot welding of both metal and non-metal components. Quasi-CW laser welders combine the benefits of continuous wave and pulsed lasers, offering high peak power and reduced thermal effects.

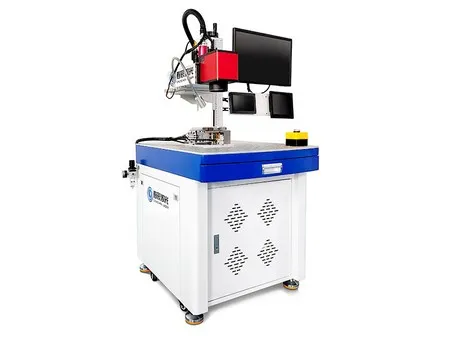

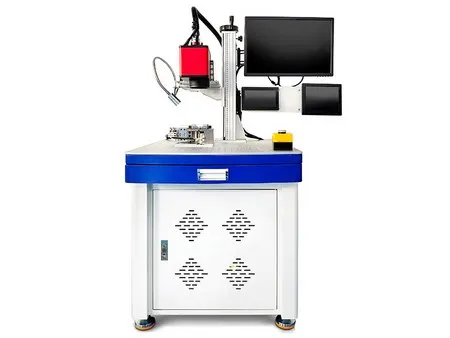

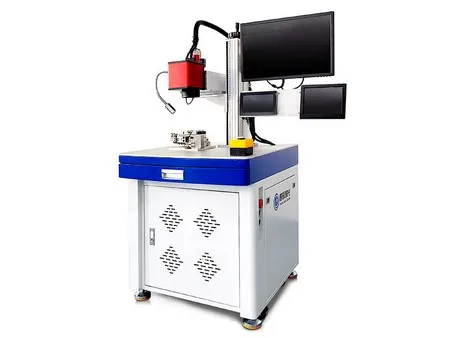

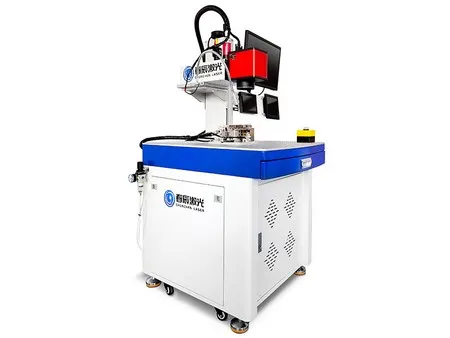

Quasi-CW Laser Welding Machine

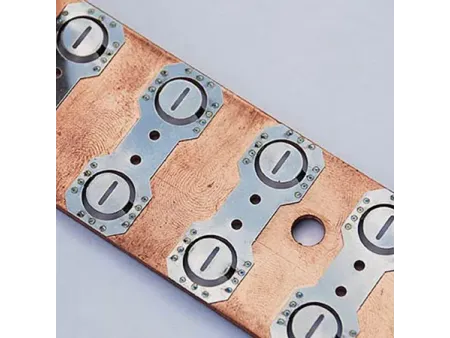

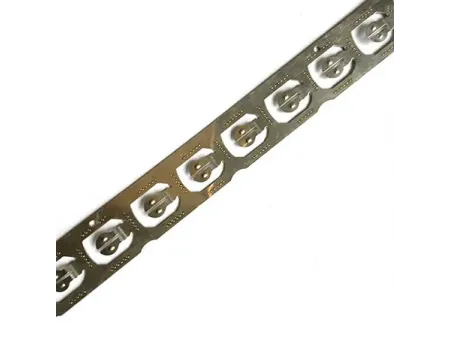

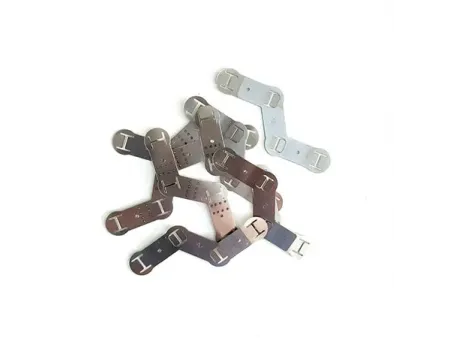

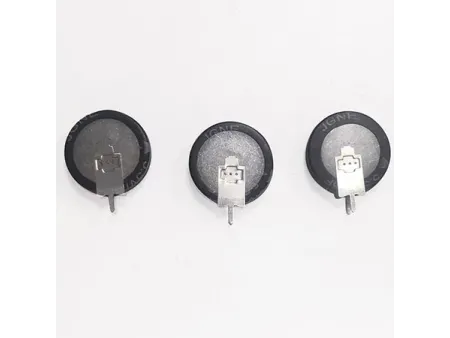

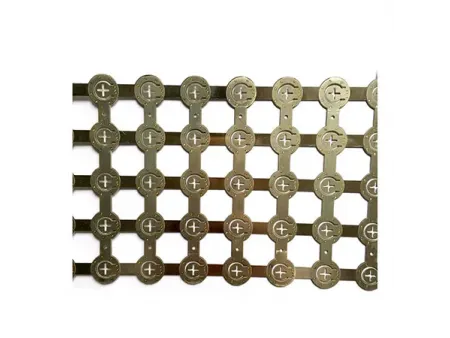

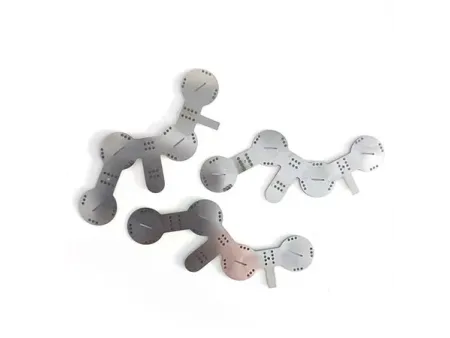

Quasi-CW laser welders can be used in various industries. It is ideal for electronic circuit welding, integrated circuits, instrumentation, printed circuit boards, computer manufacturing, mobile communications, automotive parts, precision instruments, construction materials, clothing and accessories, urban lighting, jewelry, crafts, and printing plate manufacturing.
![](public/propic/4242/b_3-3-quasi-cw-laser-welding-machine_08.webp)
![](public/propic/4242/b_3-3-quasi-cw-laser-welding-machine_09.webp)
![](public/propic/4242/b_3-3-quasi-cw-laser-welding-machine_10.webp)
![](public/propic/4242/b_3-3-quasi-cw-laser-welding-machine_11.webp)
![](public/propic/4242/b_3-3-quasi-cw-laser-welding-machine_12.webp)
![](public/propic/4242/b_3-3-quasi-cw-laser-welding-machine_13.webp)
![](public/propic/4242/b_3-3-quasi-cw-laser-welding-machine-img.webp)
- Features a long lifespan with no consumables required. It has a high electro-optical conversion rate, low energy consumption, and minimal power requirements

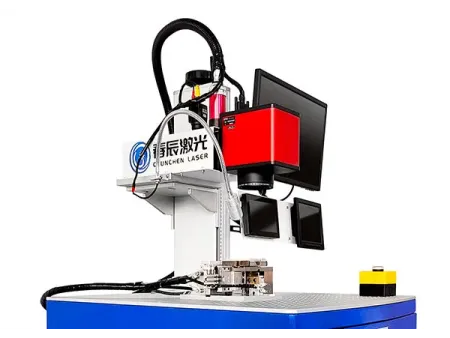

- Includes a laser source, high-speed galvanometer scanner, industrial control system, laser control system, and a robust cabinet
- Comes with specialized laser welding software based on the Windows platform. Users can input and edit welding points or patterns directly within the software, or import designs from other software for processing
- The quasi-CW welder offers stable performance, is easy to operate, and simple to maintain
- Utilizes air cooling, eliminating wastewater and gas emissions, making it an environmentally friendly option
- Suitable for various welding patterns such as points, lines, and shapes, ensuring high precision and flexibility in welding tasks
Machine type | Quasi Continuous Wave (QCW) Fiber Laser Welding Machine |
Laser power | 150W-600W (optional) |
Laser wavelength | 1080nm±10 |
Cooling method | Air cooling |
Average power | 450W-1800W |
Peak power | 1500W-6000W |
Power adjustment range | 10-100 |
Repetition frequency | 1-10000Hz |
Pulse width | 0.01-10ms |
![](public/propic/4242/b_3-3-quasi-cw-laser-welding-machine_05b.webp)

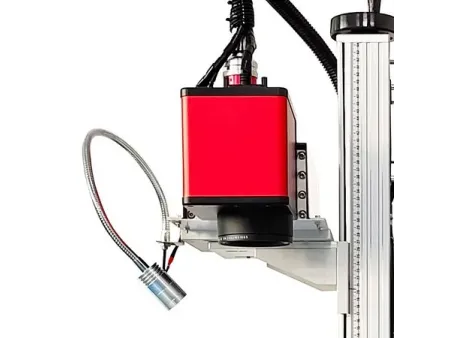

This welder features a high-speed galvo scanner that maximizes energy output, ensuring stable light emission, fast operation, and responsive performance. The scanner provides precise focusing for accurate welding tasks.
![](public/propic/4242/b_3-3-quasi-cw-laser-welding-machine_06b.webp)

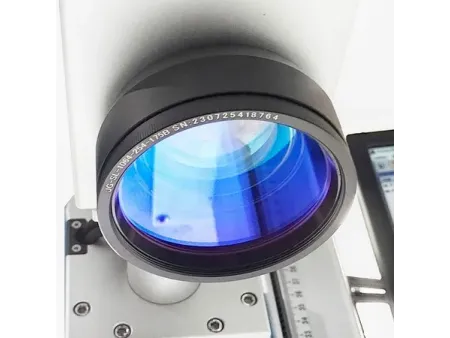

The advanced field lens enhances edge beam entry, providing uniform illumination across the detector's surface. It produces fine, detailed light spots and is designed to be wear-resistant and scratch-proof, ensuring clear and accurate focusing.
![](public/propic/4242/b_3-3-quasi-cw-laser-welding-machine_07b.webp)

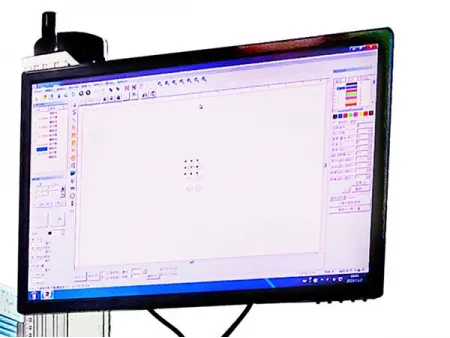

Equipped with a touch screen for intuitive human-machine interaction, the display is clear and easy to read. Parameters are simple to adjust, making the system user-friendly and efficient.
