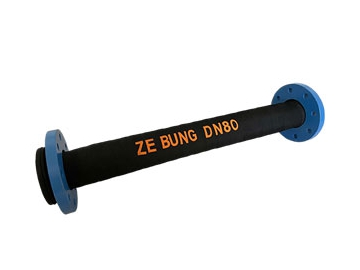

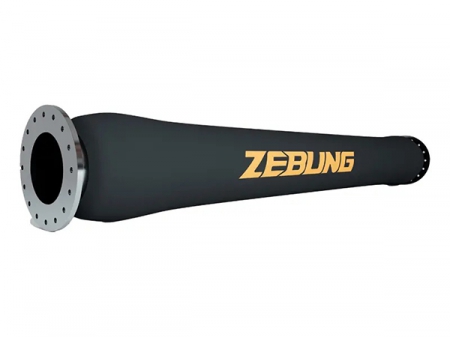

Hydraulic Oil Suction and Discharge Hose with Flange, known for its large diameter and flange connection, is designed for the efficient transportation of hydraulic oil in various industrial applications. Widely used in the return oil systems of machinery, construction vehicles, and other fields, these hoses are also suitable for use in chemical, petroleum, and liquid transportation industries. Renowned for their high-strength outer cover and excellent abrasion resistance, these hoses ensure reliable performance under diverse working conditions.

Basic Information
  • Inner tube: Nitrile Butyl rubber compound (Tensile strength ≥7MPa)
  • Reinforcement: Textile cord braided Spiral steel wire
  • Outer cover: Butyl Chloroprene rubber compound (Tensile strength ≥9MPa)
  • Appearance: Smooth or corrugated surface
  • Working temperature: -20°C to 80°C
  • Safety factor: 3:1
  • Color: Available in various colors such as black, red, etc.
  • Flange material and standards can be customized according to customer requirements.
Features

The inner rubber has good oil resistance and can transport hydraulic oil for a long time. The outer adhesive has high strength and excellent wear resistance, which can meet normal use under various working conditions.

Applications

Used for conveying hydraulic oil, widely used in the return oil system of mechanical equipment, engineering vehicles, and other fields. It can also be used in chemical, petroleum, and liquid transportation. It is a product with strong functionality, high safety, and wide applicability.

Technical Parameters

Item Code Inner Diameter Working Pressure Burst Pressure Max. Length
mm inch bar psi bar psi m
FHOSD102-150 102 4" 10 150 30 450 12
FHOSD127-150 127 5" 10 150 30 450 12
FHOSD152-150 152 6" 10 150 30 450 12
FHOSD203-150 203 8" 10 150 30 450 12
FHOSD254-150 254 10" 10 150 30 450 12
FHOSD304-150 304 12" 10 150 30 450 12
FHOSD350-150 350 14" 10 150 30 450 12
FHOSD400-150 400 16" 10 150 30 450 12
FHOSD450-150 450 18" 10 150 30 450 12
FHOSD500-150 500 20" 10 150 30 450 12
FHOSD600150 600 24" 10 150 30 450 12
FHOSD102-300 102 4" 20 300 60 900 12
FHOSD127-300 127 5" 20 300 60 900 12
FHOSD152-300 152 6" 20 300 60 900 12
FHOSD203-300 203 8" 20 300 60 900 12
FHOSD254-300 254 10" 20 300 60 900 12
FHOSD304-300 304 12" 20 300 60 900 12
FHOSD350-300 350 14" 20 300 60 900 12
FHOSD400-300 400 16" 20 300 60 900 12
FHOSD450-300 450 18" 20 300 60 900 12
FHOSD500-300 500 20" 20 300 60 900 12
FHOSD600-300 600 24" 20 300 60 900 12

Note: specifications, pressures, colors and other parameters can be customized according to customers' requirements.
