Corner conveyor
Request a Quote

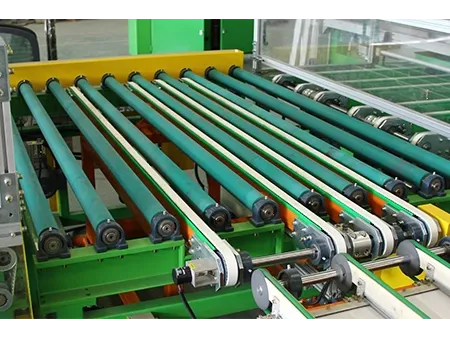

Used in automated production lines, corner conveyors transport glass panels at a 90 degree angle, allowing for efficient movement in tight spaces while maintaining glass panel orientation. This function is especially useful in compact layouts where straight-line transfer isn’t feasible. The structure integrates both horizontal transfer and lifting mechanisms to ensure smooth, reliable redirection.
Features
- Redirects the glass flow at a 90-degree angle without changing its orientation.
- Main conveying section uses roller conveying, driven by a reducer motor via chain transmission.
- The 90-degree conveying section uses synchronized belts, spaced to support both maximum and minimum glass sizes.
- The conveying section can be raised and lowered through a pneumatic cylinder.
