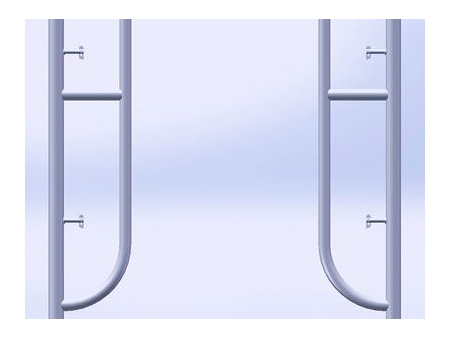

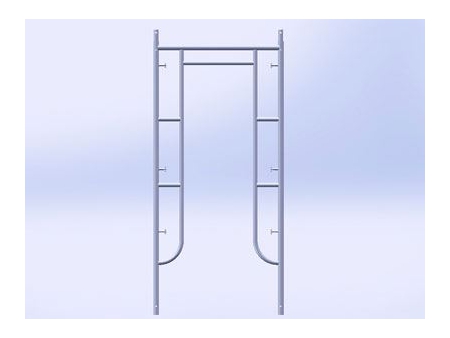

Description

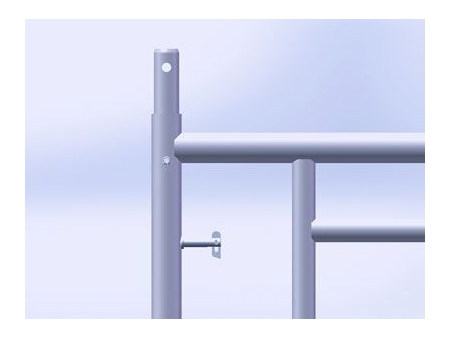

The scaffolding walk thru frame with flip lock features fast and convenient construction, and it is mainly used to give workers safe access to the working platform. This frame is equipped with a flip lock for safe operation. The frame is hot-dipped galvanized or powder coated for good corrosion resistance.

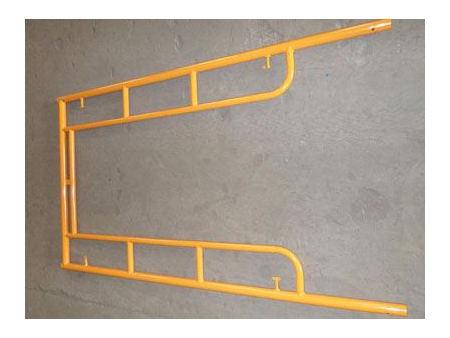

This ladder frame is powder coated or hot-dip galvanized.

Materials

Q235steel or Q345 steel.

Parameters
Item No. Description Weight (KG) Weight (LBS)
WTF0364F 3'x6'4'' Walk Thru Frame with flip lock 18.40 40.53
WTF0367F 3'x6'7'' Walk Thru Frame with flip lock 18.93 41.70
WTF4264F 42''x6'4'' Walk Thru Frame with flip lock 19.02 41.90
WTF4267F 42''x6'7'' Walk Thru Frame with flip lock 16.00 43.80
WTF0564F 5'x6'4'' Walk Thru Frame with flip lock 20.52 45.20
WTF0567F 5'x6'7'' Walk Thru Frame with flip lock 21.42 47.20
