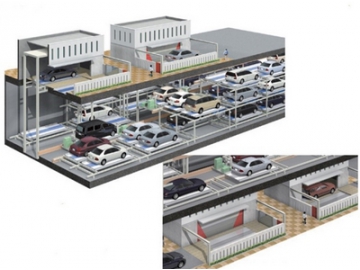

Our shuttle parking system is the automated parking system that transports vehicles utilizing shuttles and lifts to park and retrieve. The shuttle parking system is characterized by high intelligence, high precision control, fast operation, and compact structure. It equipped with multiple safety devices to ensure the stable running of the parking system and provide complete protection for vehicles. Besides, the automated car parking system comes with various assistant functions, e.g. human-machine interaction which features simple menu and easy-to-use operating interface, as well as remote monitoring system and toll management system, all of these can be highly configurable per your specific needs. Due to its high flexibility, this mechanical parking system can be built with multiple levels adapting to surrounding buildings and environment, which is widely used in airports, stations, commercial areas, stadiums, office buildings, etc.

• High Efficiency
  Efficient space utilization, saving your two-third of parking space compared to conventional parking bays;
• Fast Parking and Retrieval
  The maximum speed of shuttles reaches up to 1.5m per second, the shuttles and lifts run simultaneously, avoiding traffic jams during peak hours;
• Easy to Use
  Simple entry and exit, facilitates using and saves time;
• Flexible
  Multiple storage modes, multiple modules suited to various vehicle types;
• Working Principle

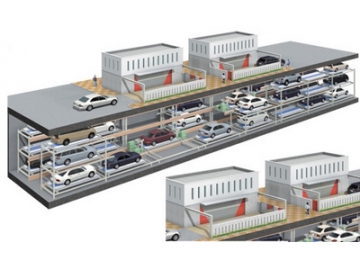

  The shuttle transports vehicles laterally at the same parking level, and lift transports the vehicle vertically to different levels. The simultaneous operation of horizontal shuttles and vertical lifts accomplishes the process of multilevel parking and retrieving.
• Vehicle Parking
  The driver simply drives forward into garage and stops car under the guidance of instructions. The detection device will measure the dimension of the car to define whether the car is suitable to be stored in the garage. Then the driver will exit the garage and the garage door will close. During the door is closing, if there is any person left in the car, the system will activate alarm to notify the central control room, thus ensuring the safety of people. When the lift transports the car to the appropriate level, the shuttle will slide the car into an available parking space.
• Vehicle Retrieving
  Driver or garage manager only needs to insert parking access card into the control panel or type the appropriate command on the control panel. The shuttle will travel horizontally to pick up the car and transfer it to the lift, and then the lift transport the car to exit level. The driver enters car after door opens, and drives out.

XIZI IPARKING can design a custom parking system that will fulfill all your parking needs.

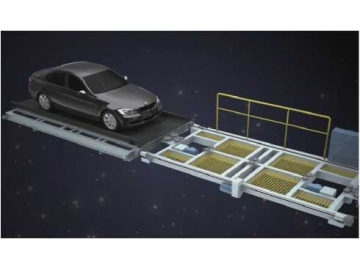

1. Shuttle Parking System, PPY (Pallet Type)

Specifications

Vehicle Dimension		PPY Model(pallet type)	Z Type	D Type	T2 Type	T Type
		Vehicle Length(mm)	4700	5000	5200	5300
		Vehicle Width(mm)	1800	1850	1900	1900
		Width including wing mirror(mm)	1900	1950	2000	2050
		Vehicle Height(mm)	1550	1550	1550	1550
		Vehicle Load(KG)	1500	1700	2000	2350
Drive	Lift	Speed	Max.50m/min
		Motor	18.5 kw
	Shuttle	Speed	Max.70m/min
		Motor	4Kw
	Drawing Mechanism	Speed	30M/min
		Motor	1.1 kw
Operation Mode			Button Operation / Touch Screen Operation (Optional)
Power Supply			AC380V50HZ

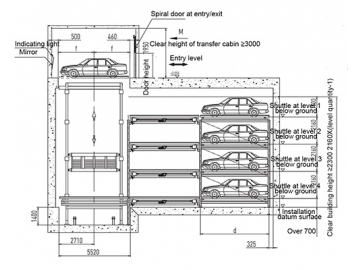

Front View

•
•

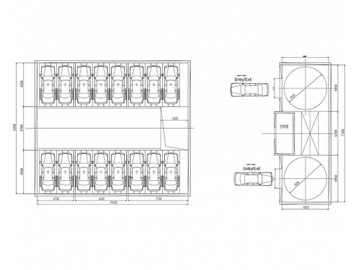

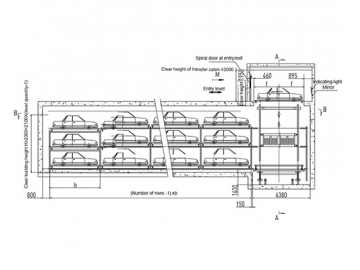

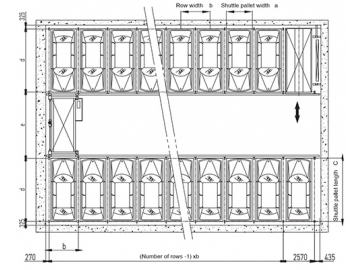

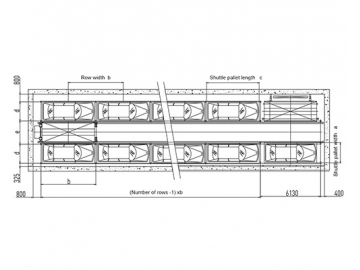

Plan View

•
•

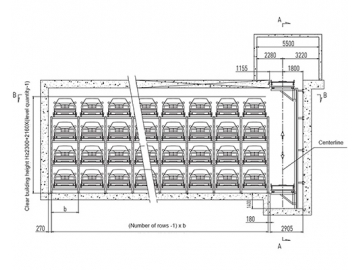

Side View

	PPY (Pallet Type) Dimension
Model	a	b	c	d	e	f
Z Type	2010	2300	4840	4800	5080	2520
D Type	2060	2350	5140	5100	5380	2670
T2 Type	2110	2400	5340	5300	5580	2770
T Type	2110	2450	5440	5400	5680	2820

	PPY (Pallet Type) Dimension
Model	a	b	c	d	e	f
Z Type	2010	5075	4840	1900	2320	2520
D Type	2060	5375	5140	1950	2370	2670
T2 Type	2110	5575	5340	2000	2420	2770
T Type	2110	5675	5440	2050	2470	2820

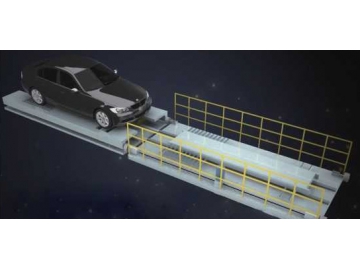

2. Shuttle Parking System, PPY (Comb Type)

Specifications

Model	PPY (Comb Type)
Parking Capacity	80
Vehicle Dimension	530QmmX1900mmX2050mm 2350Kg
	5300mmX1900mmX1550mm 2350Kg
Parking Levels	5 levels
Lifting Speed	Max.50m/min
Travel Speed	Max.70m/min
Lifting Power	18.5 kw
Travel Power	4Kw
Rotation Speed	1.8rpm
Parking/Retrieval Position	Forward Entry, Forward Exit

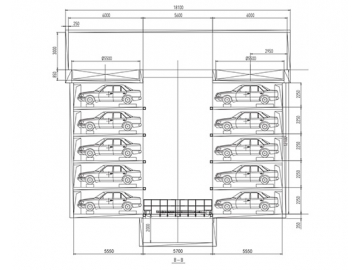

Front View

• Front View

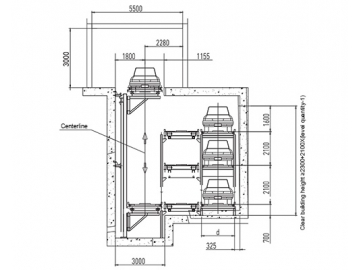

• Side View

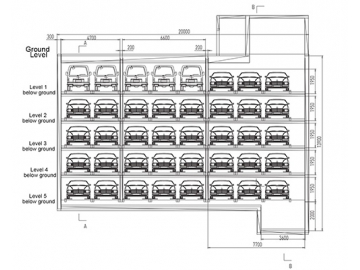

• Plan View

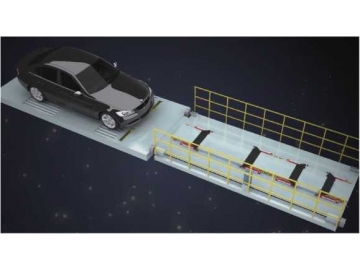

3. Shuttle Parking System, PPY (Robot Type)

Specifications

Model	PPY(Robot Type)
Parking Capacity	80
Vehicle Dimension	5300mm*1900mm*2050mm 2200kg
	5300mm*1900mm*1550mm 2200kg
Parking Levels	5 levels
Lifting Speed	Max.50m/min
Travel Speed	Max.70m/min
Lifting Power	18.5KW
Travel Power	4KW
Rotation Speed	1.8rpm
Parking/Retrieval Position	Forward Entry, Forward Exit

• Front View
• Side View
• Plan View
