Circular Motion Vibrating Screen Manufacturer

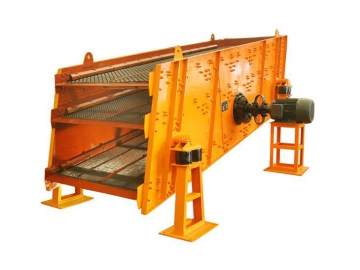

Circular Motion Vibrating Screen

Request a Quote

View All: http://hbminingplant.com/3-4-vibrating-screen-dys-series.html

Application
Circular motion vibrating screen of circular motion is a new kind of multi-layer and high efficiency vibrating screen. Circular motion vibrating screen can be widely used for the classification of concrete mixing station, dry mortar, power plant desulfurization, quartzite sand and other products in gravel field, mine mining, coal mining and other fields.

Applicable materials
Quartz sand, pebble, calcite, dolomite, granite, basalt, iron ore, limestone, diabase, marble, etc.

More Details

Parameters

Model	Screen layer	Screen area(m²)	Mesh size (mm)	Max feeding size (mm)	Handing capacity (m³/h)	Vibration power (r/min)	Two amplitudes (mm)	Motor power (kW)	Screen angle (°)	Screen surfacesize (mm)	Total weight (kg)	Overall dimension (L×W×H) (mm)
2YK1225	2	6	4-50	400	8-60	800-970	8	6P 5.5	20	1200×2500	3500	2930×1860×870
3YK1225	3	9	4-50	400	10-70	800-970	8	6P 5.5	20	1200×2500	3850	3070×1860×1210
2YK1230	2	7.2	4-50	400	12-78	800-970	8	6P 7.5	20	1200×3000	4200	3430×1860×870
3YK1230	3	10.8	4-50	400	13-80	800-970	8	6P 7.5	20	1200×3000	4600	3570×1860×1210
2YK1237	2	8.88	4-50	400	15-86	800-970	8	6P 7.5	20	1200×3700	4600	4050×1860×870
3YK1237	3	13.32	4-50	400	16-90	800-970	8	6P 7.5	20	1200×3700	5200	4270×1860×1210
2YK1535	2	10.5	5-50	400	20-125	800-970	8	6P 11	20	1500×3500	5890	4120×2210×1230
3YK1535	3	15.75	5-50	400	21-125	800-970	8	6P 11	20	1500×3500	6700	4360×2210×1610
2YK1545	2	13.5	5-50	400	22-150	800-970	8	6P 15	20	1500×4500	6330	5120×2210×1230
3YK1545	3	20.25	5-50	400	22-150	800-970	8	6P 15	20	1500×4500	6800	5360×2210×1610
4YK1545	4	27	5-50	400	22-155	800-970	8	6P 18.5	20	1500×4500	7800	5930×2210×2060
2YK1548	2	14.4	5-50	400	22.5-162	800-970	8	6P 15	20	1500×4800	6980	5420×2210×1230
3YK1548	3	21.6	5-50	400	22.5-162	800-970	11	6P 15	20	1500×4800	7700	5660×2210×1610
4YK1548	4	28.8	5-50	400	22.5-162	800-970	8	6P 18.5	20	1500×4800	8700	6230×2210×2060
2YK1848	2	17.28	5-80	400	25-206	750	8	6P 18.5	20	1800×4800	9080	5420×2550×1420
3YK1848	3	25.92	5-80	400	32-276	750	8	6P 18.5	20	1800×4800	9600	5660×2550×1780
4YK1848	4	34.56	5-80	400	32-285	750	8	6P 22	20	1800×4800	11100	6290×2550×2160
2YK1854	2	19.44	5-80	400	32-312	800-970	8	6P 18.5	20	1800×5400	10150	5960×2550×1420
3YK1854	3	29.16	5-80	400	32-312	800-970	8	6P 22	20	1800×5400	10840	6260×2550×1780
4YK1854	4	38.88	5-80	400	32-336	800-970	8	6P 30	20	1800×5400	12840	6830×2550×2160
2YK2160	2	25.2	5-100	400	50-475	970	8	6P 30	20	2100×6000	11780	6720×2840×1530
3YK2160	3	37.8	5-100	400	50-475	970	8	6P 30	20	2100×6000	12800	7030×2840×1910
4YK2160	4	50.4	5-100	400	50-497	970	8	6P 37	20	2100×6000	14800	7300×2840×2380
2YK2460	2	28.8	5-100	400	65-550	970	8	6P 37	20	2400×6000	15600	7020×3140×1530
3YK2460	3	43.2	5-100	400	70-620	970	8	6P 37	20	2400×6000	17600	7300×3140×1910
4YK2460	4	57.6	5-100	400	80-680	970	8	6P 45	20	2400×6000	19600	7600×3140×2380
2YK2870	2	39.2	5-100	400	120-680	750	8	8P 22×2	20	2800×7000	21200	7600×4320×1620
3YK2870	3	58.8	5-100	400	180-720	750	8	8P 22×2	20	2800×7000	22400	7800×4320×2120
2YK3072	2	43.2	5-100	400	200-700	750	8	8P 22×2	20	3000×7200	23600	7800×4520×1750
3YK3072	3	64.8	5-100	400	230-800	750	8	8P 22×2	20	3000×7200	25500	8000×4520×2300

(Please enter your desired product model)
