Manual Permanent Magnetic Lifter Manufacturer

Manual Permanent Magnetic Lifter

Request a Quote

View All: http://powertool-en.com/4-1-manual-permanent-magnetic-lifter.html

The manual type requires the operator to manually control the switch to activate or deactivate the magnetic force. It has a simple structure and lower cost, making it suitable for applications where lifting efficiency is not a primary concern or where flexible magnetic force adjustment is needed.

The magnetic force can be adjusted by changing the switch position, allowing for intuitive operation. However, it requires the operator to have experience and skill for proper handling.

In terms of safety, manual magnetic lifters require the operator to closely monitor the lifting process and respond to any changes promptly. To ensure safety, it is essential to strictly follow operational guidelines and take necessary precautions to protect both personnel and equipment.

Manual Permanent Magnetic Lifter Details

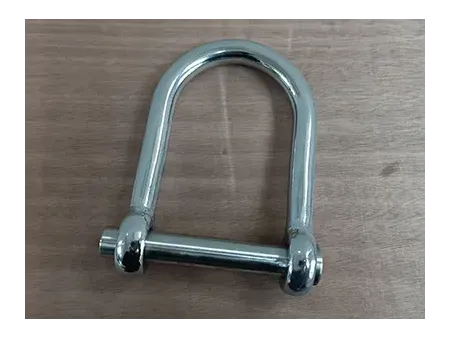

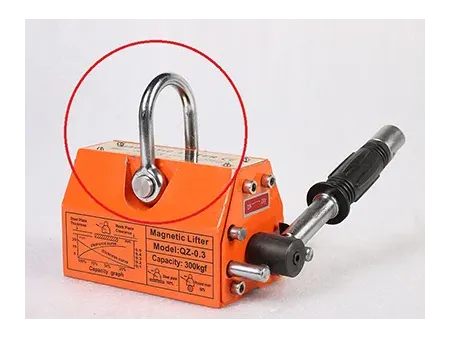

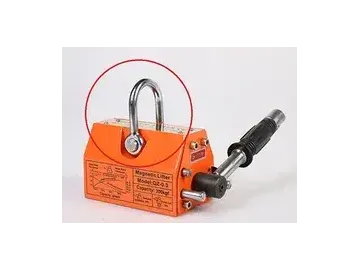

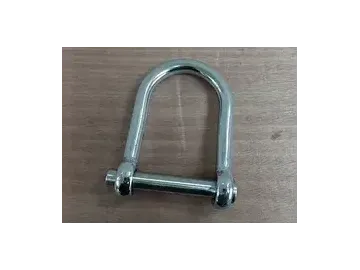

Designed with alloy steel galvanized lifting ring, ensures safety, stability, and rust resistance for long-term durability.

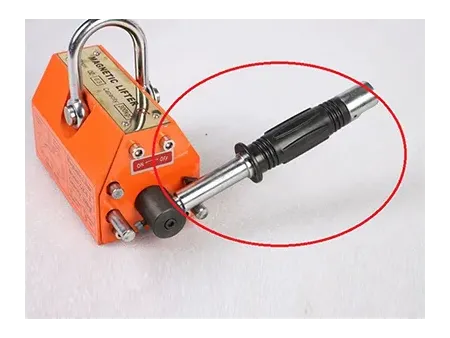

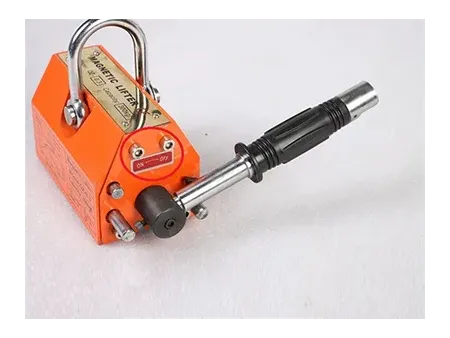

Rubber-coated anti-slip handle improves grip and operational safety.

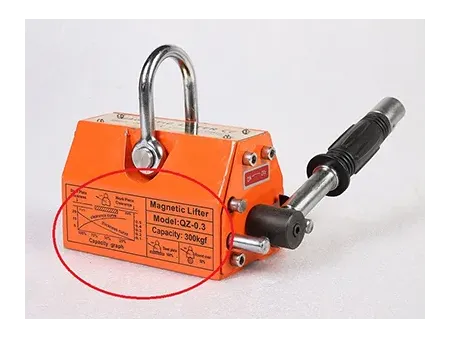

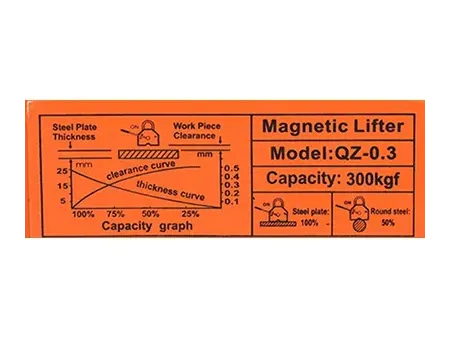

Side reference chart clearly indicates the relationship between plate thickness and lifting capacity.

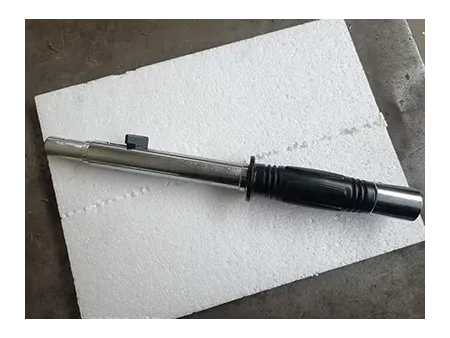

Reinforced and thickened rotating shaft, paired with a mechanical labor-saving switch for easier operation.

Applications

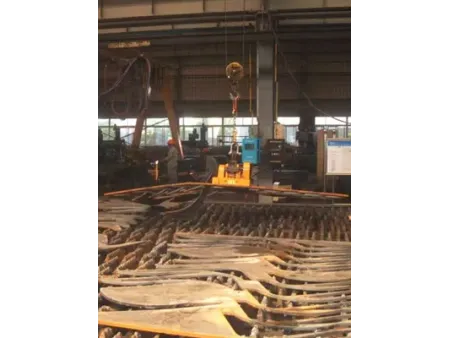

Metal Parts Lifting

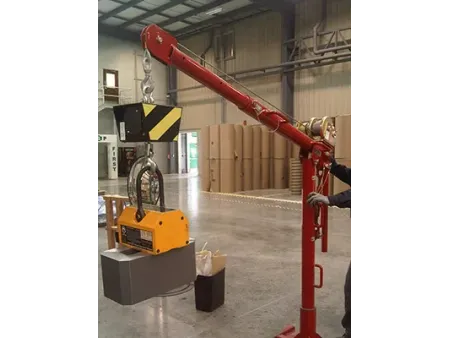

Metal Block Lifting

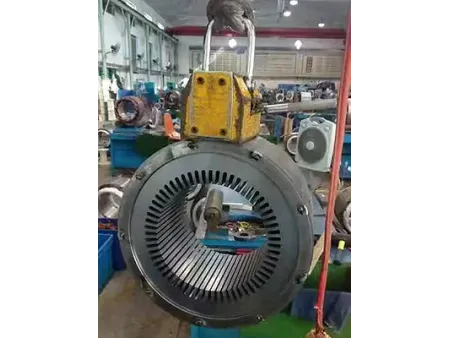

Magnetic Lifting of Round/Curved Surfaces

Features

The compact and lightweight design makes it easy to operate.
Made with high-performance permanent magnetic materials, ensuring no demagnetization over time.
Operates without the need for electricity or any external power source.
Features an advanced magnetic circuit balance design, providing strong holding force with near-zero residual magnetism, ensuring safety and reliability.
The maximum breakaway force is 3.5 times the rated lifting capacity, offering a high safety factor.
The magnetic force is manually controlled by the operator using a hand-operated switch.

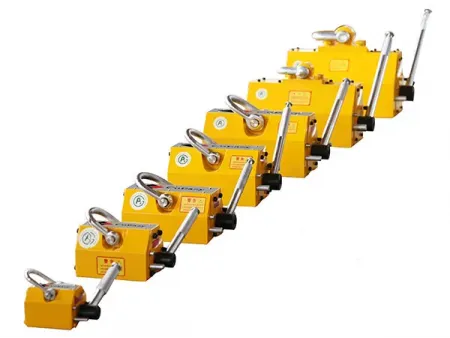

Models of Manual Permanent Magnetic Lifter

Model:
Lifting Capacity	Safety Factor	Weight	Shape Size (mm)
			L	B	H	R
100kg (flat steel objects) 50kg (round steel objects)	3.5x	3kg	100	82	80	155

Model:
Lifting Capacity	Safety Factor	Weight	Shape Size (mm)
			L	B	H	R
300kg (flat steel objects) 150kg (round steel objects)	3.5x	12kg	175	105	100	185

Model:
Lifting Capacity	Safety Factor	Weight	Shape Size (mm)
			L	B	H	R
600kg (flat steel objects) 300kg (round steel objects)	3.5x	25kg	225	140	125	235

Model:
Lifting Capacity	Safety Factor	Weight	Shape Size (mm)
			L	B	H	R
1000kg (flat steel objects) 500kg (round steel objects)	3.5x	43kg	280	160	155	265

Model:
Lifting Capacity	Safety Factor	Weight	Shape Size (mm)
			L	B	H	R
2000kg (flat steel objects) 1000kg (round steel objects)	3.0x	85kg	360	210	185	426

Model:
Lifting Capacity	Safety Factor	Weight	Shape Size (mm)
			L	B	H	R
3000kg (flat steel objects)	3.0x	160kg	435	286	245	520

Model:
Lifting Capacity	Safety Factor	Weight	Shape Size (mm)
			L	B	H	R
5000kg (flat steel objects)	3.0x	320kg	540	316	295	650

100kg Lifting Magnet
300kg Lifting Magnet
600kg Lifting Magnet
1000kg Lifting Magnet
2000kg Lifting Magnet
3000kg Lifting Magnet
5000kg Lifting Magnet

Packaging & Shipping

Machine and accessories are packed into an outer carton.
The carton is sealed and securely strapped.
Products are shipped via container transport.
