Trough Belt Conveyor
Stationary conveyor system for bulk material handling

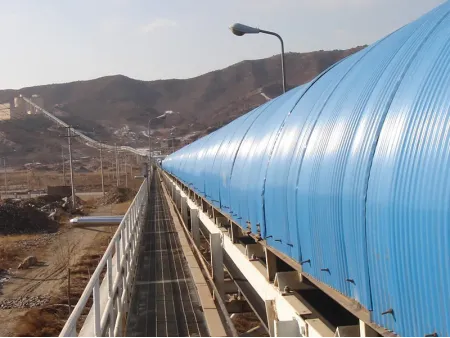

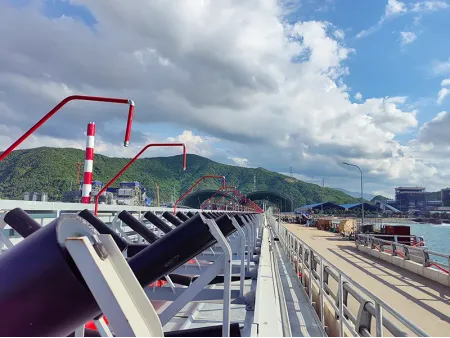

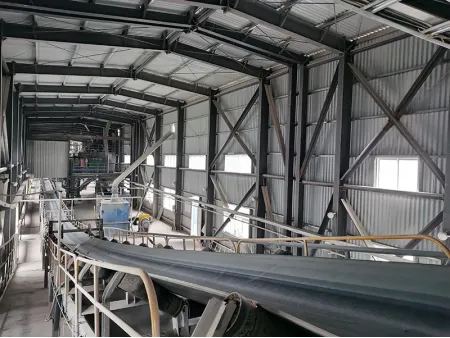

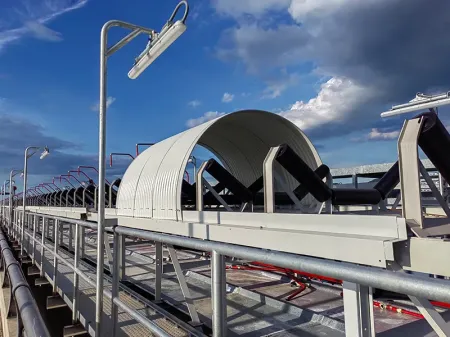

The trough belt conveyor is a stationary belt conveyor system manufactured with materials such as cotton canvas, nylon, polyester fabric, and steel cord conveyor belts. It stands out for its high production efficiency, significant transport capacity, and low energy consumption. Designed for continuous, long-distance transportation, it operates smoothly and reliably, with minimal noise, low pollution, simple structure, and reduced operational costs.
- Belt Width500-2200mm
- Incline0° to 18°
- Belt Speed0.8-5.0m/s
Engineered to be modular, the trough belt conveyor can operate in temperatures ranging from -25° to 40°C. Additional protective measures can be implemented for environments with special requirements, such as high temperatures, cold, explosion-proof areas, corrosion resistance, acid and alkali resistance, and waterproofing. Trough belt conveyors can be customized and calculated according to specific conveying processes, terrain, and conditions, making it a comprehensive solution for various material transportation needs.
This conveyor system is suitable for a wide range of industries, including mining, metallurgy, coal, power plants, and construction materials. It efficiently transports bulk materials with loose densities of 500 to 2500 kg/m³.
