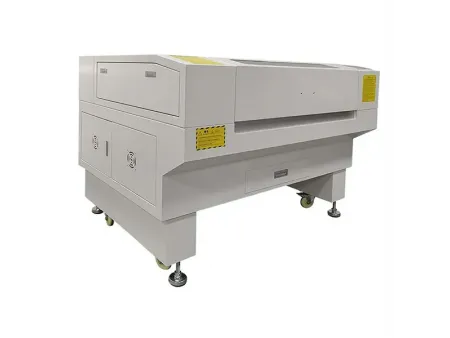

CO2 Metal Tube Laser Cutting Machine
- Laser power 60W (customizable)
- Repeatability accuracy ≤±0.01mm
- Cooling method air cooling
- Machine weight 300kg
The CO₂ metal tube laser cutting machine is designed for precision and durability:
- High-quality metal body: Resistant to wear and corrosion, maintaining a clean appearance over time.
- Large transparent observation window: Allows real-time monitoring of the cutting process without opening the safety door, combining operational convenience with safety.
- Fully enclosed structure: Provides dust and shock protection, extending the machine's lifespan.
- Mobile wheels with foot cups: Enables flexible adjustment of the machine's position while ensuring stable and non-slip placement.

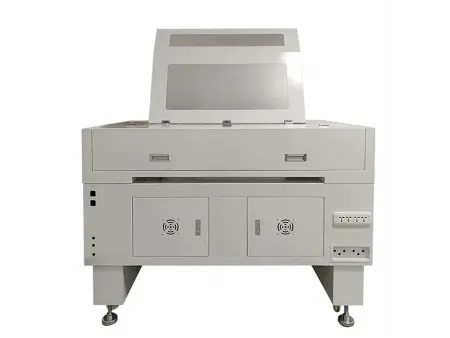

- Centered cutting area with open top cover: Facilitates convenient loading and unloading of materials.
Flexible OLED, film materials, acrylic, wood products, leather, ceramics.
| Laser power | 60W (customizable) |
| Working area | 500×600mm (customizable) |
| Repeatability accuracy | ≤±0.01mm |
| Transmission | servo motor precision screw dual guide rail |
| Positioning accuracy | ≤±0.02mm |
| Workpiece size accuracy | ≤±0.05mm |
| File format | BMP, PLT, DXF, DST, JPG, CDR, PNG, DSB, RAW, etc |
| Operation system | RD control system |
| Cooling method | air cooling |
| Power supply | 220V±10%, 50Hz /110V±10%,60Hz |
| Machine dimensions | 1180×1200×1300mm |
| Machine weight | 300kg |
| Package size | 1600×1300×1500mm |
| Package weight | 330kg |
Honeycomb aluminum plate worktable
Its porous structure minimizes material contact, preventing scratches on delicate materials like mirrored acrylic, while also enhancing airflow circulation and reducing cutting dust residue.
RF metal CO₂ laser tube
Features a ceramic core with a sealed metal outer casing, preventing gas leakage and external contamination, ensuring long-term stable operation, and is suitable for industrial-grade continuous use. It boasts a lifespan of 20,000-40,000 hours and supports refillable gas for repeated use, significantly reducing replacement costs.
Ruida control system
A 7-inch high-definition touchscreen with a graphical interface supports drag-and-drop file import, allowing new users to master it within 1 hour. It visually displays cutting progress, equipment status, and error codes, facilitating technical team support and reducing downtime.
Optical components
The focusing lens can achieve a minimum spot diameter of 0.1mm, making it particularly suitable for fine cutting (e.g., mobile phone films, flexible OLEDs), with a cutting kerf width of only 0.05-0.2mm.
- Reflective Lenses
