Air brake fittings

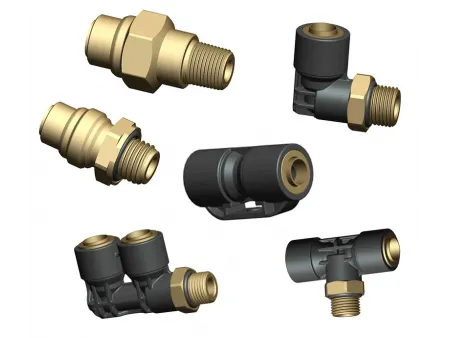

These push-to-connect fittings are essential components in the compressed air systems of commercial vehicles, offering quick and reliable connections between nylon tubes and various pneumatic devices, such as brakes and air suspension systems. Built to operate within a temperature range of -40°C to 104°C, they can withstand pressures up to 15 bar. The fittings are designed to work seamlessly with PA11 and PA12 nylon tubes that meet QC/T80, DIN74324, and SAE J844 standards.

The push-to-connect design allows for easy and fast assembly, securely connecting threaded ports to nylon tubes. When needed, the fittings can be disassembled and reconnected without hassle, providing flexibility for repeated use. The materials used for seals, including NBR, EPDM, and FKM, are chosen based on the fluid medium and environmental conditions, ensuring compatibility with compressed air, water, coolant, and hydraulic fluids. Compact and durable, these fittings are made from brass, nylon, and rubber seals, designed for easy installation in tight spaces while delivering long-lasting performance.

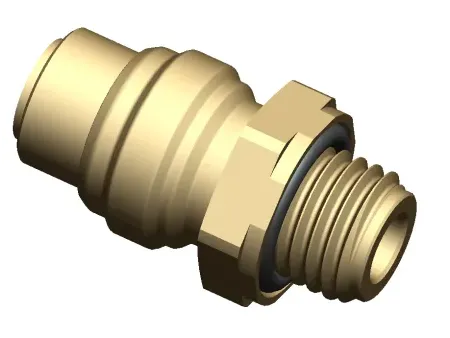

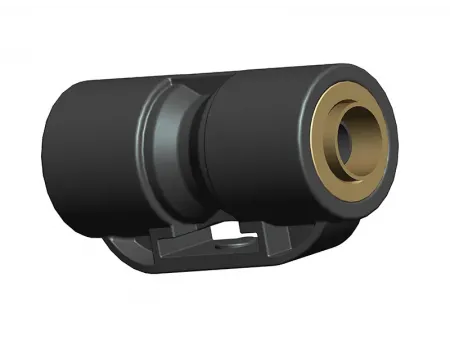

Swivel Connector

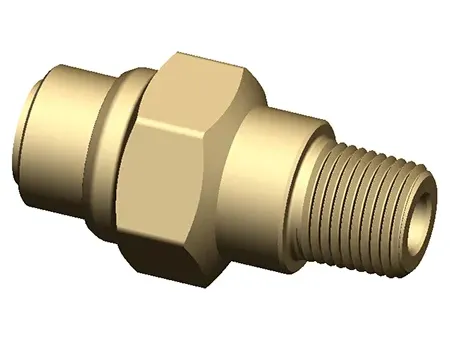

NPT Tapered Thread Quick Connect Fittings

Model	Thread	Connection Size
RQ83101N3E	NPT1/8	6×1
RQ83101N4E	NPT1/8	8×1
RQ83102N4E	NPT1/4	8×1
RQ83102N5E	NPT1/4	10×1.25
RQ83102N6E	NPT1/4	12×1.5
RQ83103N4E	NPT3/8	8×1
RQ83103N5E	NPT3/8	10×1.25
RQ83103N6E	NPT3/8	12×1.5

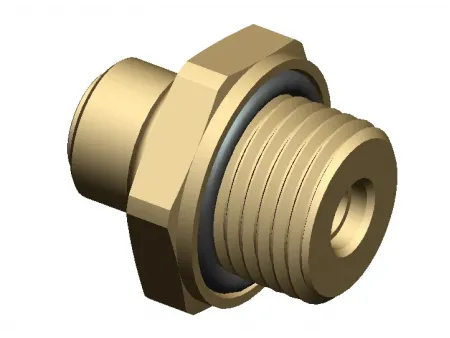

Metric Straight Thread Quick Connect Fittings

Model	Thread	Connection Size
RQ83110N3E	M10×1	6×1
RQ83112N3E	M12×1.5	6×1
RQ83112N4E	M12×1.5	8×1
RQ83112N5E	M12×1.5	10×1.25
RQ83114N4E	M14×1.5	8×1
RQ83116N3E	M16×1.5	6×1
RQ83116N4E	M16×1.5	8×1
RQ83116N5E	M16×1.5	10×1.25
RQ83116N6E	M16×1.5	12×1.5
RQ83116N7E	M16×1.5	14×1.5
RQ83116N8E	M16×1.5	16×2.0
RQ83122N3E	M22×1.5	6×1
RQ83122N4E	M22×1.5	8×1
RQ83122N5E	M22×1.5	10×1.25
RQ83122N6E	M22×1.5	12×1.5
RQ83122N7E	M22×1.5	14×1.5
RQ83122N8E	M22×1.5	16×2.0

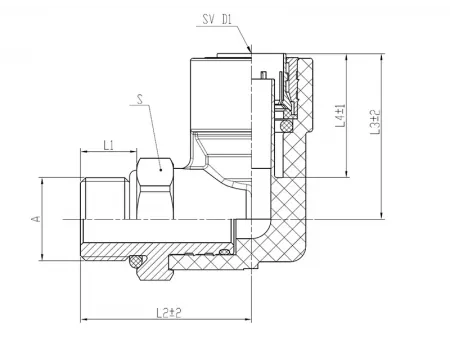

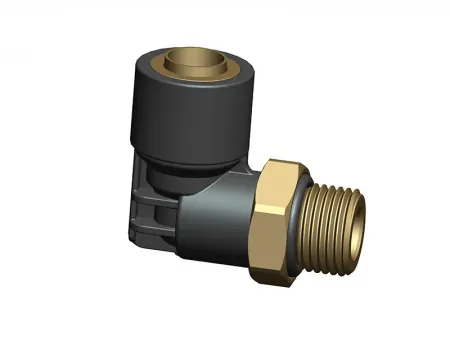

Composite 90 Deg Swivel Elbow

Model	D1	A	L1	S	L2	L3	L4
RQ83201N3E	6×1.0	NPT1/8-27	10	17	27.5	24.5	19
RQ83203N3E	6×1.0	NPT3/8-18	14.3	22	32	24.5	19
RQ83210N3E	6×1.0	M10×1.0	8	15	25.5	24.5	19
RQ83212N3E	6×1.0	M12×1.5	9	17	26.5	24.5	19
RQ83216N3E	6×1.0	M16×1.5	10.8	21	28.5	24.5	19
RQ83222N3E	6×1.0	M22×1.5	10.8	27	29.5	24.5	19
RQ83203N4E	8×1.0	NPT3/8-18	14.3	22	34	26.5	20.5
RQ83210N4E	8×1.0	M10×1.0	8	17	27.5	26.5	20.5
RQ83212N4E	8×1.0	M12×1.5	9	17	29	26.5	20.5
RQ83214N4E	8×1.0	M14×1.5	10.8	21	31	26.5	20.5
RQ83216N4E	8×1.0	M16×1.5	10.8	21	31	26.5	20.5
RQ83218N4E	8×1.0	M18×1.5	10.8	24	31.5	26.5	20.5
RQ83222N4E	8×1.0	M22×1.5	10.8	27	32	26.5	20.5
RQ83216N5E	10×1.25	M16×1.5	10.8	21	32	29	22
RQ83222N5E	10×1.25	M22×1.5	10.8	27	33	29	22
RQ83212N6E	12×1.5	M12×1.5	9	21	31	32	24
RQ83216N6E	12×1.5	M16×1.5	10.8	21	33	32	24
RQ83222N6E	12×1.5	M22×1.5	10.8	27	34	32	24
RQ83216N7E	14×1.5	M16×1.5	10.8	24	35	36	27
RQ83222N7E	14×1.5	M22×1.5	10.8	27	35	36	27
RQ83230N7A	14×1.5	M30×1.5	10	36	40	36	27
RQ83216N8E	16×2.0	M16×1.5	10.8	24	38.5	38.5	28
RQ83222N8E	16×2.0	M22×1.5	10.8	27	39	38.5	28

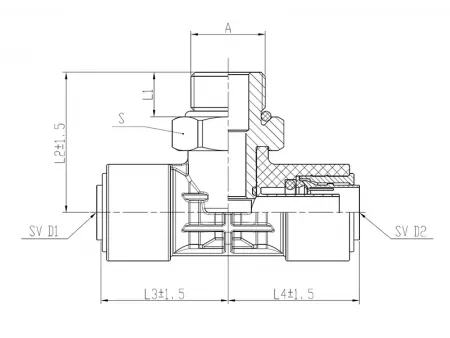

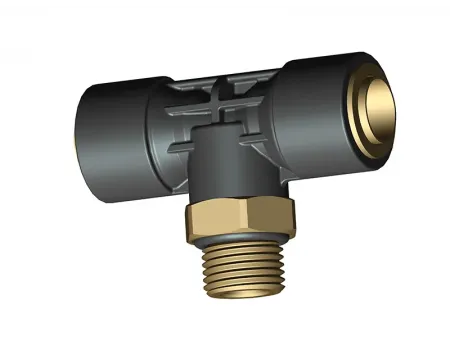

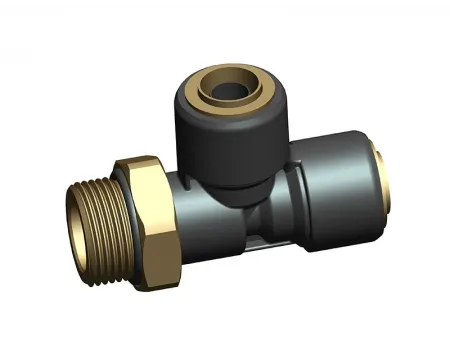

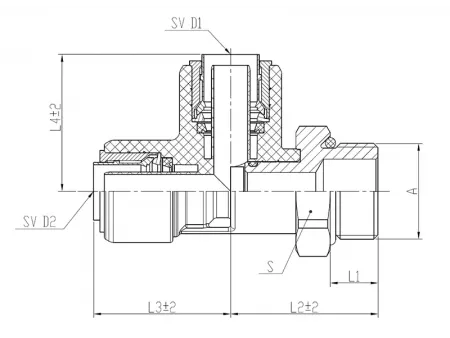

Composite Swivel Branch Tee

Model	D1	D2	A	L1	S	L2	L3	L3
RQ83412N3N3E	6×1.0	6×1.0	M12×1.5	9	17	26.5	24.5	24.5
RQ83412N3N4E	6×1.0	8×1.0	M12×1.5	9	17	29	26.5	25.5
RQ83416N3N3E	6×1.0	6×1.0	M16×1.5	10.8	21	28.5	24.5	24.5
RQ83403N4N4E	8×1.0	8×1.0	NPT3/8-18	14.3	22	34	26.5	26.5
RQ83412N4N4E	8×1.0	8×1.0	M12×1.5	9	17	29	26.5	26.5
RQ83416N4N4E	8×1.0	8×1.0	M16×1.5	10.8	21	31	26.5	26.5
RQ83422N4N4E	8×1.0	8×1.0	M22×1.5	10.8	27	32	26.5	26.5
RQ83422N4N6E	8×1.0	12×1.5	M22×1.5	10.8	27	34	28.5	32
RQ83416N5N5E	10×1.25	10×1.25	M16×1.5	10.8	21	32	29	29
RQ83416N6N6E	12×1.5	12×1.5	M16×1.5	10.8	21	33	32	32
RQ83418N6N6E	12×1.5	12×1.5	M18×1.5	10.8	24	34	32	32
RQ83422N6N6E	12×1.5	12×1.5	M22×1.5	10.8	27	34	32	32

Model	D1	D2	A	L1	S	L2	L3	L4
RQ83516N4N4E	8×1.0	8×1.0	M16×1.5	10.8	21	31	26.5	26.5
RQ83522N4N4E	8×1.0	8×1.0	M22×1.5	10.8	27	32	26.5	26.5
RQ83522N4N6E	8×1.0	12×1.5	M22×1.5	10.8	27	34	28	27.5
RQ83503N5N7E	10×1.25	14×1.5	NPT3/8-18	14.3	24	37	30.5	33
RQ83516N5T1E	10×1.25	Inflation valve	M16×1.5	10.8	21	32	29	25.5
RQ83522N5N7E	10×1.25	14×1.5	M22×1.5	10.8	27	34	30.5	32.5
RQ83516N6T1E	12×1.5	Inflation valve	M16×1.5	10.8	21	33	32	26
RQ83522N6N6E	12×1.5	12×1.5	M22×1.5	10.8	27	34	31.5	31.5
RQ83522N7N7E	14×1.5	14×1.5	M22×1.5	10.8	27	36	36	36
RQ83522N7T1E	14×1.5	Inflation valve	M22×1.5	10.8	27	35	35.5	27

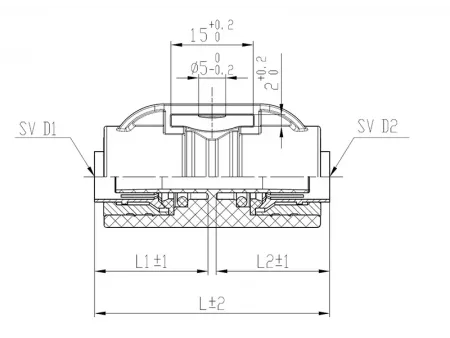

Composite Straight Union

Model	D1	D2	L	L1	L2
RQ831N3N3E	6×1.0	6×1.0	42	19	19
RQ831N3N4E	6×1.0	8×1.0	43	19	20.5
RQ831N4N4E	8×1.0	8×1.0	43	20.5	20.5

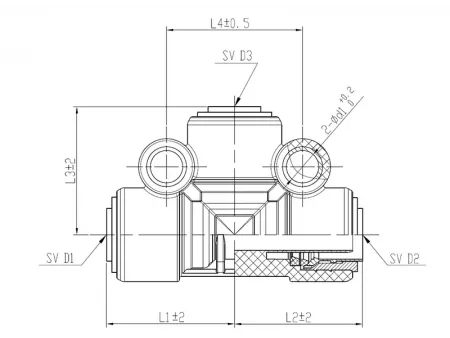

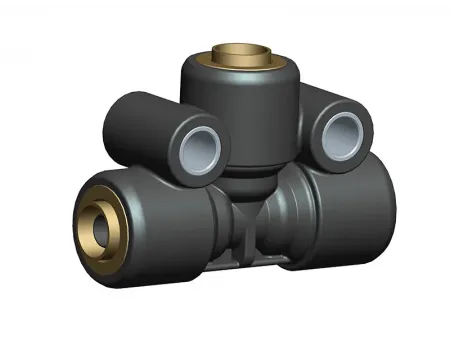

Composite Union Tee

Model	D1	D2	D3	L1	L2	L3	L4	d1
RQ834N3N3N3E	6×1.0	6×1.0	6×1.0	24.5	24.5	24.5	26.8	6.1
RQ834N4N4N4E	8×1.0	8×1.0	8×1.0	26.5	26.5	26.5	26.8	6.1
RQ834N5N5N5E	10×1.25	10×1.25	10×1.25	28.5	28.5	28.5	29.5	8.1
RQ834N6N6N6E	12×1.5	12×1.5	12×1.5	32	32	32	34	8.1
RQ834N7N7N7E	14×1.5	14×1.5	14×1.5	35.5	35.5	35.5	37	8.1

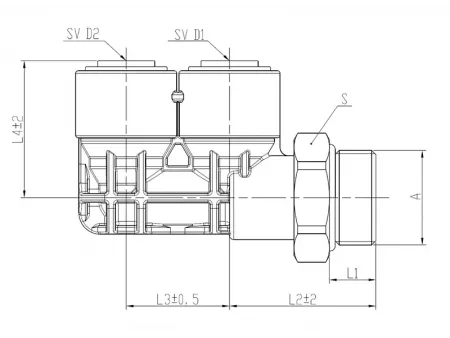

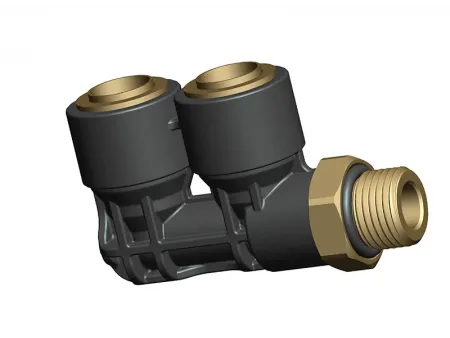

Composite Double Banjo Elbow

Model	D1	D2	A	L1	S	L2	L3	L4
RQ83601N3N3E	6×1.0	6×1.0	NPT1/8-27	10	17	27.5	18	24.5
RQ83603N3N3E	6×1.0	6×1.0	NPT3/8-18	14.3	22	32	18	24.5
RQ83610N3N3E	6×1.0	6×1.0	M10×1.0	8	15	25.5	18	24.5
RQ83612N3N3E	6×1.0	6×1.0	M12×1.5	9	17	26.5	18	24.5
RQ83612N3N4E	6×1.0	8×1.0	M12×1.5	9	17	28.5	19	25.5
RQ83616N3N3E	6×1.0	6×1.0	M16×1.5	10.8	21	28.5	18	24.5
RQ83616N3N4E	6×1.0	8×1.0	M16×1.5	10.8	21	30	19	25.5
RQ83622N3N3E	6×1.0	6×1.0	M22×1.5	10.8	27	29.5	18	24.5
RQ83622N3N4E	6×1.0	8×1.0	M22×1.5	10.8	27	31	19	25.5
RQ83622N3N5E	6×1.0	10×1.25	M22×1.5	10.8	27	33	20	29
RQ83622N3N6E	6×1.0	12×1.5	M22×1.5	10.8	27	34	21	32
RQ83603N4N4E	8×1.0	8×1.0	NPT3/8-18	14.3	22	34	20	26.5
RQ83603N4N6E	8×1.0	12×1.5	NPT3/8-18	14.3	22	36.5	22	32
RQ83612N4N4E	8×1.0	8×1.0	M12×1.5	9	17	28.5	20	26.5
RQ83616N4N4E	8×1.0	8×1.0	M16×1.5	10.8	21	31	20	26.5
RQ83616N4N5E	8×1.0	10×1.25	M16×1.5	10.8	21	32	21	29
RQ83616N4N6E	8×1.0	12×1.5	M16×1.5	10.8	21	33	22	32
RQ83622N4N4E	8×1.0	8×1.0	M22×1.5	10.8	27	32	20	26.5
RQ83622N4N6E	8×1.0	12×1.5	M22×1.5	10.8	27	34	22	32
RQ83622N5N5E	10×1.25	10×1.25	M22×1.5	10.8	27	33	22	29
RQ83622N5N7E	10×1.25	14×1.5	M22×1.5	10.8	27	34	26	35.5
RQ83616N6N6E	12×1.5	12×1.5	M16×1.5	10.8	21	33	24	32
RQ83622N6N6E	12×1.5	12×1.5	M22×1.5	10.8	27	34	24	32
