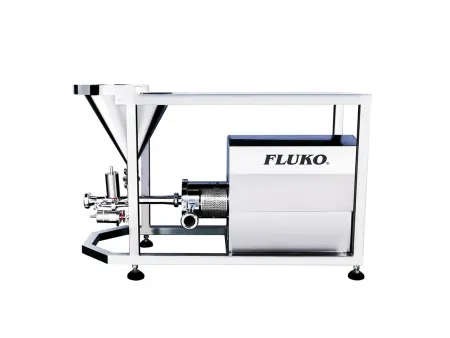

PD-VT Powder Liquid Mixer
Request a Quote
Solid-liquid mixing system for large-volume dispersion of powders into liquids
This self-contained powder-liquid mixing equipment is designed to handle large volumes of powder dispersion. The mixing system feeds powders to the mixing chamber through a hopper feed and ensures rapid feeding, wetting, and thorough dispersion without any agglomeration, making it ideal for large-scale powder-liquid mixing operations.
Key Specifications
- Power (kW) 45-55
- Speed (rpm) 6000
- Powder suction rate (suction hose) (kg/min) 3-50
- Powder suction rate (hopper) (kg/min) 10-400
Specifications
| Model | Rated power (kW) | Centrifugal pump power (kW) | Inlet/outlet size (inch) | Max. flow rate (m³/h), H₂O | Max. powder suction rate (kg/min) |
| 2.2 | 4 | 2.5/1.25 | 8 | 18 | |
| 7.5-11 | 4-5.5 | 2.5/2 | 16 | 25 | |
| 15-22 | 4-5.5 | 2.5/2.5 | 25 | 80 | |
| 22-30 | 5.5-7.5 | 2.5/2.5 | 30 | 100 | |
| 30-37 | 7.5 | 2.5/3 | 30 | 120 | |
| 30-45 | 7.5 | 3/3.5 | 40 | 120 | |
| 37-55 | 15 | 3.5/3.5 | 50 | 200 | |
| 55-75 | 18.5 | 4/4 | 80 | 300 |
