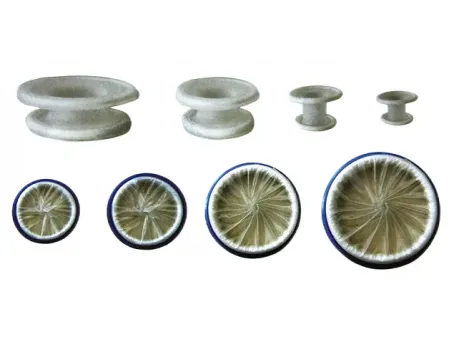

Wound Protector/Retractor
Request a Quote
Single-use Disposable Medical Products Manufacturer Since 1997
Surgical Meshes
- Sterilization: sterile (ethylene oxide sterilization), single-use
- Components: external ring, internal ring, open-ended cylinder
- Type: fixed height, variable height
Ensuring a clear surgical field and minimizing the risk of infection are crucial in both minor and minimally invasive surgeries. We offer wound protector/retractor designed to expand the surgical site, protect the incision from damage, and significantly reduce the risk of infection. Our wound protectors are known for their superior quality and reliability, providing essential support during delicate procedures.
Specifications
| Type | Code | Outside Diameter of External Ring (mm) | Outside Diameter of Internal Ring (mm) | Outside Diameter of Cylinder (mm) | Height (mm) | Deviation (mm) |
| Fixed Height (D) | YS-40/30-15/25(D) | 40 | 30 | 15 | 25 | 10 |
| YS-50/40-15/20(D) | 50 | 40 | 15 | 20 | ||
| YS-50/40-25/25(D) | 50 | 40 | 25 | 25 | ||
| YS-50/50-25/30(D) | 50 | 50 | 25 | 30 | ||
| YS-60/50-25/25(D) | 60 | 50 | 25 | 25 | ||
| YS-60/50-25/50(D) | 60 | 50 | 25 | 50 | ||
| YS-70/60-35/50(D | 70 | 60 | 35 | 50 | ||
| YS-70/70-35/25(D | 70 | 70 | 35 | 25 | ||
| YS-70/70-35/30(D | 70 | 70 | 35 | 30 | ||
| YS-70/70-35/40(D) | 70 | 70 | 35 | 40 | ||
| YS-100/50-35/5(D) | 100 | 50 | 35 | 5 | ||
| YS-120/100-60/25(D） | 120 | 100 | 60 | 25 | ||
| YS-120/100-60/40(D） | 120 | 100 | 60 | 40 | ||
| YS-120/100-60/70(D) | 120 | 100 | 60 | 70 | ||
| YS-120/120-60/25(D) | 120 | 120 | 60 | 25 | ||
| YS-120/120-60/40(D） | 120 | 120 | 60 | 40 | ||
| YS-150/70-60/5(D) | 150 | 70 | 60 | 5 | ||
| Variable Height (B) | YS-60/70-60/150(B) | 60 | 70 | 60 | Adjustable 40-150 | 10 |
| YS-80/90-80/150(B） | 80 | 90 | 80 | Adjustable 40-150 | ||
| YS-120/130-120/250(B) | 120 | 130 | 120 | Adjustable 40-250 | ||
| YS-150/160-150/250(B) | 150 | 160 | 150 | Adjustable 40-250 | ||
| YS-180/190-180/250(B) | 180 | 190 | 180 | Adjustable 40-250 | ||
| YS-220/230-220/250(B) | 220 | 230 | 220 | Adjustable 40-250 | ||
| YS-270/280-270/250(B) | 270 | 280 | 270 | Adjustable 40-250 | ||
| YS-320/330-320/250(B) | 320 | 330 | 320 | Adjustable 40-250 |
- The dimensions indicated are nominal sizes. Given that various parts may deform, a dimensional tolerance of ±10mm is allowed. Custom sizes can be made to meet clinical requirements.
- The incision length must be slightly smaller than the external diameter of the tube (approximately 10mm) to prevent the protector from moving and affecting the surgery.
