Water Flow Regulator

Request a Quote

View All: http://plastics-machines.com/4-5-water-flow-regulator.html

SFR

Used with mould heating and cooling systems for improved plastic molding efficiency

The water flow regulator is designed to work with mould heating and cooling systems, significantly improving the efficiency of plastic molding processes. This plastic auxiliary equipment ensures precise water flow control, helping to maintain consistent mould temperatures and enhance product quality.

Features

Highly expandable and customizable to meet specific customer requirements.
Engineered for longevity, providing reliable performance over extended periods.
Features adjustable water flow with a visible flow display, allowing immediate detection of blockages in the mould circuit to prevent defects.
Ensures consistent product shrinkage through precise and reliable mould temperature control.
Designed for easy assembly and disassembly, making maintenance and cleaning straightforward.
Operates without energy consumption, enhancing its efficiency.
Allows for intuitive adjustment to the required flow rate.
Equipped with precision adjustment valves for more accurate water flow control.
Comes with a standard cleaning brush for easy maintenance.

Applications

This water flow regulator is ideal for use with water-heater mould temperature controllers, water chillers, and cooling towers. It can connect to multiple mould interfaces simultaneously, providing temperature display, flow display, and flow control functionalities to meet diverse operational needs. Its modular design and easy assembly make it an essential component for improving efficiency in the modern plastic processing industry.

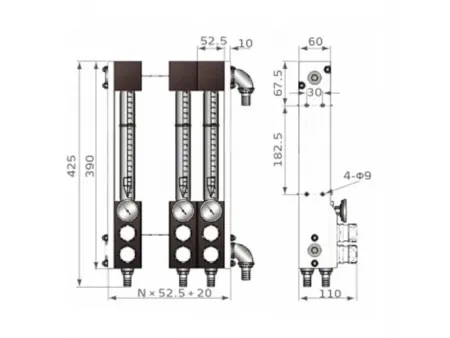

Overall Dimensions

Model	Tube quantity (N)
SFR-200	2
SFR-400	4
SFR-600	6
SFR-800	8
SFR-1000	10
SFR-1200	12

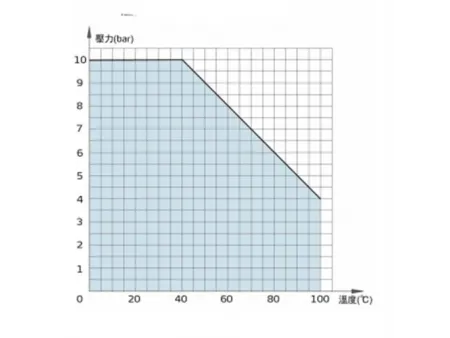

Technical Parameters

Max. temperature:100℃ (210F)
Max. pressure: 10bar
Flow rate (single pipe): 0~18L/min Quick-release connector: 3/8' G male thread
Water connector: 3/4' PT female thread
