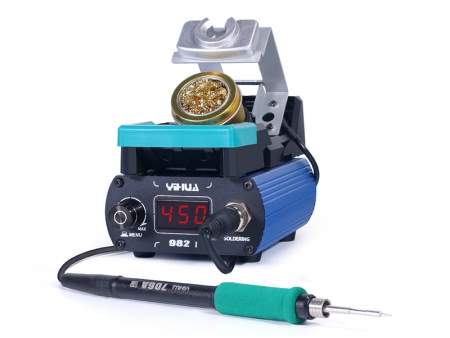

982 Soldering station
YIHUA 982 fast heating soldering station comes with C210 soldering Iron, which is used for electronic components soldering and rework.
Parameters| Input voltage | AC 110~240V, 50~60Hz |
| Rate power | 40W (210 Handpiece) |
| Handle | 210 |
| Temperature range | 90~450 ℃ / 194~842 ℉ |
| Main unit dimensions | L147*W143*H106±5mm |
| Ambient temperature | 0~40 ℃ / 32~104 ℉ |
| Display | LCD |
| Tip-To-Ground resistance | < 2 Ohms |
| QTY | 16 PCS/CTN |
| Inner box size | 20.8*19.8*12.8 cm |
| Master carton size | 43*41*52.5 cm |
| Unit weight | 1.2 kg/PCS |
| CTN weight | 20 kg/CTN |
1. In only 3 seconds, the soldering station can heat up to 380℃.
2. Easy to disassemble and install heating element.
3. The soldering station features functions up to 5, one Hotkey to Operate.
4. Fahrenheit/Celsius can be easily switched to meet different market demands.
5. Four Programmable Presets Available
You can preset temperature in each memory channel for different needs. When soldering, you can quickly select the suitable preset temperature settings in CH1/CH2/CH3/CH4 according to different soldering applications.
6. Digital Temperature Correction Function
When temperature deviation happens because of environmental impact or replacing the spare parts such as heating element, soldering iron, you can use this function to correct.
7. Sleep Mode
When the soldering iron is placed back into the holder, and if the set temperature higher than 200℃/392℉, the iron will enter sleep mode, and cool to 200℃/392℉. If the set temperature is below 200℃/392℉, it will remain unchanged. You can pick up the soldering iron to wake the station. This extends the lifespan of the heating element, conserves energy, and protects the environment.
8. Automatic Shut-Down
When the soldering iron enters sleep mode and not be picked up within approximately 30minutes, the soldering station will automatically shut off, you can pick up the soldering iron to restart the soldering station. This prevents leaving the station ON unsupervised, or forgetting to turn OFF the station.
9. Buzzer Prompt
The soldering iron has built-in buzzer to remind.
