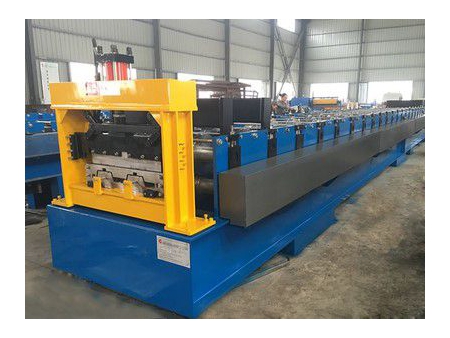

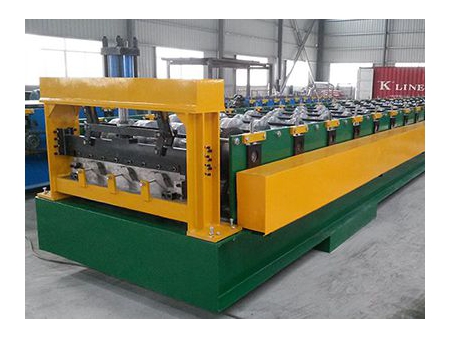

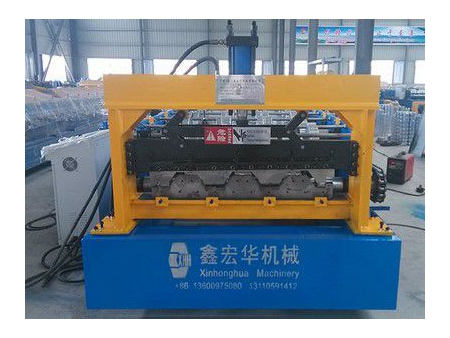

YX45-975.8 Floor Decking Roll Forming Machine
Request a Quote
- Easy operation, low maintenance cost
- Higher quality, available for rolling the max steel thickness 1.5mm with 550mpa
- High cost performance
Samples
Profiles
| Model | YX45-975.8 |
| Dimension | 16000*1800*1500mm |
| Hydraulic Motor Power | 37KW |
| Forming Steps | 30 steps |
| Forming Speed | 10-15m/min |
| Voltage | 380V/50HZ/3PH |
| Material Thickness | 0.8-1.2mm or 0.8-1.5mm |
| Rib Height of Decking | 45mm |
| Effective Cover Width of Decking | 975.8mm |
| Feeding Material Width | 1219mm |
| Roller Material | Gcr15 steel with Heat Treatment and Plate Hard Chrome on the surface |
| Shaft Material | 40Cr Steel |
| Cutter Material | Cr12Mov with Heat Treatment |
| Control System | PLC Control |
-
Cutter is made of Cr12Mov mold steel, HRC60-62
-
Rollers manufactured from high quality Gr15 mold steel 45# steel, CNC lathes, Heat Treatment. With black treatment or hard-chrome coating for options. Body frame made from 400# H type steel by welding
-
Hydraulic pre cutter available operation for the hydraulic pre cutter, to save the material
- Main Machine
- 5 Tons Hydraulic Uncoiler
- Hydraulic Forming Cutter (Material: Cr12Mov with heat treatment)
- Hydraulic Motor System
- PLC Computer Controlling System with touch Screen (Brand: Schneider)
- Tools
- Operation Manual
