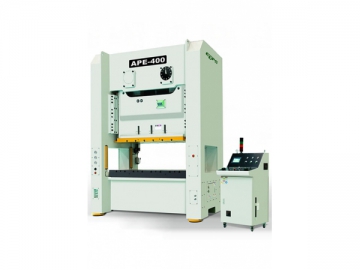

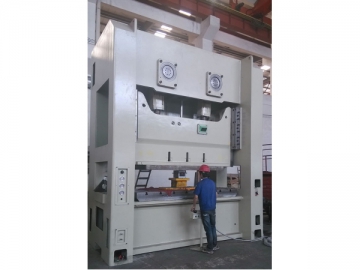

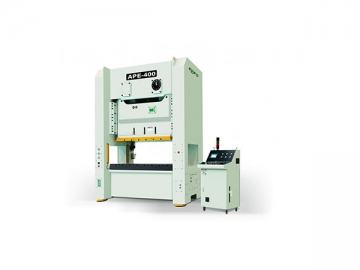

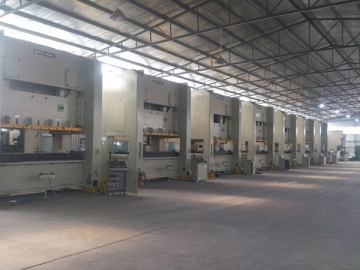

H Frame Double Crank Press (160-600 Tons), APE Series

Request a Quote

View All: http://stampingpress4u.com

H Frame Power Press | Stamping Press for Automotive Parts | 160 - 600 Metric Tons Capacity

Our APE series H frame double crank presses are precision presses that feature incredibly fast operation with all of the safety features that you look for in a press machine. The slide adjustment mechanism is accurate to within 0.1mm. The crank presses are suitable for sheet metal cutting, punching, bending and other sheet meal forming processes for the production of automotive parts, household products and electronics components. The punching machine features a spacious desk pate with an opening that allows for single and multiple project operation. It also allows the machine to be connected to an automatic transfer device or servo driven robot for automatic feeding.

Performance features

1. Super rigid steel frame
The metal forming press is designed to resist deflection and vibration caused by the immense forces produced during stamping. The reinforced frame allows the machine to produce accurate pressings with a longer die life, even at full tonnage loads.

2. High precision
The H frame double crank press adopts a transmission mechanism to maximize precision for the entire lifetime of the machine. The crankshaft, gears, gear shafts, and other friction parts are hardening with a heat treatment and are further processed by grinding to increase wear resistance and balance.

3. Automatic processing
This stamping press for automotive parts features a closed electrical circuit design that can be paired with a variety of automated devices.

4. Stable and safe
These motor stator stamping presses are built to meet all relevant safety standards. They adopt a highly sensitive and reliable clutch/brake and top duplex magnetic valve, as well as overload protection devices to guarantee precision and safety of the slide during running and stopping.

Standard configuration

1.Dry clutch brake
2.Standard operating system
3.Model choice/switching/adjusting/one stroke/continuous operating
4.Oil pressure overload protection device
5.Over-run safety device
6.Duplex magnetic valve
7.Misfeed detection device
8.Electric slider adjusting device
9.Die height indicator (unit: 0.1 mm)
10.Electric lubricating device
11.Accumulative counter (6 digits)
12.Preset counter (6 digits)
13.Maintenance counter (6 digits)
14.Life counter (6 digits)
15.Electronic rotary cam switch (6 connections)
16.Air jetting device 1/2＂ primary circuit
17.Air source connector 1/2＂ secondary circuit
18.Error detection socket
19.Power socket (only apply to single-phase 110V power)

Optional configuration

1.Wet clutch brake
2.Die cushion device
3.Vs variable-speed motor
4.Touch-screen device
5.Photo-electric safety device
6.Upper slider feeding device
7.Main motor inversion device
8.Foot switch
9.Safety stop and safety plug
10.T-type double handed button operating floor
11.Inspection variable connection magnetic valve
12.Anti-vibration mechanical foot
13.Rapid mold exchanging device
14.Upper die clamper
15.Lower die clamper
16.Die lifter
17.Mould-shift arm
18.Basic bolt and soleplate
19.Automatic feeding device
20.Three-in-one NC straightening feeder
21.NC idler wheel feeder
22.Two-in-one feeder and straightening machine
23.Straightening machine

Model	APE-160	APE-200	APE-250	APE-300	APE-400	APE-500	APE-600	Model	A	B
Slide Plate Area(LR × FB)	1600 × 650	1850 × 750	2100 × 900	2200 × 900	3100 × 1000	3200 × 1000	3400 × 1100	a	22	28
Type of T-Slot	A	3	B	3	3	B	B	b	37	48
Type of T-Slot	6	6	6	6	6	6	6	c	24	28
b6	375	375	450	450	600	600	600	d	16	20
b7	125	125	150	150	200	200	200	R	1	1

Overall dimension

Specification	APE-160		APE-200		APE-250		APE-300		APE-400		APE-500		APE-600
Model	S	H	S	H	S	H	S	H	S	H	S	H	S	H
AA	2590		3000		3700		3700		4100		4300		4700
AB	2240		2700		3350		3350		3750		3900		4250
AC	1800		2200		2500		2500		3200		3300		3500
AD	1880		2290		2800		2800		3300		3450		3650
AE	1600		1850		2100		2100		2800		2900		3100
BA	1400		1750		1800		1800		2100		2300		2550
BB	1200		1550		1450		1450		1940		2050		2200
BC	700		900		900		900		900		1000		1100
BD	2150		2500		2950		2950		3129		3750		3900
HA	800		900		1000		1000		1200		1200		1200
HB	450	400	500	450	550	450	550	450	550	450	580	480	600	500
HC	190	130	250	150	280	170	300	170	300	170	300	180	300	180
HD	3400	3300	3750	3600	4250	4040	4400	4170	5195	4965	5870	5620	6100	5870
HF	900		900		1000		1000		1150		1150		1150
HE	450		600		600		600		600		600		600

Technical parameters of H Frame Double Crank Press

Name	Unit	APE-160		APE-200		APE-250		APE-300		APE-400		APE-500		APE-600
Model		S	H	S	H	S	H	S	H	S	H	S	H	S	H
Capacity	Ton	160		200		250		300		400		500		600
Rated tonnage point	mm	6	3	6	3	7	3	7	3	7	3	10	6	10	6
Stroke	mm	180	130	250	150	280	170	300	170	300	170	300	180	300	180
Stroke per minute	s.p.m	30-55	40-85	20-50	35-70	20-40	30-60	20-35	30-50	20-30	20-40	18-25	20-30	15-25	20-30
Die height	mm	450	400	500	450	550	450	550	450	550	450	580	480	600	500
Slide adjustment	mm	100		120		120		120		120		120		120
Slide area	mm	1600×650		1850 × 750		2100×900		2100×900		2800×1000		2900×1000		3100×1100
Bolster area	mm	1800 × 760		2200×940		2500×1000		2500×1000		3200×1000		3300×1200		3500×1200
Side opening	mm	700×450		900×600		900×600		900×600		900×600		1000×750		1100×750
Main motor	KwxP	15×4		18.5×4		22×4		30×4		37×4		45×4		55×4
Slide adjust mechanism	KwxP	1×4		2×4		2×4		2×4		2×4		3×4		3×4
Air pressure	kg/cm²	6		6		6		6		6		6		6
Press precision		GB(JIS)1 class
