Inlet Control Valve and Temperature Probe
When the water pressure is no more than 1.75Mpa, there are no leaks and water flow reaches 4 to 4.5L/minute under a water pressure of 1.2MpA.
Installation torque≥40Nm
When the water pressure is no more than 1.75Mpa, there are no leaks.
Installation torque≥40Nm
Optional heating element for anti-ice protection
When the water pressure is no more than 1.75Mpa, there are no leaks.
Installation torque≥40Nm
Optional temperature probe
When the water pressure is no more than 1.75Mpa, there are no leaks.
Installation torque≥40Nm
Optional heating element for anti-ice protection
When the water pressure is no more than 1.75Mpa, there are no leaks.
Under the water pressure of 0.1Mpa, it allows for a water flow of 4 to 45.L/minute at low water levels, and a water flow of 9.5-10L/minute at a high-water level.
Installation torque≥40Nm
When the water pressure is no more than 1.75Mpa, there are no leaks.
Installation torque≥40Nm

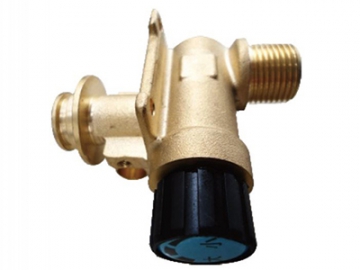

Adjustable pressure relief
When the water pressure is no more than 1.75Mpa, there are no leaks.
Installation torque≥20Nm

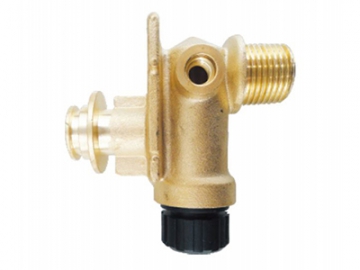

Adjustable pressure relief
When the water pressure is no more than 1.75Mpa, there are no leaks.
Under the water pressure of 0.1Mpa, it allows for a water flow of 2-3L/min at low water levels and a water flow of 9.5-10L/min at high water levels.
Installation torque≥20Nm
When the water pressure is no more than 1.75Mpa, there are no leaks.
Under the water pressure of 0.1Mpa, it allows the water flow of 2-3L/min at a low water level and a water flow of 9.5-10L/min at high water level.
Installation≥20Nm
When the water pressure is no more than 1.75Mpa, there are no leaks.
Installation≥20Nm
Adjustable pressure relief
| Probe resistance | 25℃=10KΩ, 50℃=4.1507KΩ, 86=1.3917KΩ |
| Probe resistance error | within ±1% |
| Working medium | Water |
| Allowable pressure resistance | ≤1.75Mpa |
Application:
Tankless water heater
Gas boiler
