Glass Print Drying Oven

Request a Quote

View All: http://temperedglass-en.com/6-1-8-glass-drying.html

Glass Drying

Glass Drying

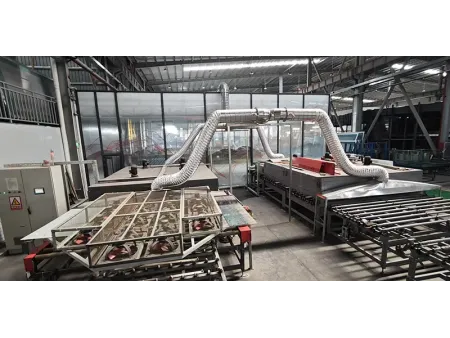

IR glass dryer for drying and cooling of printed glass

Max. glass width 2500mm
Glass thickness 3-19mm
Conveying speed 1-5m/min

Heating Zone

The heating zone of the glass print drying oven consists of 2 sections, each with independently adjustable and controllable temperatures. The temperature is adjustable up to 200°C.
The drying method uses medium-wave tubes, which can be grouped and controlled. Each section contains 9 lamp tubes that can be switched on/off simultaneously or individually.
Each section has a 1.5KW fan circulation system, ensuring uniform airflow in the heating zone.
The heating zone is insulated with aluminum silicate material.
There is an adjustable exhaust outlet for waste gas, allowing adjustment of the exhaust volume as needed.

Cooling Zone

The cooling zone of the glass print drying oven consists of 1 section, with multiple 370W axial fans blowing air downwards.
The cooling zone's operation surface uses a single-side cylinder lifting mechanism, making internal maintenance more convenient.

Technical Specifications

Max. glass width	2500mm
Min. glass size	700×800mm
Glass thickness	3-19mm
Conveying width	2500mm
Conveying direction	Short edge leading
Conveying height	900 ±20mm
Conveying speed	1-5m/min
Power supply	6.5kW/ 50Hz/380V
Air cooling length	2000mm

Ready to enhance your production line with high-quality glass drying technology? Contact us now to get your glass print drying oven and take your glass printing to the next level!
