3D Panel Welding Machine

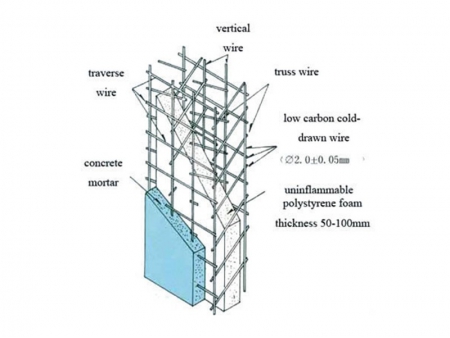

This 3D panel welding machine is used to produce structural reinforced concrete panel, also called "3-D" panel. This three-dimensional panel usually adopts 50mm thick uninflammable polystyrene panel as core. One side or both sides of the panel are covered with steel wire welded mesh. Steel wire truss pierces through the polystyrene core completely.
As a new-style wall panel material with many perfect performances, this panel offers lightweight, easy & quick installation, energy saving, thermal insulation, sound insulation, damp proofness etc.
It is comprised of plain mesh welding machine, 3D mesh frame welding machine, steel wire winding machine, wire straightening & cutting machine, air compressor & storage tank, hand spot welder for repairing.

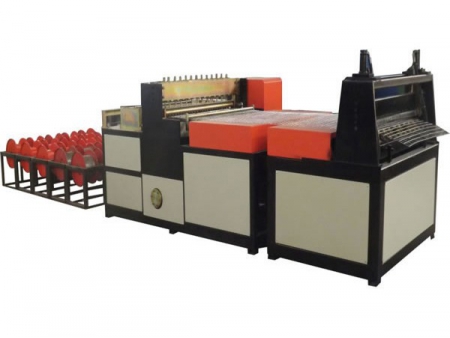

Automatic plain mesh welding machine
This machine adopts electrical & electronics synchronous control technology. Both welding time and separate-control welding are controlled by digital integrated circuit. It is equipped with precise web cutting & positioning device which ensures uniform length and regular edges.
- Wire diameter: 1.5-2.8mm
- Welding speed: 45 times per minute
- Grid dimension: 50*50mm-200*200mm
- Rated power: 75kVA
- Mesh width: 1200mm
- Dimension: 2.5x2.1x1.4m
- Number of warp: 24*
- Weight: 2.5T
Note: * 25 warps are optional.

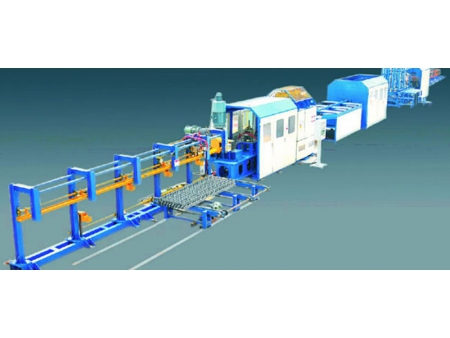

3D mesh frame welding machine (truss welding machine)
This machine is PLC control, controlled on touch screen, driven by pneumatic and step motor. It can produce 3-D panel full automatically.
- Rated power75kVA
- Input voltageAC380V, 50Hz*
- Air source allocated3m3/min, 0.6MPa
- Suitable materials (EPS/XPS panel)30mm-100mm thick, uninflammable
- Suitable materials (Truss wire)Single/double plain mesh, different density of truss wire; Wire diameter 2.0-3.0mm
- Suitable materials (Plain mesh)52mm x 50mm or 50mm x 50mm
- Production scale (Standard size: 3000mm x 1220mm (LxW)**)About 300,000-350,000 square meters per year
- Weld missing rateLess than 5%
- Welding strengthmore than 330N
- Overall dimension (Length x Width x Height)13.5 x 1.8 x 1.7m
- Weight4000kg
Note: * Electric power supply can be specially ordered.
** Machine for bigger size 6000mm x 1220mm is optional.
Wire straightening & cutting machine
Cutting motor power 1.5kW, suitable max. wire diameter 4mm.
Steel wire winding machine
Motor power 1.5kW, max. wire diameter 4mm.
Air compressor & storage tank
Flux: 3m3/min, pressure 0.6-0.8Mpa, motor power 9kW, storage tank capacity 1m3.
Manual spot welding machine
Electric power 75kVA.
Wire decoiler
Passive drive, capacity 2000kg
