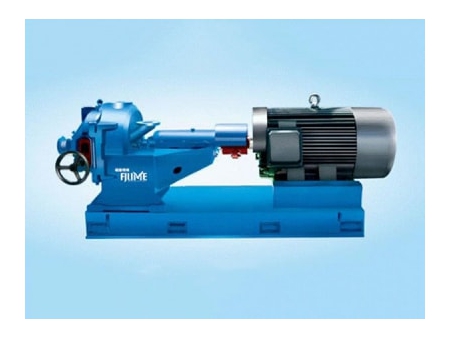

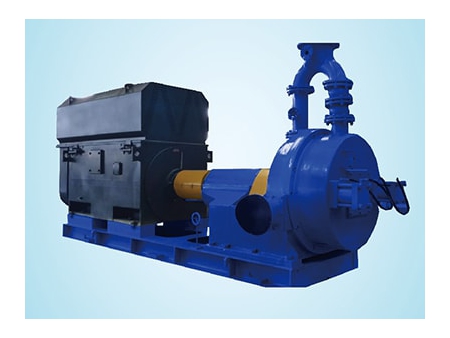

Double Disc Refiner
Request a Quote
The double disc refiner is an ideal piece of pulping equipment, which is widely used in waste paper recycling system and paper making industry.
Features
The double disc refiner features compact structure, high work efficiency, low energy consumption and easy maintenance.
Specifications of Double Disc Refiner
Model | ZDP11 | ZDP12 | ZDP13 | ZDP14 | ZDP15 | ZDP16 | ZDP17 | ZDP18 |
Refiner Disc Dia (Mm) | φ450 | φ500 | φ550 | φ600 | φ660 | φ720 | φ900 | φ1100 |
Capacity (T/d) | 8~80 | 10~100 | 10~120 | 10~150 | 15~200 | 15~250 | 20~400 | 40~800 |
Pulp Consistency (%) | 2.5~5 | |||||||
Inlet Pressure (Mpa) | 0.15~0.25 | |||||||
Outlet Pressure (Mpa) | 0.25~0.4 | |||||||
Motor Power(KW) | 90-160 | 132-200 | 160-250 | 185-315 | 220-500 | 250-800 | 315-1000 | 400-1800 |
