Strapping Machines for Corrugated Cardboard

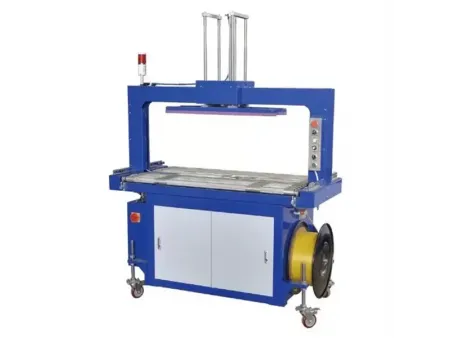

TS automatic strapping machine is designed for the carton, corrugated board, paper box, color box, and printing industries. By replacing manual strapping, the automatic carton strapper reduces labor requirements and requires only one operator during normal production.
The automatic strapping system is suitable for bundling cartons, corrugated sheets, paperboard, large-format materials, newspapers, books, and clothing.
Specifications
- Max. tying size (L×W): 1000×800mm
- Min. tying size (L×W): 200×160mm
- Table depth: 320mm
- Tying speed: 1.2 seconds/knot
- Twine type: 28# tying twine
- Motor power: 370W
- Power supply: Single-phase 220V
- Machine size: 1550×1160×1620mm
- Weight (N.W\G.W.): 220kg\270kg
Features
- Fast operation: Fast strapping operation reduces handling time and simplifies daily packaging work.
- High efficiency: Automated bundling improves packaging efficiency while helping control labor and operating costs.
- Stable operation: Electronic controls provide stable operation with low power consumption.
- Low energy consumption: The machine consumes approximately 3 kWh per day and is designed for durable operation and straightforward maintenance.

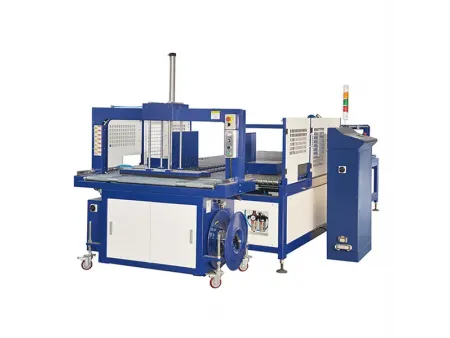

The fully automatic PE strapping machine is designed for high-speed bundling of cartons using PE strapping, ensuring they remain secure during transport. This strapping machine integrates seamlessly with automatic gluing and stitching lines, operating through touch screen controls and PLC systems. It achieves impressive speeds of up to 18 bundles per minute, significantly reducing labor to 1 or 2 operators and boosting overall efficiency, making it ideal for large-scale operations.
Specifications
- Machine speed: 18bundles/min
- Strap type: 28＃
- Strapping method: double straps
- Voltage: 380V
- Working pressure: 0.6Mp
- Air compressor: 0.9m³
- Total power: 2.6kW
- Operation power: 1.5kW
- Dimensions: 5000×2600×1900mm
- Machine weight: 2500kg

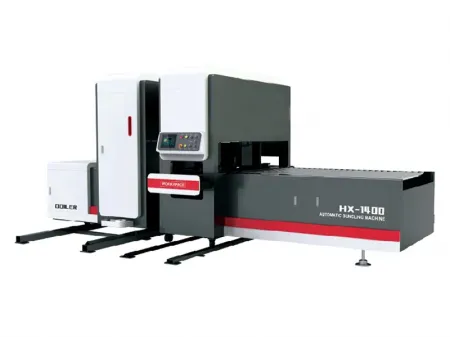

This high-efficiency strapping machine is designed for post-production packaging, automating the entire strapping process for a variety of products such as beverage cartons, tile boxes, and premium packaging materials. It integrates seamlessly with fully automatic gluing or stitching machines, making it a crucial addition to any high-volume production line. Capable of processing up to 200 cartons per hour, it significantly reduces labor needs by 2-4 operators compared to standard strapping machines and by 10-20 operators compared to manual methods. Its advanced design ensures strong, secure bundling with minimal edge damage.
Specifications
- Max. sheet size: 1200×1200mm
- Min. sheet size: 300×400mm
- Strapping speed: 10bundles/min, 2straps/bundle
- Machine dimensions (L×W×H): 5800×2300×1800mm
- Power supply: three phase 380V
- Total power: 2.2kW
- Machine weight: 2.1T
Designed for securely packaging bulky and compressible items, this strapping machine uses adjustable pneumatic or hydraulic pressure to apply firm strapping. It is ideal for items such as canvas, cement bags, and various other voluminous products, ensuring they remain compact and secure during transport. This efficient method reduces transport space and associated costs.
Specifications
- Power supply: 3 Phase, 380V, 50/60Hz, 750W, 5A
- Strapping speed: 50straps/min
- Table height: 450-750mm (customizable)
- Frame size: width 800mm (height customizable)
- Strapping method: intermittent/continuous hand switch, foot switch
- Strap thickness: 0.55-1.2mm (customizable)
- Strap width: 9-15mm (customizable)
