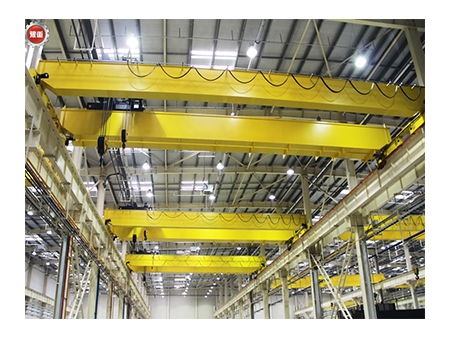

EOT crane is a new generation of technologically innovative lifting equipment.
This electric overhead travelling crane has compact structure, wide work range, light dead weight, small dimension, low noise, low impact force and high stability.

Features

Improved speed control, faster and more accurate load positioning
Increase the operation range of the crane
High transmission efficiency and strong bearing capacity
Compact structure, low noise, no oil leak, long lifetime
Light dead weight (reduce 15%-30% weight)

Two Types of EOT Cranes Available

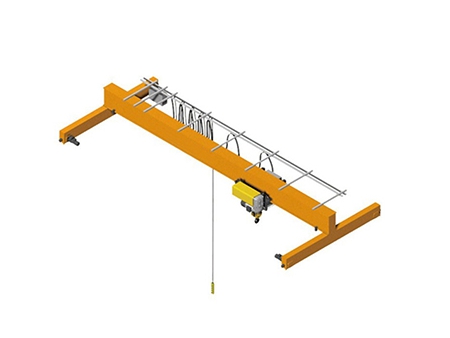

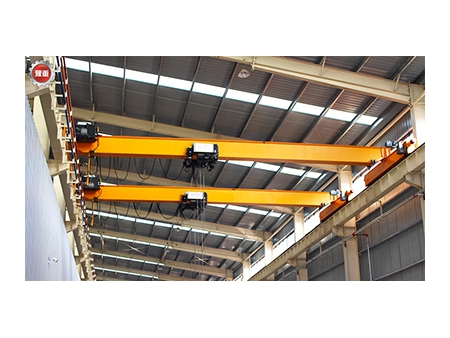

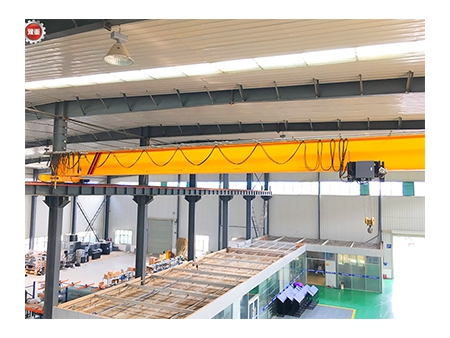

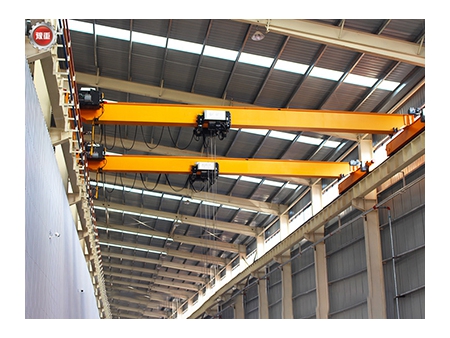

1）Single Girder EOT Crane

Specification

Capacity	1.0t-20t
Span	10.5m-31.5m
Lifting height	6-30m
Working class	A5-A7
Power supply	380V 50Hz, 3phase or customized
Control method	Radio remote control, pendant control
Brands of main electric parts	Schneider and ABB
Motor brand	ABB and Siemens
Protection level	IP55
Working temperature	-20~60℃

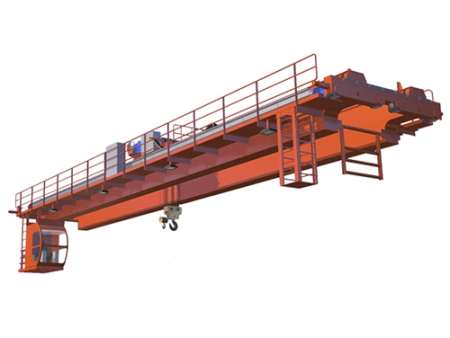

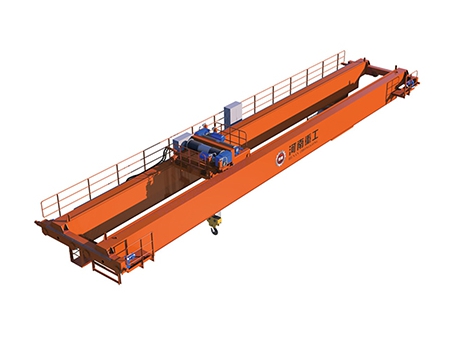

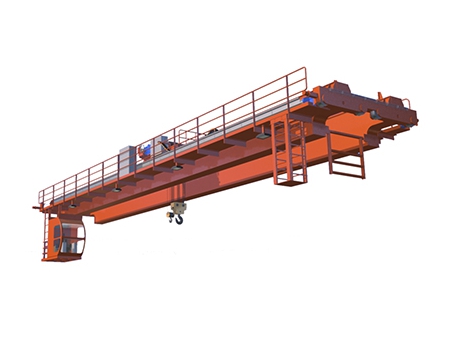

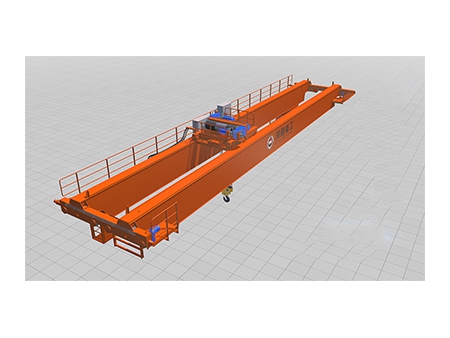

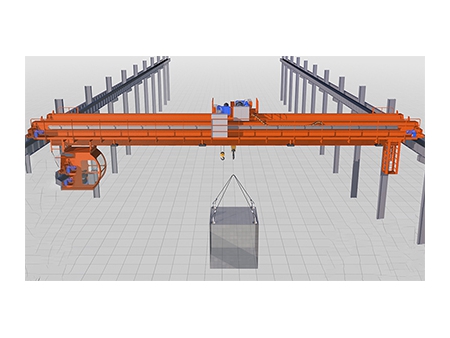

2）Double Girder EOT Crane

Specification

Capacity	1.0t-80t
Span	10.5m-31.5m
Lifting height	6-30m
Work class	A5-A7
Power supply	380V 50Hz, 3phase or customized
Control method	Radio remote control, pendant control
Brands of main electric parts	Schneider and ABB
Motor brand	ABB and Siemens
Protection level	IP55
Working temperature	-20~60℃

Structure of EOT Crane

2. Main beam
  Use bias-rail box type structure, with optimized design and light dead weight
  Material: Q235B

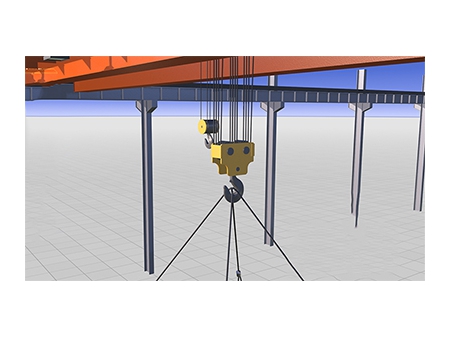

2. Hook
  The hook limitation is very small, which improves the utilization rate of the working site.
2. Frequency Conversion Control
  Ensures load-sway reduction
  Makes the load positioning faster and more accurate
2. Lifting Mechanism
  Adopts hard gear reducer
  High transmission efficiency
  Strong bearing capacity

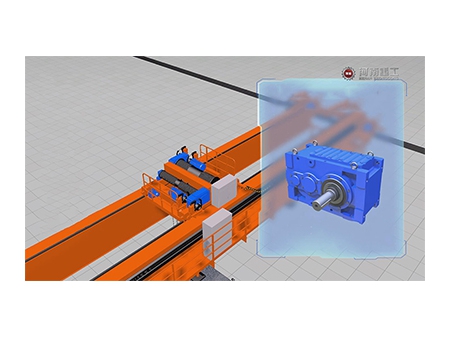

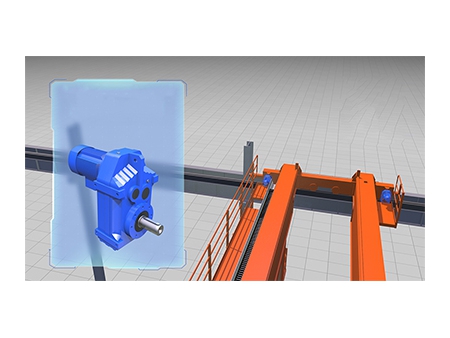

2. Travelling Mechanism
  Adopts 3 in 1 reducer
  Compact structure, low noise, no oil leak, and long lifetime
  Realizes no maintenance
2. Trolley Maintenance Platform
  Ensures electrical installation and mechanism repair
  The span of the work range>600mm
  The protection railing height is 1100mm
  With anti-slipping floor

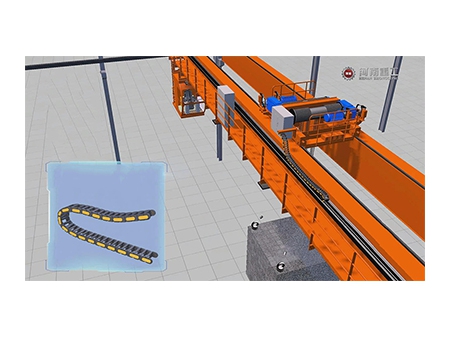

2. Tow Chain Type Power Supply
  Trolley power supply adopts tow chain type, which protects cables and improves lifetime.

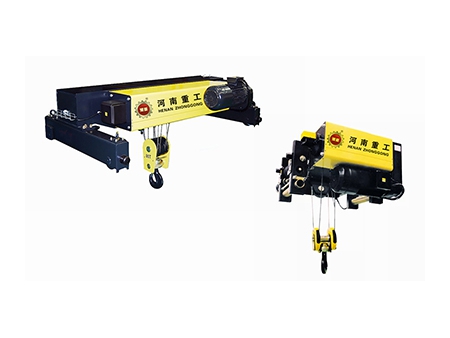

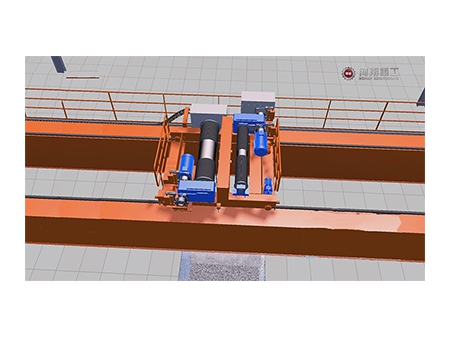

2. Hoist & Trolley
  Reducer with aluminum alloy housingSteady running and low noise
  Lifetime lubricating
  Double-disk electromagnetic brake
2. Components
  All components use the well-known brands such as ABB, Siemens, Schneider.
